| Mfr. #: | SN74LS244NS |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Buffers & Line Drivers Octal Buff/Line Drvr W/3-State Otpt ALT 595-SN74LS244N |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | SN74LS244NS Datasheet |
Product belongs to the 74LS series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.028254 oz SMD/SMT Mounting-Style SOP-20 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 4.75 ~ 5.25 V Supplier device package: 20-SO 2 element Buffer/Line Driver, Non-Inverting logic type 4 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 18 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 15 mA 24 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 8 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

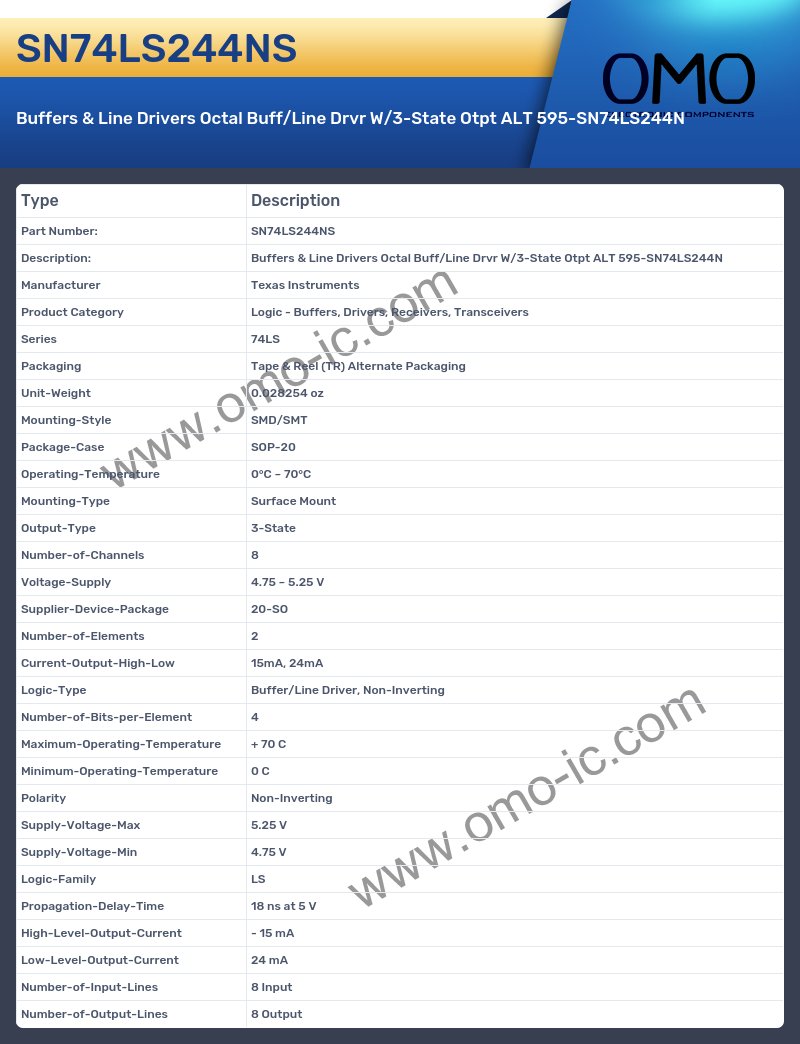

SN74LS244NS Specifications
