SN74LS245DW

SN74LS245DW Overview

Product belongs to the 74LS series. This product is categorized as Standard Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State Product function is Octal Bus Transceiver. Number of channels: 8 Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 20-SOIC 8 is 8. 1 element Transceiver, Non-Inverting logic type 8 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 12 ns is 23 microseconds. TTL is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 15 mA 24 mA low-level output current

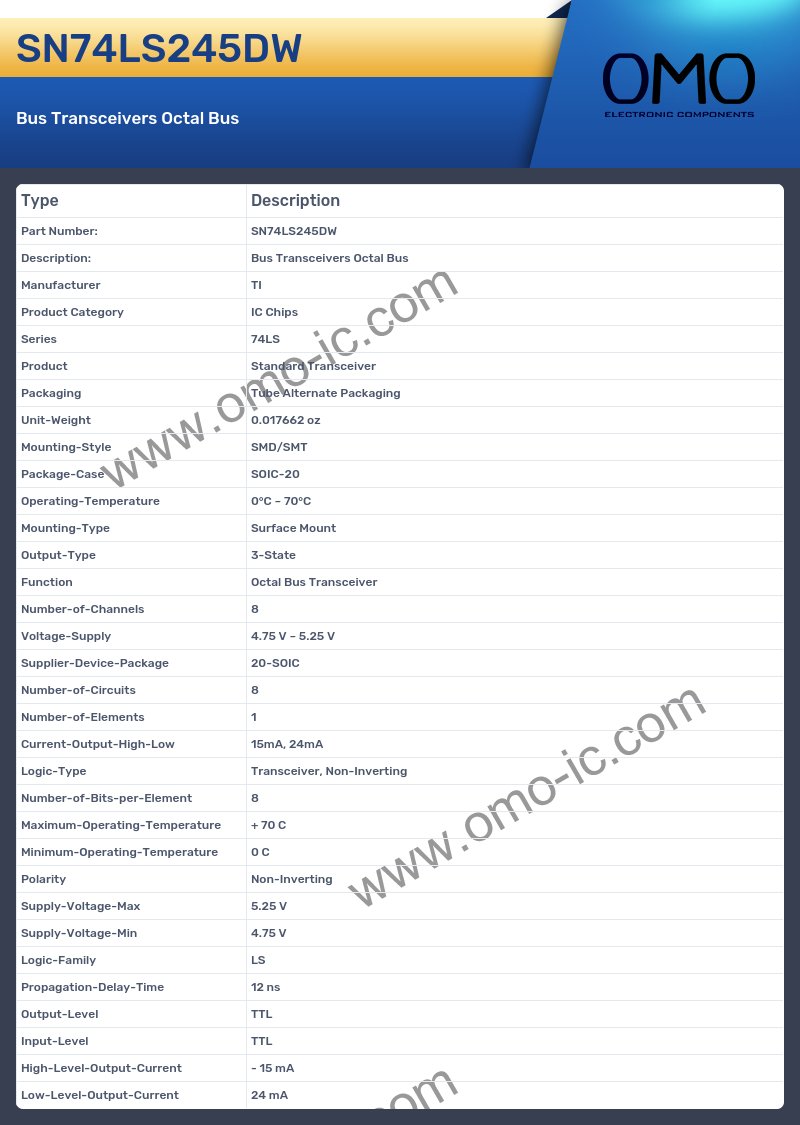

SN74LS245DW Image

SN74LS245DW Specifications

• Manufacturer TI
• Product Category IC Chips
• Series 74LS
• Product Standard Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.017662 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Function Octal Bus Transceiver
• Number-of-Channels 8
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 20-SOIC
• Number-of-Circuits 8
• Number-of-Elements 1
• Current-Output-High-Low 15mA, 24mA
• Logic-Type Transceiver, Non-Inverting
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Non-Inverting
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Logic-Family LS
• Propagation-Delay-Time 12 ns
• Output-Level TTL
• Input-Level TTL
• High-Level-Output-Current - 15 mA
• Low-Level-Output-Current 24 mA
