| Mfr. #: | SN74LS368AD |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | IC BUFFER INVERT 5.25V 16SOIC |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | SN74LS368AD Datasheet |
Product belongs to the 74LS series. Tube Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State Number of channels: 5 Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 16-SOIC 2 element Buffer/Line Driver, Inverting logic type bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Inverting 85 uA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 18 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 2.6 mA 24 mA low-level output current Number-of-Input-Lines: 6 Input Number-of-Output-Lines: 6 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

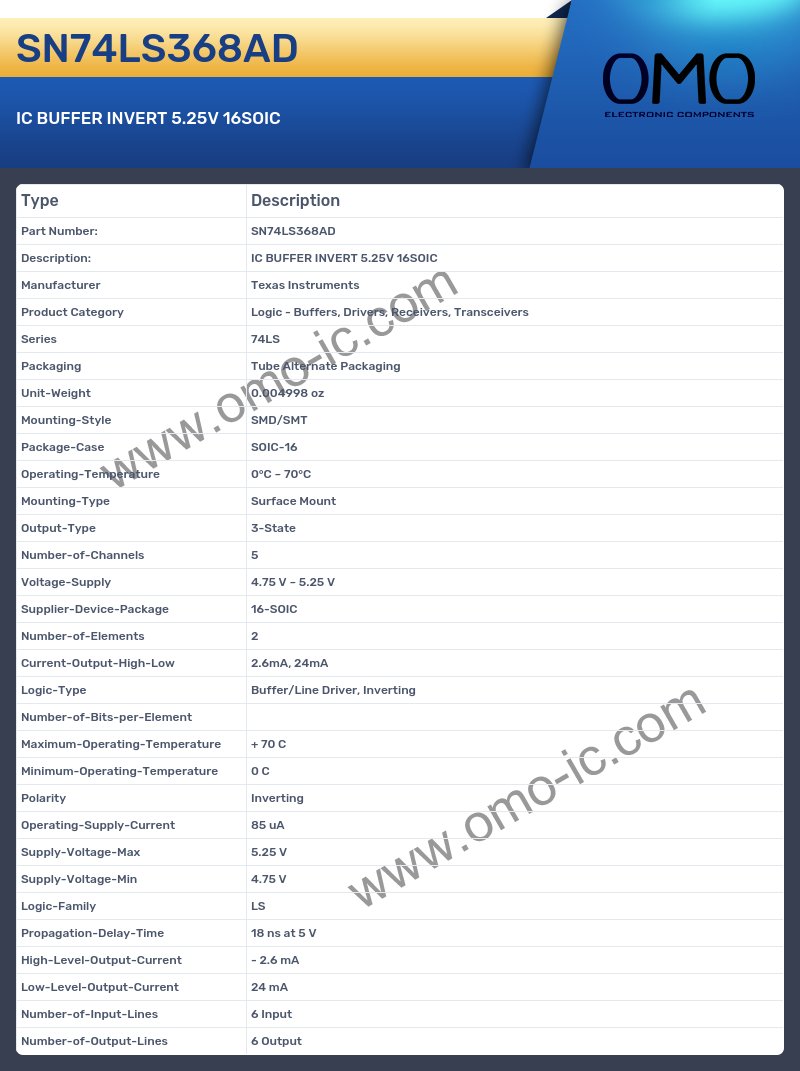

SN74LS368AD Specifications
