| Mfr. #: | SN74LS76AN |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | IC FF JK TYPE DUAL 1BIT 16DIP |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | SN74LS76AN Datasheet |
Product belongs to the - series. Tube is the packaging method for this product Product Obsolete Product function is Set(Preset) and Reset. Type: JK Type Output Type is Differential 2-elemented 1 Number of Bits per Element The 45MHz Clock Frequency; The Maximum Propagation Delay at V and Maximum CL is 20ns @ 5V, 15pF. Negative Edge triggered 400A, 8mA Current Output High and Low; The supply voltage is set to 4.75 V ~ 5.25 V. The 4mA Current - Quiescent (Iq) Operating Temperature of 0°C ~ 70°C (TA) This product has a Through Hole. Package type is 16-DIP (0.300", 7.62mm)
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

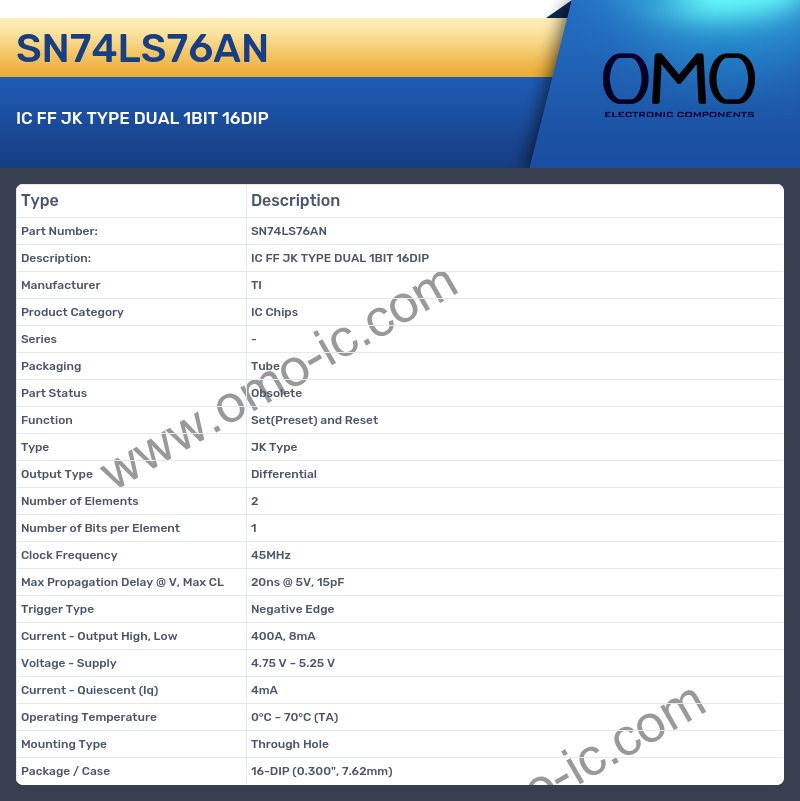

SN74LS76AN Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed -
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: What is the Part Status of the product?
Q: The Part Status of the product is Obsolete.
A: At what frequency does the Function?
Q: The product Function is Set(Preset) and Reset.
A: What is the Type of the product?
Q: The Type of the product is JK Type.
A: What is the Output Type of the product?
Q: The Output Type of the product is Differential.
A: At what frequency does the Number of Elements?
Q: The product Number of Elements is 2.
A: Is the cutoff frequency of the product Number of Bits per Element?
Q: Yes, the product's Number of Bits per Element is indeed 1
A: At what frequency does the Clock Frequency?
Q: The product Clock Frequency is 45MHz.
A: What is the Max Propagation Delay @ V, Max CL of the product?
Q: The Max Propagation Delay @ V, Max CL of the product is 20ns @ 5V, 15pF.
A: At what frequency does the Trigger Type?
Q: The product Trigger Type is Negative Edge.
A: What is the Current - Output High, Low of the product?
Q: The Current - Output High, Low of the product is 400A, 8mA.
A: Is the cutoff frequency of the product Voltage - Supply?
Q: Yes, the product's Voltage - Supply is indeed 4.75 V ~ 5.25 V
A: At what frequency does the Current - Quiescent (Iq)?
Q: The product Current - Quiescent (Iq) is 4mA.
A: What is the Operating Temperature of the product?
Q: The Operating Temperature of the product is 0°C ~ 70°C (TA).
A: At what frequency does the Mounting Type?
Q: The product Mounting Type is Through Hole.
A: Is the cutoff frequency of the product Package / Case?
Q: Yes, the product's Package / Case is indeed 16-DIP (0.300", 7.62mm)
