SN74LVC1G74DQER

SN74LVC1G74DQER Overview

Product belongs to the 74LVC series. Type: D-Type Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style X2SON-8 The CMOS for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Differential Product function is Set(Preset) and Reset. Voltage Supply Range: 1.65 V ~ 5.5 V 2 is 8. 200MHz is 26GHz. 1 element D-Type Flip-Flop logic type 1 bits per element Positive Edge trigger type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Inverting Non-Inverting Maximum supply voltage of 5.5 V Minimum supply voltage is 1.65 V SN74 logic type 4.4 ns is 23 microseconds. High-Level-Output-Current of - 16 mA 16 mA low-level output current Number-of-Input-Lines: 1 Number-of-Output-Lines: 1

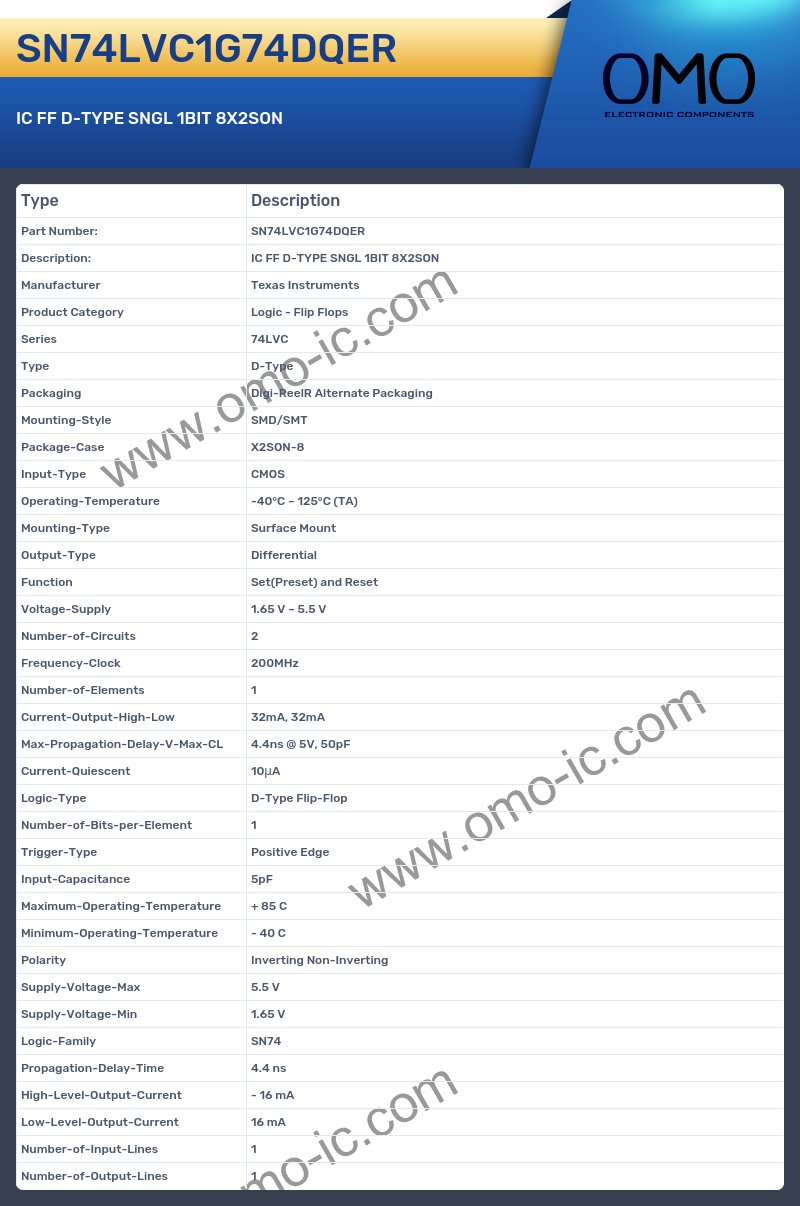

SN74LVC1G74DQER Image

SN74LVC1G74DQER Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Flip Flops
• Series 74LVC
• Type D-Type
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case X2SON-8
• Input-Type CMOS
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Differential
• Function Set(Preset) and Reset
• Voltage-Supply 1.65 V ~ 5.5 V
• Number-of-Circuits 2
• Frequency-Clock 200MHz
• Number-of-Elements 1
• Current-Output-High-Low 32mA, 32mA
• Max-Propagation-Delay-V-Max-CL 4.4ns @ 5V, 50pF
• Current-Quiescent 10μA
• Logic-Type D-Type Flip-Flop
• Number-of-Bits-per-Element 1
• Trigger-Type Positive Edge
• Input-Capacitance 5pF
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Inverting Non-Inverting
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.65 V
• Logic-Family SN74
• Propagation-Delay-Time 4.4 ns
• High-Level-Output-Current - 16 mA
• Low-Level-Output-Current 16 mA
• Number-of-Input-Lines 1
• Number-of-Output-Lines 1
