SN74LVC2G14IDCKRQ1

SN74LVC2G14IDCKRQ1 Overview

Product belongs to the Automotive, AEC-Q100, 74LVC series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000988 oz SMD/SMT Mounting-Style SC-70-6 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 1.65 V ~ 5.5 V Supplier device package: SC-70-6 2 is 8. 10μA maximum quiescent current. Inverter logic type 0.3 V ~ 1.4 V is a Logic-Level-Low; 1.4 V ~ 3.7 V is the Logic-Level-High Maximum operating temperature of + 85 C Maximum supply voltage of 5.5 V Minimum supply voltage is 1.65 V 74LVC logic type High-Level-Output-Current of - 32 mA 32 mA low-level output current

SN74LVC2G14IDCKRQ1 Image

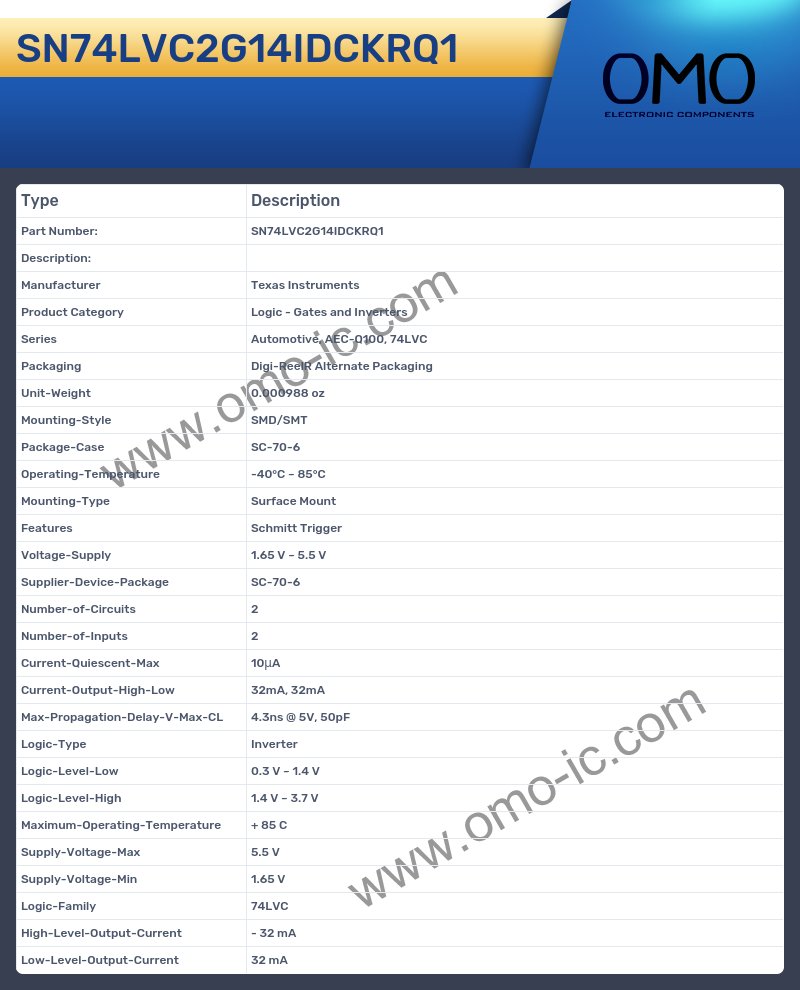

SN74LVC2G14IDCKRQ1 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series Automotive, AEC-Q100, 74LVC
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000988 oz
• Mounting-Style SMD/SMT
• Package-Case SC-70-6
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Schmitt Trigger
• Voltage-Supply 1.65 V ~ 5.5 V
• Supplier-Device-Package SC-70-6
• Number-of-Circuits 2
• Number-of-Inputs 2
• Current-Quiescent-Max 10μA
• Current-Output-High-Low 32mA, 32mA
• Max-Propagation-Delay-V-Max-CL 4.3ns @ 5V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 0.3 V ~ 1.4 V
• Logic-Level-High 1.4 V ~ 3.7 V
• Maximum-Operating-Temperature + 85 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.65 V
• Logic-Family 74LVC
• High-Level-Output-Current - 32 mA
• Low-Level-Output-Current 32 mA
