| Mfr. #: | SN74LVC3G06DCTR |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Buffers & Line Drivers Triple Invert w/ OD |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | SN74LVC3G06DCTR Datasheet |
Product belongs to the 74LVC series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000825 oz SMD/SMT Mounting-Style SSOP-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Open Drain Number of channels: 3 Voltage Supply Range: 1.65 V ~ 5.5 V Supplier device package: SM8 3 is 8. 10μA maximum quiescent current. Inverter logic type 0.7 V ~ 0.8 V is a Logic-Level-Low; 1.7 V ~ 2 V is the Logic-Level-High Maximum operating temperature of + 85 C Minimum operating temperature: - 45 C Polarity: Inverting Maximum supply voltage of 5.5 V Minimum supply voltage is 1.65 V LVC logic type 3.4 ns at 3.3 V 2.9 ns at 5 V is 23 microseconds. 32 mA low-level output current Number-of-Input-Lines: 3 Input Number-of-Output-Lines: 3 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

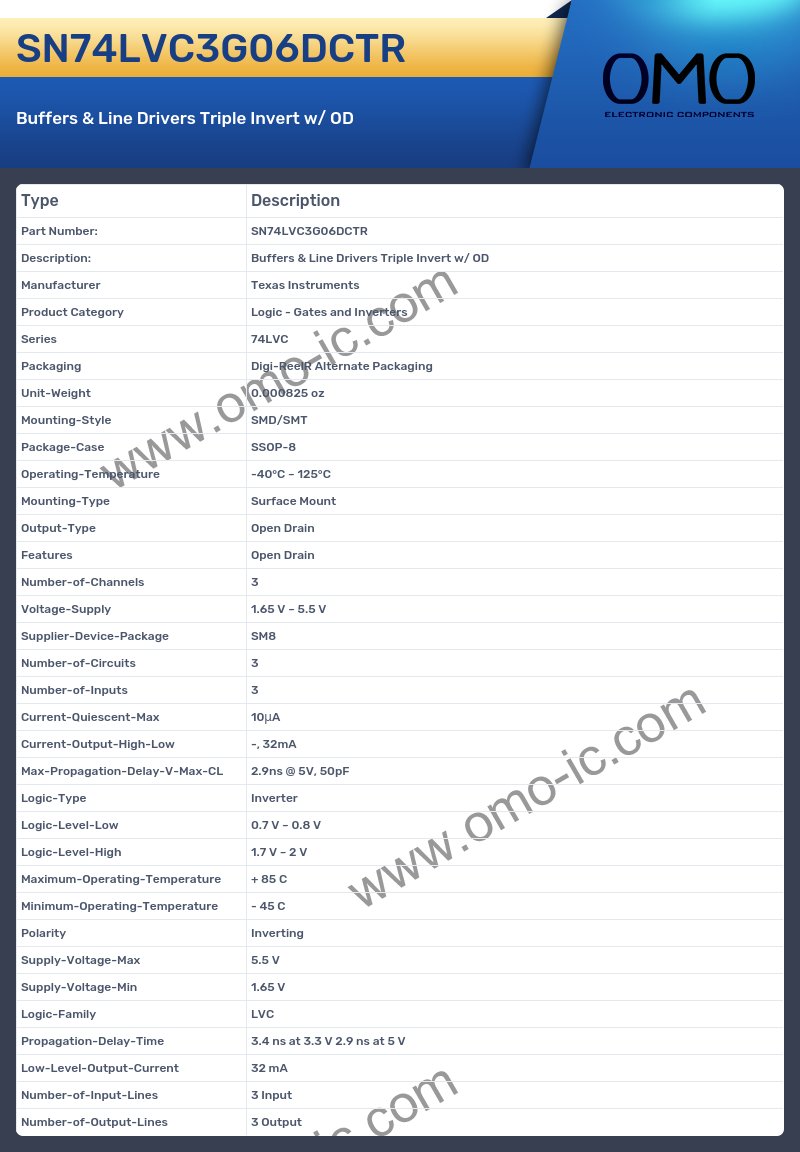

SN74LVC3G06DCTR Specifications
A: At what frequency does the Series?
Q: The product Series is 74LVC.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.000825 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SSOP-8
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 125°C.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: Is the cutoff frequency of the product Output-Type?
Q: Yes, the product's Output-Type is indeed Open Drain
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 3
A: Is the cutoff frequency of the product Voltage-Supply?
Q: Yes, the product's Voltage-Supply is indeed 1.65 V ~ 5.5 V
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed SM8
A: Is the cutoff frequency of the product Number-of-Circuits?
Q: Yes, the product's Number-of-Circuits is indeed 3
A: Is the cutoff frequency of the product Current-Quiescent-Max?
Q: Yes, the product's Current-Quiescent-Max is indeed 10μA
A: What is the Logic-Type of the product?
Q: The Logic-Type of the product is Inverter.
A: Is the cutoff frequency of the product Logic-Level-Low?
Q: Yes, the product's Logic-Level-Low is indeed 0.7 V ~ 0.8 V
A: At what frequency does the Logic-Level-High?
Q: The product Logic-Level-High is 1.7 V ~ 2 V.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 85 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 45 C.
A: At what frequency does the Polarity?
Q: The product Polarity is Inverting.
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 5.5 V.
A: Is the cutoff frequency of the product Supply-Voltage-Min?
Q: Yes, the product's Supply-Voltage-Min is indeed 1.65 V
A: Is the cutoff frequency of the product Logic-Family?
Q: Yes, the product's Logic-Family is indeed LVC
A: Is the cutoff frequency of the product Propagation-Delay-Time?
Q: Yes, the product's Propagation-Delay-Time is indeed 3.4 ns at 3.3 V 2.9 ns at 5 V
A: Is the cutoff frequency of the product Low-Level-Output-Current?
Q: Yes, the product's Low-Level-Output-Current is indeed 32 mA
A: Is the cutoff frequency of the product Number-of-Input-Lines?
Q: Yes, the product's Number-of-Input-Lines is indeed 3 Input
A: At what frequency does the Number-of-Output-Lines?
Q: The product Number-of-Output-Lines is 3 Output.
