| Mfr. #: | STD25NF10LT4 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | MOSFET N-CH 100V 25A DPAK |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STD25NF10LT4 Datasheet |
Product belongs to the STripFET II series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: D-Pak Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 100V This product has an 1710pF @ 25V value of 300pF @ 25V. This product's Logic Level Gate. 25A (Tc) continuous drain-ID current at 25°C; This product has an 35 mOhm @ 12.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 100 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 20 ns of 16 ns. This product has a 40 ns of 16 ns. This product's 16 V. The ID of continuous drain current is 25 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. The 30 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 58 ns This product has a 20 ns. This product features a 24 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

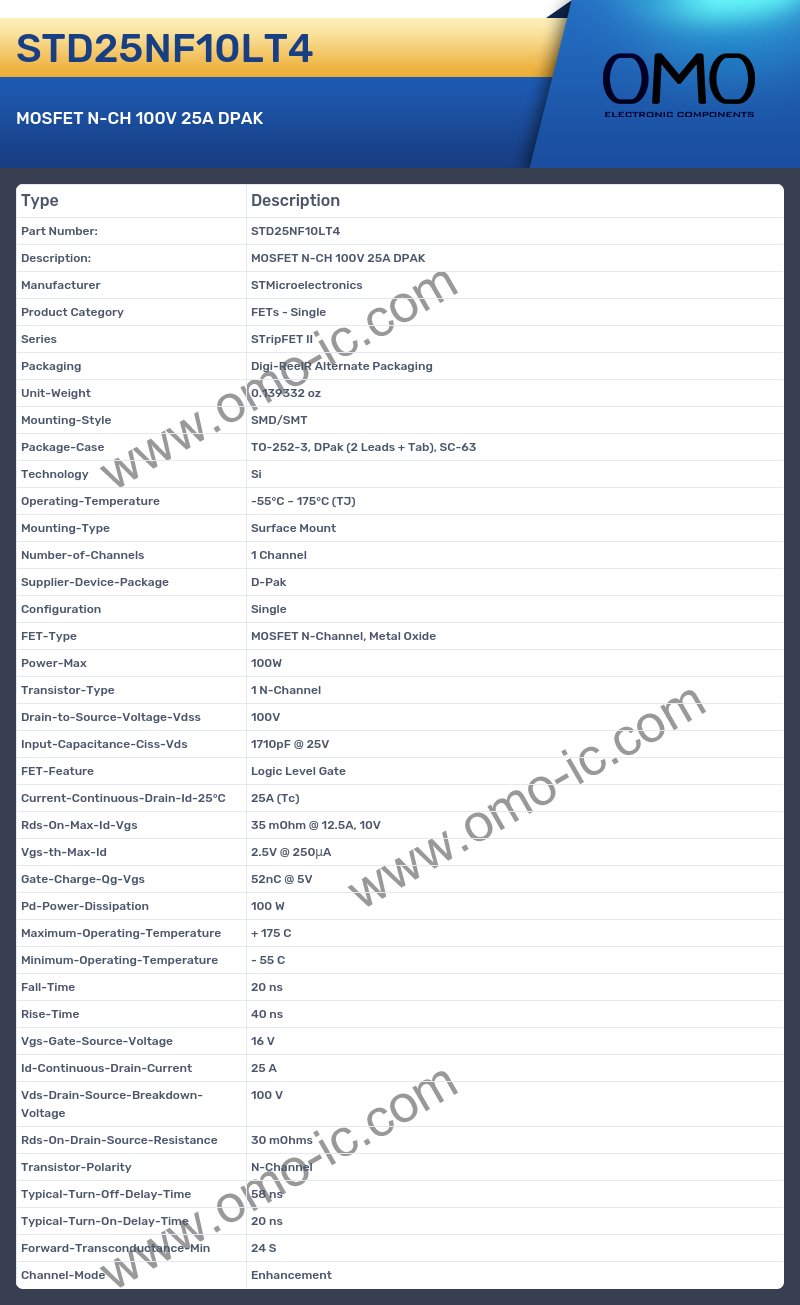

STD25NF10LT4 Specifications
A: At what frequency does the Series?
Q: The product Series is STripFET II.
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.139332 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-252-3, DPak (2 Leads + Tab), SC-63
A: At what frequency does the Technology?
Q: The product Technology is Si.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -55°C ~ 175°C (TJ)
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 1 Channel.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed D-Pak
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the FET-Type of the product?
Q: The FET-Type of the product is MOSFET N-Channel, Metal Oxide.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 1 N-Channel.
A: At what frequency does the Drain-to-Source-Voltage-Vdss?
Q: The product Drain-to-Source-Voltage-Vdss is 100V.
A: What is the Input-Capacitance-Ciss-Vds of the product?
Q: The Input-Capacitance-Ciss-Vds of the product is 1710pF @ 25V.
A: Is the cutoff frequency of the product FET-Feature?
Q: Yes, the product's FET-Feature is indeed Logic Level Gate
A: Is the cutoff frequency of the product Current-Continuous-Drain-Id-25°C?
Q: Yes, the product's Current-Continuous-Drain-Id-25°C is indeed 25A (Tc)
A: At what frequency does the Rds-On-Max-Id-Vgs?
Q: The product Rds-On-Max-Id-Vgs is 35 mOhm @ 12.5A, 10V.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 100 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 175 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: Is the cutoff frequency of the product Fall-Time?
Q: Yes, the product's Fall-Time is indeed 20 ns
A: At what frequency does the Rise-Time?
Q: The product Rise-Time is 40 ns.
A: At what frequency does the Vgs-Gate-Source-Voltage?
Q: The product Vgs-Gate-Source-Voltage is 16 V.
A: Is the cutoff frequency of the product Id-Continuous-Drain-Current?
Q: Yes, the product's Id-Continuous-Drain-Current is indeed 25 A
A: Is the cutoff frequency of the product Vds-Drain-Source-Breakdown-Voltage?
Q: Yes, the product's Vds-Drain-Source-Breakdown-Voltage is indeed 100 V
A: Is the cutoff frequency of the product Rds-On-Drain-Source-Resistance?
Q: Yes, the product's Rds-On-Drain-Source-Resistance is indeed 30 mOhms
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is N-Channel.
A: What is the Typical-Turn-Off-Delay-Time of the product?
Q: The Typical-Turn-Off-Delay-Time of the product is 58 ns.
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 20 ns.
A: At what frequency does the Forward-Transconductance-Min?
Q: The product Forward-Transconductance-Min is 24 S.
A: At what frequency does the Channel-Mode?
Q: The product Channel-Mode is Enhancement.
