| Mfr. #: | STD45N10F7 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | MOSFET N-CH 100V 45A DPAK |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STD45N10F7 Datasheet |
Product belongs to the N-channel STripFET series. Reel is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 60 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 8 ns of 16 ns. This product has a 17 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 45 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. This product has a 4.5 V Vgs-th gate-source threshold voltage for efficient power management. The 18 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 24 ns This product has a 15 ns. Qg-Gate-Charge is 25 nC.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

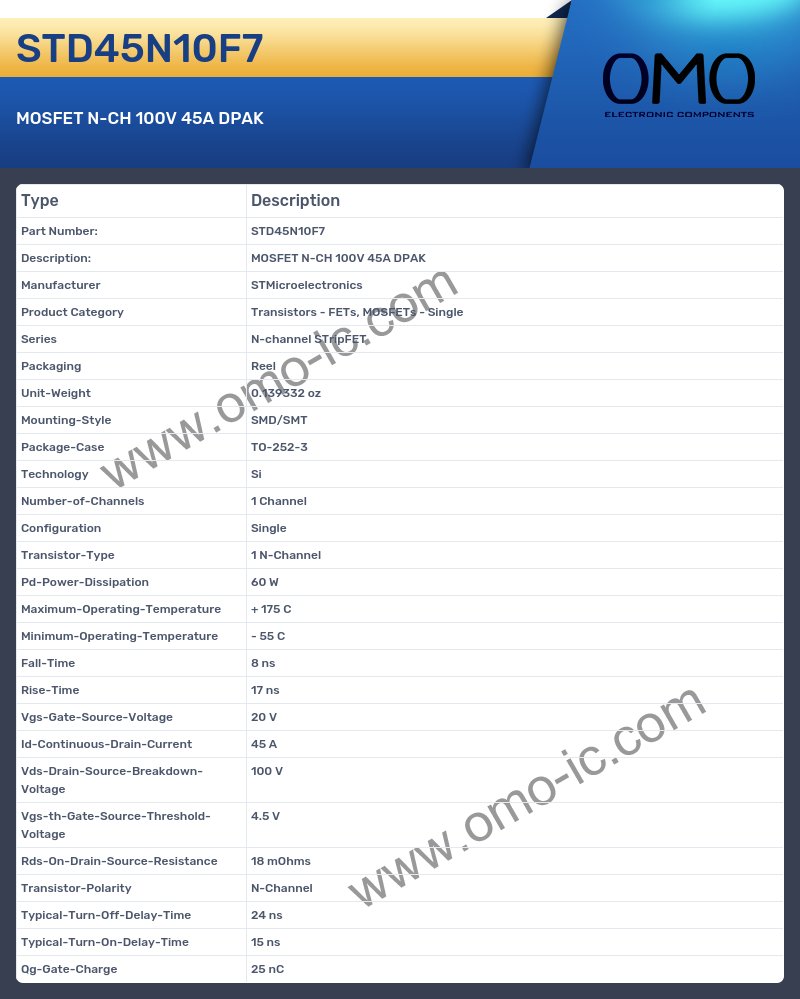

STD45N10F7 Specifications
