| Mfr. #: | STD65N3LLH5 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | MOSFET N CH 30V 65A DPAK |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STD65N3LLH5 Datasheet |
Product belongs to the STripFET V series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: DPAK Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 30V This product has an 1290pF @ 25V value of 300pF @ 25V. This product's Standard. 65A (Tc) continuous drain-ID current at 25°C; This product has an 6.9 mOhm @ 32.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 50 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 6 ns of 16 ns. This product has a 11.2 ns of 16 ns. This product's 22 V. The ID of continuous drain current is 65 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. This product has a 1.8 V Vgs-th gate-source threshold voltage for efficient power management. The 6 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 32.4 ns This product has a 8.6 ns. Qg-Gate-Charge is 8 nC.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

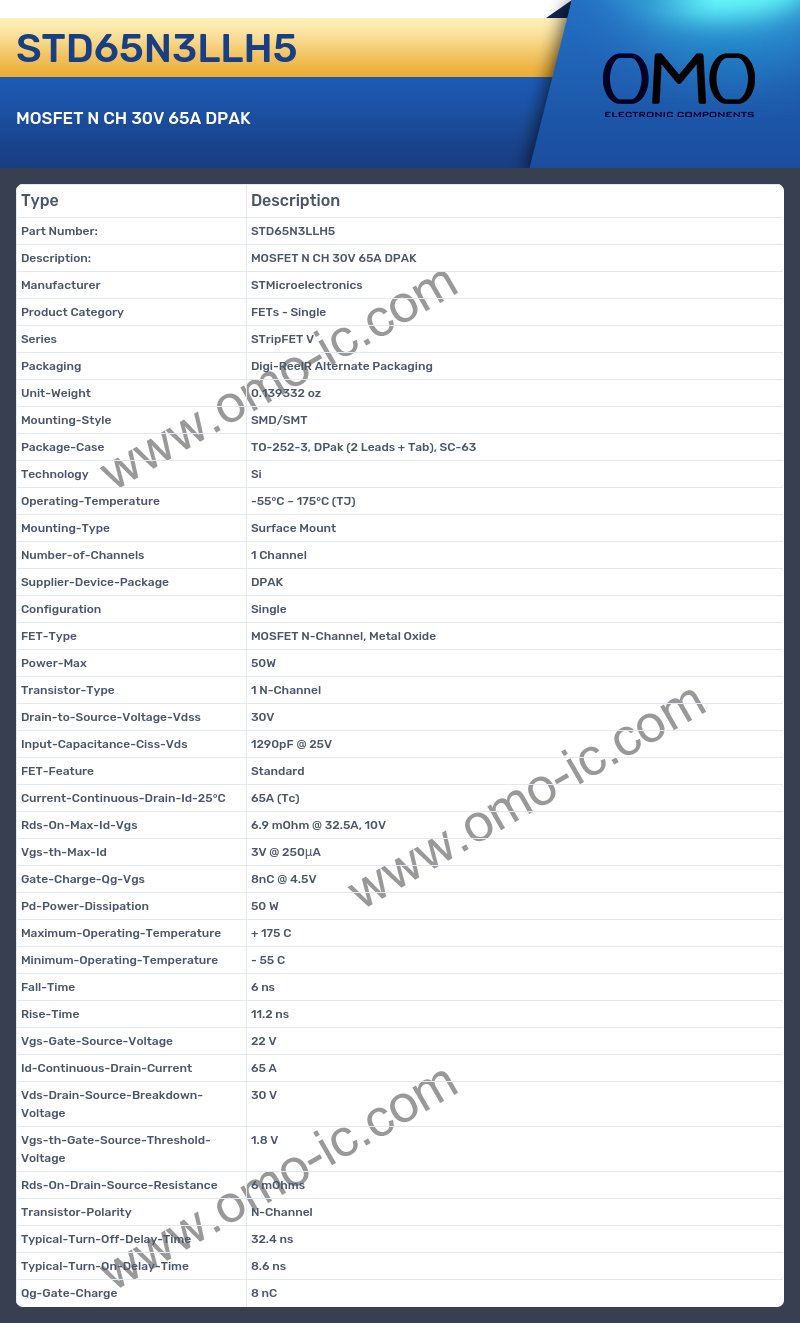

STD65N3LLH5 Specifications
A: What is the Series of the product?
Q: The Series of the product is STripFET V.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.139332 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-252-3, DPak (2 Leads + Tab), SC-63.
A: At what frequency does the Technology?
Q: The product Technology is Si.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -55°C ~ 175°C (TJ).
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 1 Channel.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is DPAK.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the FET-Type of the product?
Q: The FET-Type of the product is MOSFET N-Channel, Metal Oxide.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 1 N-Channel.
A: Is the cutoff frequency of the product Drain-to-Source-Voltage-Vdss?
Q: Yes, the product's Drain-to-Source-Voltage-Vdss is indeed 30V
A: Is the cutoff frequency of the product Input-Capacitance-Ciss-Vds?
Q: Yes, the product's Input-Capacitance-Ciss-Vds is indeed 1290pF @ 25V
A: Is the cutoff frequency of the product FET-Feature?
Q: Yes, the product's FET-Feature is indeed Standard
A: What is the Current-Continuous-Drain-Id-25°C of the product?
Q: The Current-Continuous-Drain-Id-25°C of the product is 65A (Tc).
A: At what frequency does the Rds-On-Max-Id-Vgs?
Q: The product Rds-On-Max-Id-Vgs is 6.9 mOhm @ 32.5A, 10V.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 50 W
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 175 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 6 ns.
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 11.2 ns.
A: At what frequency does the Vgs-Gate-Source-Voltage?
Q: The product Vgs-Gate-Source-Voltage is 22 V.
A: Is the cutoff frequency of the product Id-Continuous-Drain-Current?
Q: Yes, the product's Id-Continuous-Drain-Current is indeed 65 A
A: What is the Vds-Drain-Source-Breakdown-Voltage of the product?
Q: The Vds-Drain-Source-Breakdown-Voltage of the product is 30 V.
A: At what frequency does the Vgs-th-Gate-Source-Threshold-Voltage?
Q: The product Vgs-th-Gate-Source-Threshold-Voltage is 1.8 V.
A: Is the cutoff frequency of the product Rds-On-Drain-Source-Resistance?
Q: Yes, the product's Rds-On-Drain-Source-Resistance is indeed 6 mOhms
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is N-Channel.
A: At what frequency does the Typical-Turn-Off-Delay-Time?
Q: The product Typical-Turn-Off-Delay-Time is 32.4 ns.
A: Is the cutoff frequency of the product Typical-Turn-On-Delay-Time?
Q: Yes, the product's Typical-Turn-On-Delay-Time is indeed 8.6 ns
A: What is the Qg-Gate-Charge of the product?
Q: The Qg-Gate-Charge of the product is 8 nC.
