STF26NM60N-H

STF26NM60N-H Overview

Product belongs to the STF26NM60N-H series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Transistor type: 1 N-Channel Power-off control: 30 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 50 ns of 16 ns. This product has a 25 ns of 16 ns. This product's 25 V. The ID of continuous drain current is 20 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. The 135 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 85 ns This product has a 13 ns. Qg-Gate-Charge is 60 nC.

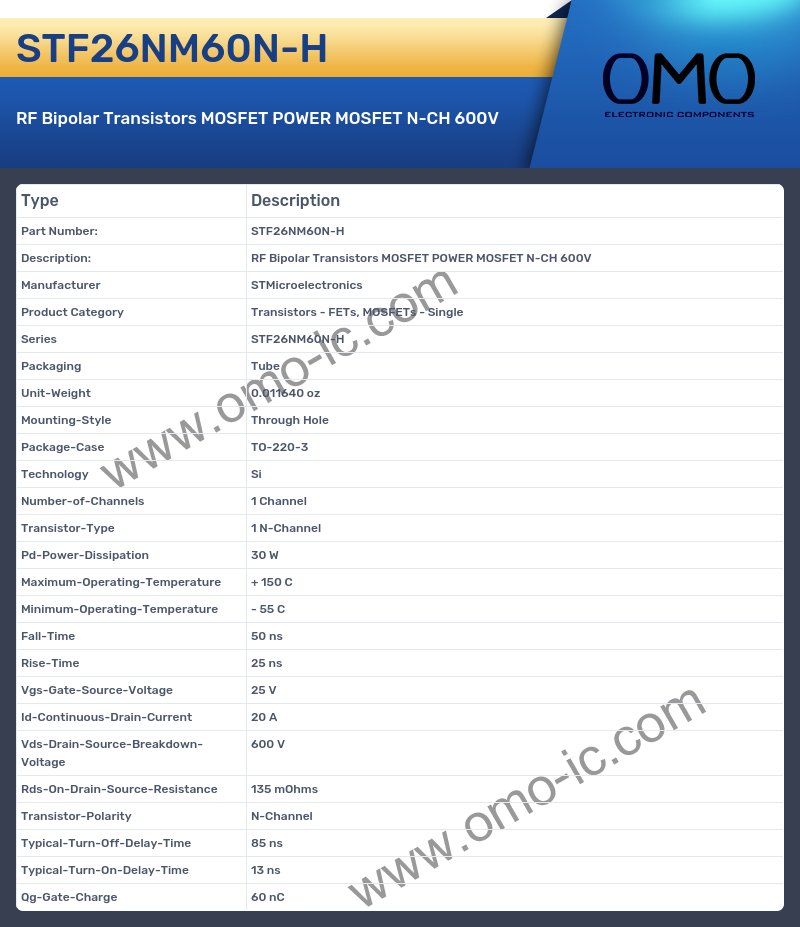

STF26NM60N-H Image

STF26NM60N-H Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series STF26NM60N-H
• Packaging Tube
• Unit-Weight 0.011640 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Number-of-Channels 1 Channel
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 30 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 50 ns
• Rise-Time 25 ns
• Vgs-Gate-Source-Voltage 25 V
• Id-Continuous-Drain-Current 20 A
• Vds-Drain-Source-Breakdown-Voltage 600 V
• Rds-On-Drain-Source-Resistance 135 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 85 ns
• Typical-Turn-On-Delay-Time 13 ns
• Qg-Gate-Charge 60 nC
