| Mfr. #: | STF7NM80 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | MOSFET N-CH 800V 6.5A TO-220FP |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STF7NM80 Datasheet |
Product belongs to the N-channel MDmesh series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 25 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 10 ns of 16 ns. This product has a 8 ns of 16 ns. This product's 30 V. The ID of continuous drain current is 6.5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 800 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 1.05 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 35 ns This product has a 20 ns. Qg-Gate-Charge is 18 nC. This product features a 4 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

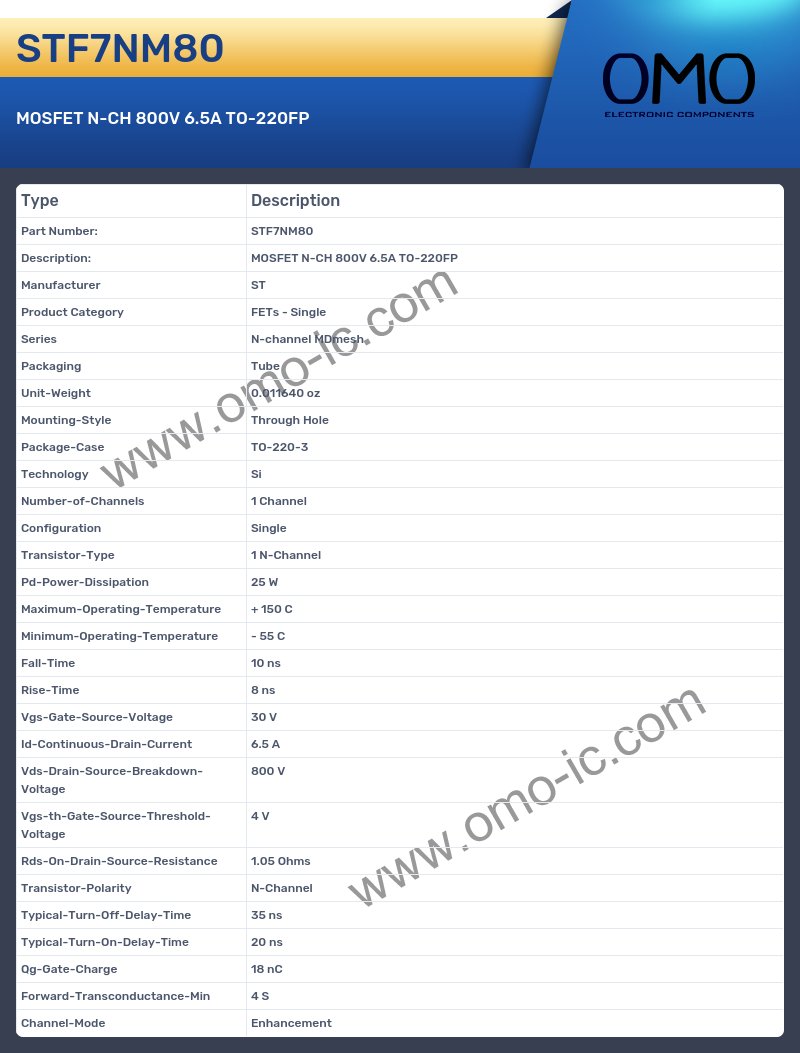

STF7NM80 Specifications
A: At what frequency does the Series?
Q: The product Series is N-channel MDmesh.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.011640 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-220-3.
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 1 Channel
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed 1 N-Channel
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 25 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: Is the cutoff frequency of the product Fall-Time?
Q: Yes, the product's Fall-Time is indeed 10 ns
A: Is the cutoff frequency of the product Rise-Time?
Q: Yes, the product's Rise-Time is indeed 8 ns
A: At what frequency does the Vgs-Gate-Source-Voltage?
Q: The product Vgs-Gate-Source-Voltage is 30 V.
A: What is the Id-Continuous-Drain-Current of the product?
Q: The Id-Continuous-Drain-Current of the product is 6.5 A.
A: What is the Vds-Drain-Source-Breakdown-Voltage of the product?
Q: The Vds-Drain-Source-Breakdown-Voltage of the product is 800 V.
A: Is the cutoff frequency of the product Vgs-th-Gate-Source-Threshold-Voltage?
Q: Yes, the product's Vgs-th-Gate-Source-Threshold-Voltage is indeed 4 V
A: What is the Rds-On-Drain-Source-Resistance of the product?
Q: The Rds-On-Drain-Source-Resistance of the product is 1.05 Ohms.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is N-Channel.
A: Is the cutoff frequency of the product Typical-Turn-Off-Delay-Time?
Q: Yes, the product's Typical-Turn-Off-Delay-Time is indeed 35 ns
A: Is the cutoff frequency of the product Typical-Turn-On-Delay-Time?
Q: Yes, the product's Typical-Turn-On-Delay-Time is indeed 20 ns
A: What is the Qg-Gate-Charge of the product?
Q: The Qg-Gate-Charge of the product is 18 nC.
A: What is the Forward-Transconductance-Min of the product?
Q: The Forward-Transconductance-Min of the product is 4 S.
A: What is the Channel-Mode of the product?
Q: The Channel-Mode of the product is Enhancement.
