STG3696EQTR

STG3696EQTR Overview

Product belongs to the STG3696 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000247 oz SMD/SMT Mounting-Style QFN-10 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Audio, USB Switch. Supplier device package: 10-QFN (1.8x1.4) - is 8. Voltage supply source: Analog and digital Single Supply Configuration 2 x SPDT Circuit type: 2 x SPDT 5 Ohm maximum on-state resistance Voltage supply range: 2.7 V ~ 4.5 V This product has a - of 200μA. The - Power-off control: 1.12 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.7 V to 4.5 V supply voltage for reliable performance. Maximum supply current: 36 uA Maximum supply voltage of 4.5 V Minimum supply voltage is 2.7 V Single Supply supply type Max on-resistance of 5 Ohms Maximum off time: 5 us 2 Switch switch functionality Maximum on-time: 85 us The maximum switch voltage for this product is 3 V

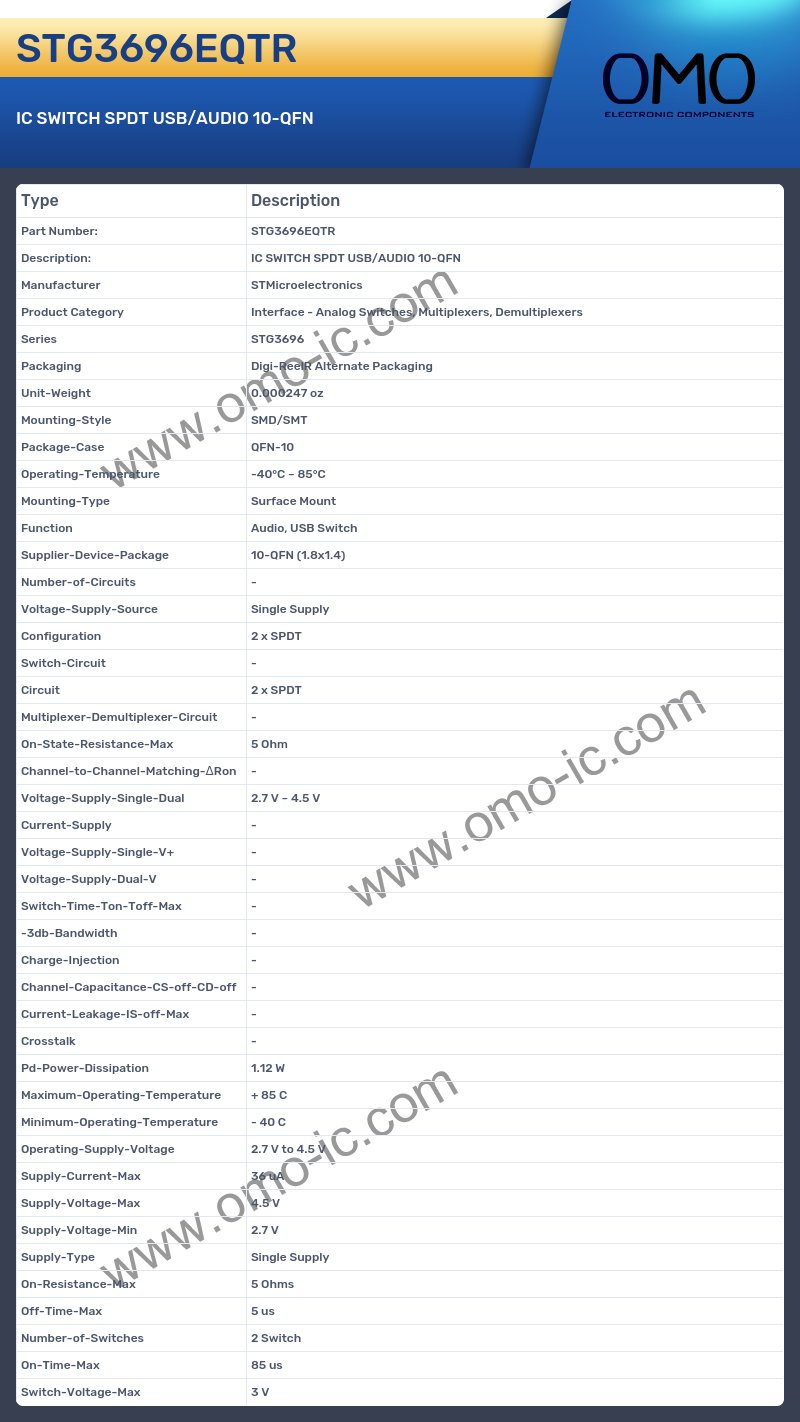

STG3696EQTR Image

STG3696EQTR Specifications

• Manufacturer STMicroelectronics
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series STG3696
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000247 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-10
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function Audio, USB Switch
• Supplier-Device-Package 10-QFN (1.8x1.4)
• Number-of-Circuits -
• Voltage-Supply-Source Single Supply
• Configuration 2 x SPDT
• Switch-Circuit -
• Circuit 2 x SPDT
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max 5 Ohm
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual 2.7 V ~ 4.5 V
• Current-Supply -
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Pd-Power-Dissipation 1.12 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.7 V to 4.5 V
• Supply-Current-Max 36 uA
• Supply-Voltage-Max 4.5 V
• Supply-Voltage-Min 2.7 V
• Supply-Type Single Supply
• On-Resistance-Max 5 Ohms
• Off-Time-Max 5 us
• Number-of-Switches 2 Switch
• On-Time-Max 85 us
• Switch-Voltage-Max 3 V
