STGB20NB32LZ

STGB20NB32LZ Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product TO-263-3, D2Pak (2 Leads + Tab), TO-263AB The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D2PAK Maximum current collector Ic is 40A . Maximum collector-emitter breakdown voltage of 375V The Current-Collector-Pulsed-Icm is rated at 80A. The Vce-on-Max-Vge-Ic is rated at 2V @ 4.5V, 20A. 2.3μs/11.5μs Td-on-off at 25°C; Operating temperature: 250V, 20A, 1 kOhm, 4.5V

STGB20NB32LZ Image

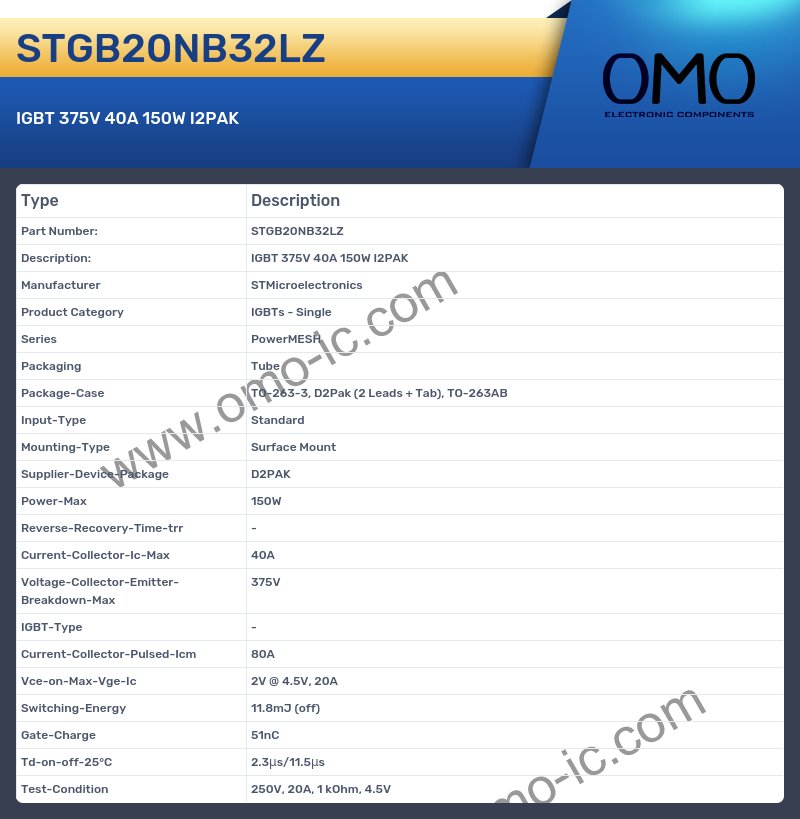

STGB20NB32LZ Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Input-Type Standard
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Power-Max 150W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 40A
• Voltage-Collector-Emitter-Breakdown-Max 375V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 80A
• Vce-on-Max-Vge-Ic 2V @ 4.5V, 20A
• Switching-Energy 11.8mJ (off)
• Gate-Charge 51nC
• Td-on-off-25°C 2.3μs/11.5μs
• Test-Condition 250V, 20A, 1 kOhm, 4.5V

STGB20NB32LZ FAQ

• A: Is the cutoff frequency of the product Series?

  Q: Yes, the product's Series is indeed PowerMESH

• A: Is the cutoff frequency of the product Packaging?

  Q: Yes, the product's Packaging is indeed Tube

• A: What is the Package-Case of the product?

  Q: The Package-Case of the product is TO-263-3, D2Pak (2 Leads + Tab), TO-263AB.

• A: Is the cutoff frequency of the product Input-Type?

  Q: Yes, the product's Input-Type is indeed Standard

• A: At what frequency does the Mounting-Type?

  Q: The product Mounting-Type is Surface Mount.

• A: At what frequency does the Supplier-Device-Package?

  Q: The product Supplier-Device-Package is D2PAK.

• A: Is the cutoff frequency of the product Current-Collector-Ic-Max?

  Q: Yes, the product's Current-Collector-Ic-Max is indeed 40A

• A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?

  Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 375V

• A: At what frequency does the Current-Collector-Pulsed-Icm?

  Q: The product Current-Collector-Pulsed-Icm is 80A.

• A: At what frequency does the Vce-on-Max-Vge-Ic?

  Q: The product Vce-on-Max-Vge-Ic is 2V @ 4.5V, 20A.

• A: At what frequency does the Td-on-off-25°C?

  Q: The product Td-on-off-25°C is 2.3μs/11.5μs.

• A: What is the Test-Condition of the product?

  Q: The Test-Condition of the product is 250V, 20A, 1 kOhm, 4.5V.
