STGB6NC60HD-1

STGB6NC60HD-1 Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product TO-262-3 Long Leads, I2Pak, TO-262AA The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: I2PAK Maximum current collector Ic is 15A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 21A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 3A. 12ns/76ns Td-on-off at 25°C; Operating temperature: 390V, 3A, 10 Ohm, 15V

STGB6NC60HD-1 Image

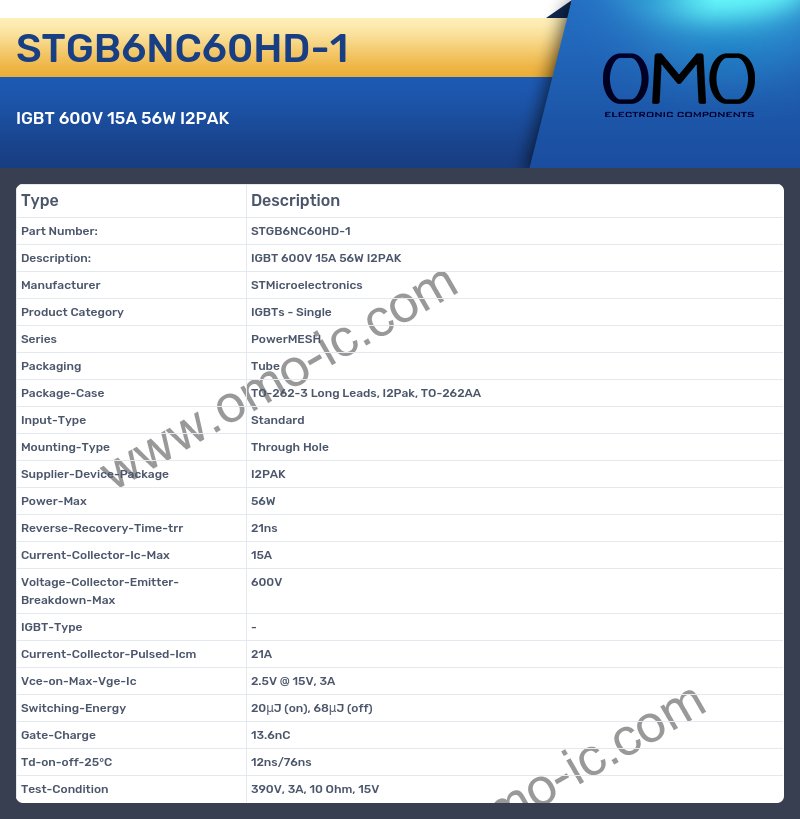

STGB6NC60HD-1 Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Package-Case TO-262-3 Long Leads, I2Pak, TO-262AA
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package I2PAK
• Power-Max 56W
• Reverse-Recovery-Time-trr 21ns
• Current-Collector-Ic-Max 15A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 21A
• Vce-on-Max-Vge-Ic 2.5V @ 15V, 3A
• Switching-Energy 20μJ (on), 68μJ (off)
• Gate-Charge 13.6nC
• Td-on-off-25°C 12ns/76ns
• Test-Condition 390V, 3A, 10 Ohm, 15V
