STGF15H60DF

STGF15H60DF Overview

Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 Full Pack The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220FP Configuration Single Maximum current collector Ic is 30A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 60A. The Vce-on-Max-Vge-Ic is rated at 2V @ 15V, 15A. 24.5ns/118ns Td-on-off at 25°C; Operating temperature: 400V, 15A, 10 Ohm, 15V Power-off control: 30 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 1.6 V 30 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 15 A Collector Current of Continuity;

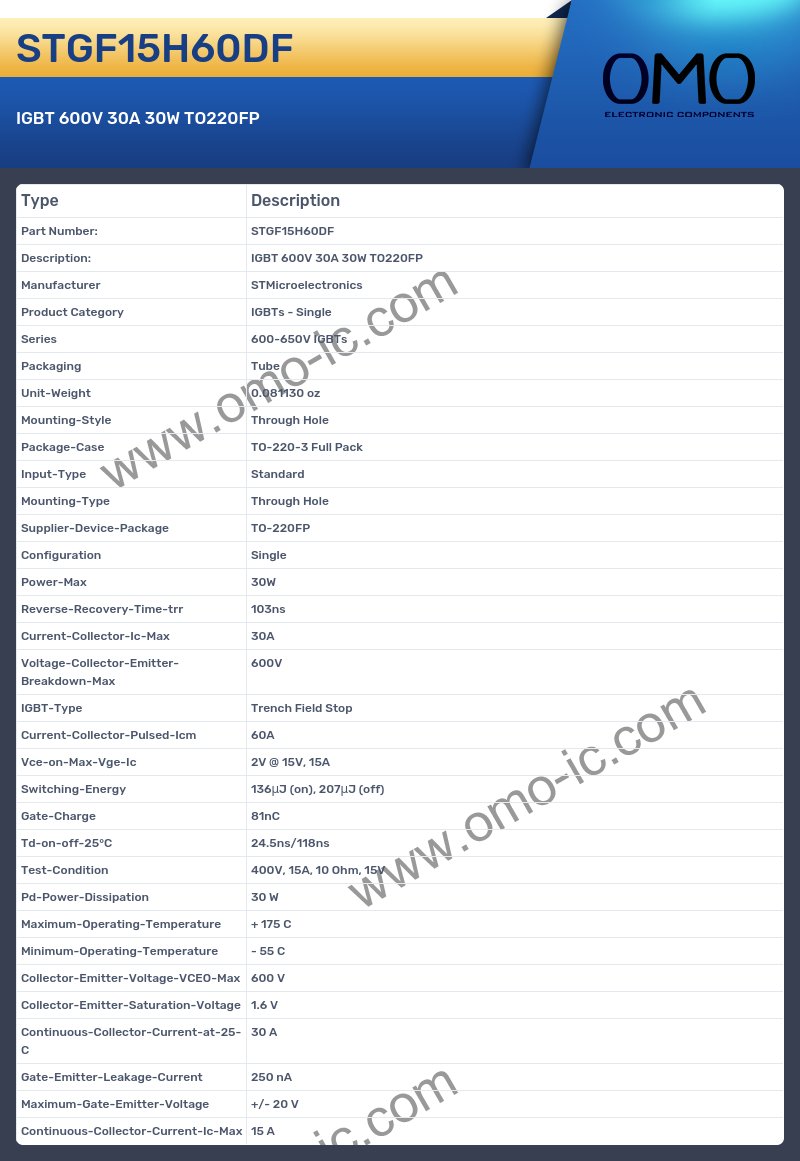

STGF15H60DF Image

STGF15H60DF Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series 600-650V IGBTs
• Packaging Tube
• Unit-Weight 0.081130 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3 Full Pack
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220FP
• Configuration Single
• Power-Max 30W
• Reverse-Recovery-Time-trr 103ns
• Current-Collector-Ic-Max 30A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type Trench Field Stop
• Current-Collector-Pulsed-Icm 60A
• Vce-on-Max-Vge-Ic 2V @ 15V, 15A
• Switching-Energy 136μJ (on), 207μJ (off)
• Gate-Charge 81nC
• Td-on-off-25°C 24.5ns/118ns
• Test-Condition 400V, 15A, 10 Ohm, 15V
• Pd-Power-Dissipation 30 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 600 V
• Collector-Emitter-Saturation-Voltage 1.6 V
• Continuous-Collector-Current-at-25-C 30 A
• Gate-Emitter-Leakage-Current 250 nA
• Maximum-Gate-Emitter-Voltage +/- 20 V
• Continuous-Collector-Current-Ic-Max 15 A
