| Mfr. #: | STGF19NC60HD |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | IGBT Transistors N-CHANNEL MFT |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STGF19NC60HD Datasheet |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 Full Pack The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220FP Configuration Single Maximum current collector Ic is 16A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 60A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 12A. 25ns/97ns Td-on-off at 25°C; Operating temperature: 390V, 12A, 10 Ohm, 15V Power-off control: 35 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 1.8 V/1.6 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 16 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

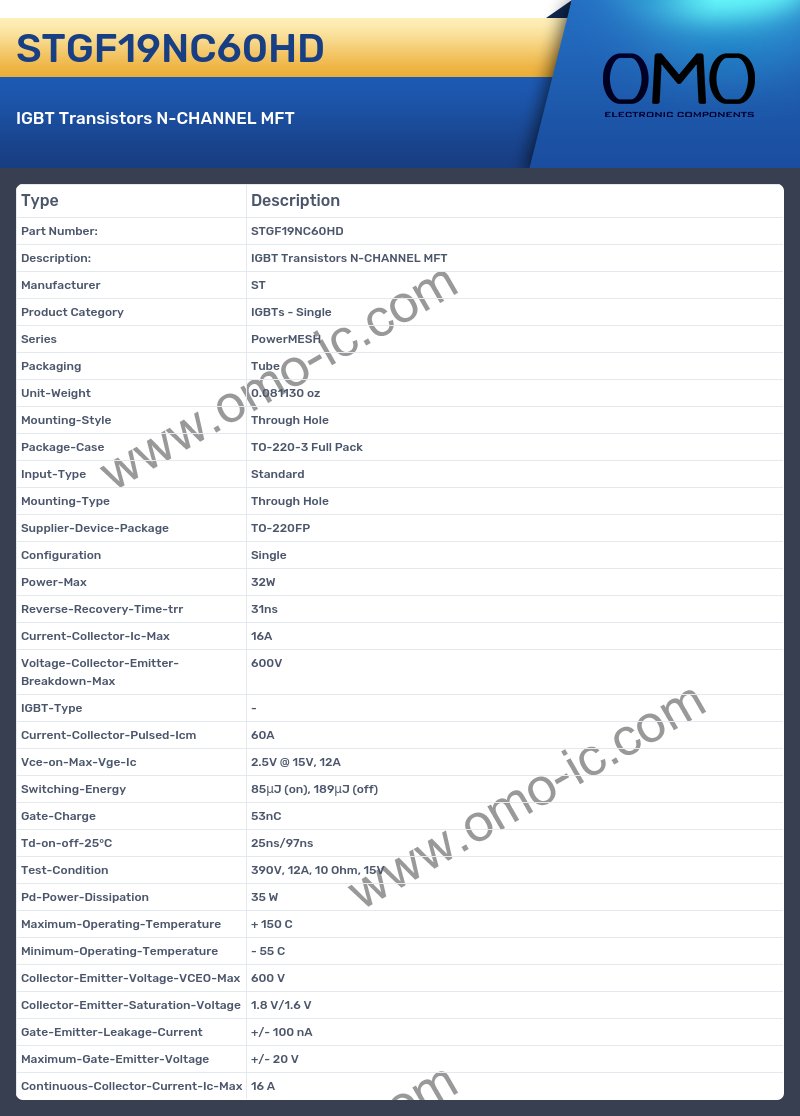

STGF19NC60HD Specifications
A: At what frequency does the Series?
Q: The product Series is PowerMESH.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.081130 oz
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-220-3 Full Pack
A: What is the Input-Type of the product?
Q: The Input-Type of the product is Standard.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Through Hole.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is TO-220FP.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 16A.
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 600V.
A: Is the cutoff frequency of the product Current-Collector-Pulsed-Icm?
Q: Yes, the product's Current-Collector-Pulsed-Icm is indeed 60A
A: Is the cutoff frequency of the product Vce-on-Max-Vge-Ic?
Q: Yes, the product's Vce-on-Max-Vge-Ic is indeed 2.5V @ 15V, 12A
A: At what frequency does the Td-on-off-25°C?
Q: The product Td-on-off-25°C is 25ns/97ns.
A: What is the Test-Condition of the product?
Q: The Test-Condition of the product is 390V, 12A, 10 Ohm, 15V.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 35 W.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 600 V.
A: Is the cutoff frequency of the product Collector-Emitter-Saturation-Voltage?
Q: Yes, the product's Collector-Emitter-Saturation-Voltage is indeed 1.8 V/1.6 V
A: What is the Maximum-Gate-Emitter-Voltage of the product?
Q: The Maximum-Gate-Emitter-Voltage of the product is +/- 20 V.
A: What is the Continuous-Collector-Current-Ic-Max of the product?
Q: The Continuous-Collector-Current-Ic-Max of the product is 16 A.
