| Mfr. #: | STGF7NC60HD |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | IGBT 600V 10A 25W TO220FP |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STGF7NC60HD Datasheet |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 Full Pack The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220FP Configuration Single Maximum current collector Ic is 10A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 50A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 7A. 18.5ns/72ns Td-on-off at 25°C; Operating temperature: 390V, 7A, 10 Ohm, 15V Power-off control: 25 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.5 V 10 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 10 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

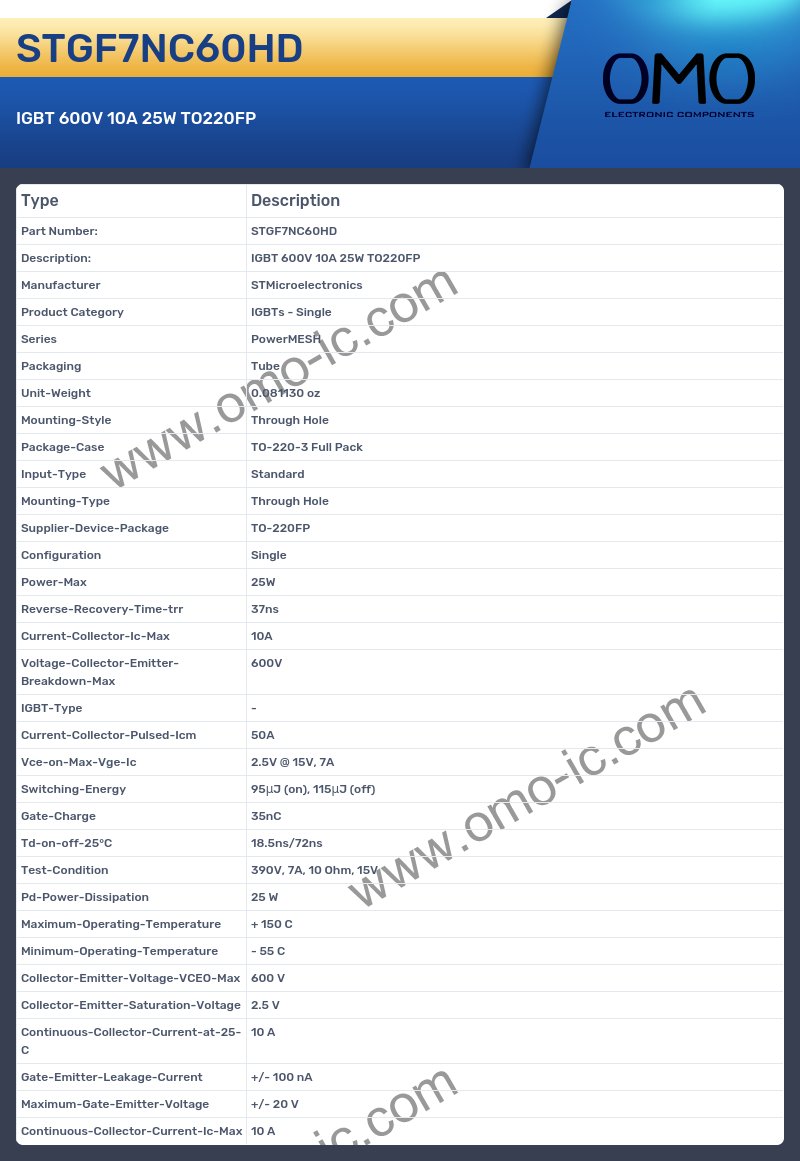

STGF7NC60HD Specifications
