STGFL6NC60D

STGFL6NC60D Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product TO-220-3 Full Pack The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220FP Maximum current collector Ic is 7A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 25A. The Vce-on-Max-Vge-Ic is rated at 2.9V @ 15V, 3A. 6.7ns/46ns Td-on-off at 25°C; Operating temperature: 390V, 3A, 10 Ohm, 15V

STGFL6NC60D Image

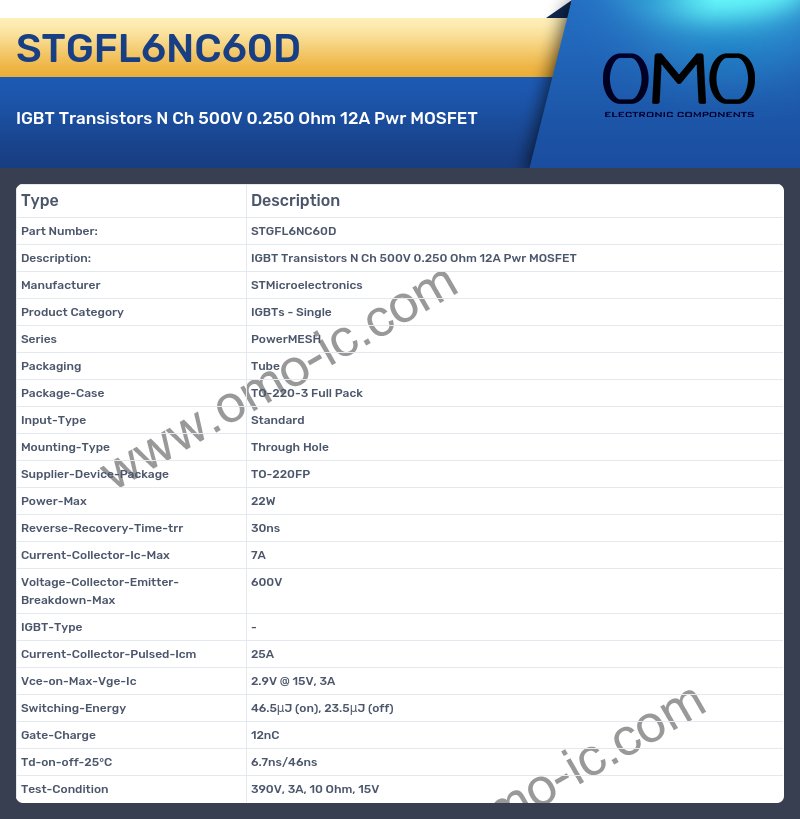

STGFL6NC60D Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Package-Case TO-220-3 Full Pack
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220FP
• Power-Max 22W
• Reverse-Recovery-Time-trr 30ns
• Current-Collector-Ic-Max 7A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 25A
• Vce-on-Max-Vge-Ic 2.9V @ 15V, 3A
• Switching-Energy 46.5μJ (on), 23.5μJ (off)
• Gate-Charge 12nC
• Td-on-off-25°C 6.7ns/46ns
• Test-Condition 390V, 3A, 10 Ohm, 15V
