STGP35N35LZ

STGP35N35LZ Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 The Logic for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220-3 Maximum current collector Ic is 40A . Maximum collector-emitter breakdown voltage of 345V The Current-Collector-Pulsed-Icm is rated at 80A. The Vce-on-Max-Vge-Ic is rated at 1.7V @ 4.5V, 15A. 1.1μs/26.5μs Td-on-off at 25°C; Operating temperature: 300V, 15A, 5V Power-off control: 176 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Saturation voltage between collector and emitter is 1.7 V 40 A Continuous Collector Current at 25°C

STGP35N35LZ Image

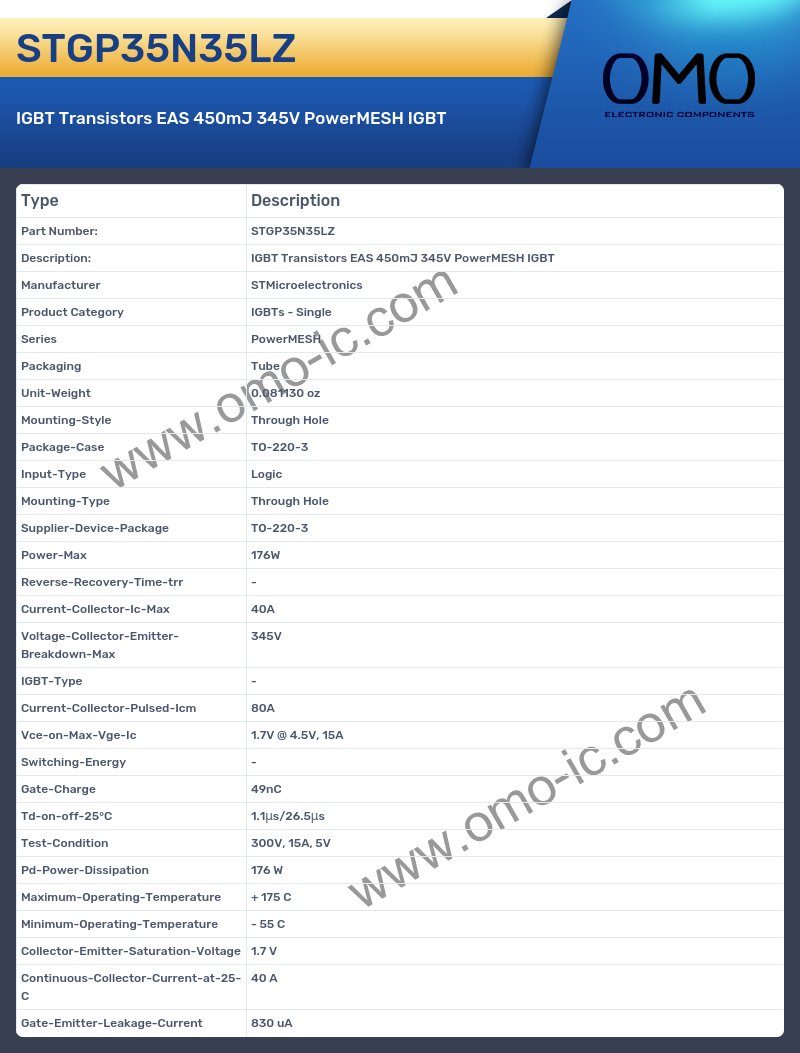

STGP35N35LZ Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Unit-Weight 0.081130 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Input-Type Logic
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220-3
• Power-Max 176W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 40A
• Voltage-Collector-Emitter-Breakdown-Max 345V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 80A
• Vce-on-Max-Vge-Ic 1.7V @ 4.5V, 15A
• Switching-Energy -
• Gate-Charge 49nC
• Td-on-off-25°C 1.1μs/26.5μs
• Test-Condition 300V, 15A, 5V
• Pd-Power-Dissipation 176 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Saturation-Voltage 1.7 V
• Continuous-Collector-Current-at-25-C 40 A
• Gate-Emitter-Leakage-Current 830 uA
