| Mfr. #: | STGP3NC120HD |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | IGBT Transistors 7A 1200 V Very Fast IGBT Power Bipola |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STGP3NC120HD Datasheet |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220 Configuration Single Maximum current collector Ic is 14A . Maximum collector-emitter breakdown voltage of 1200V The Current-Collector-Pulsed-Icm is rated at 20A. The Vce-on-Max-Vge-Ic is rated at 2.8V @ 15V, 3A. 15ns/118ns Td-on-off at 25°C; Operating temperature: 800V, 3A, 10 Ohm, 15V Power-off control: 75 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Saturation voltage between collector and emitter is 2.2 V 14 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V Maximal 14 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

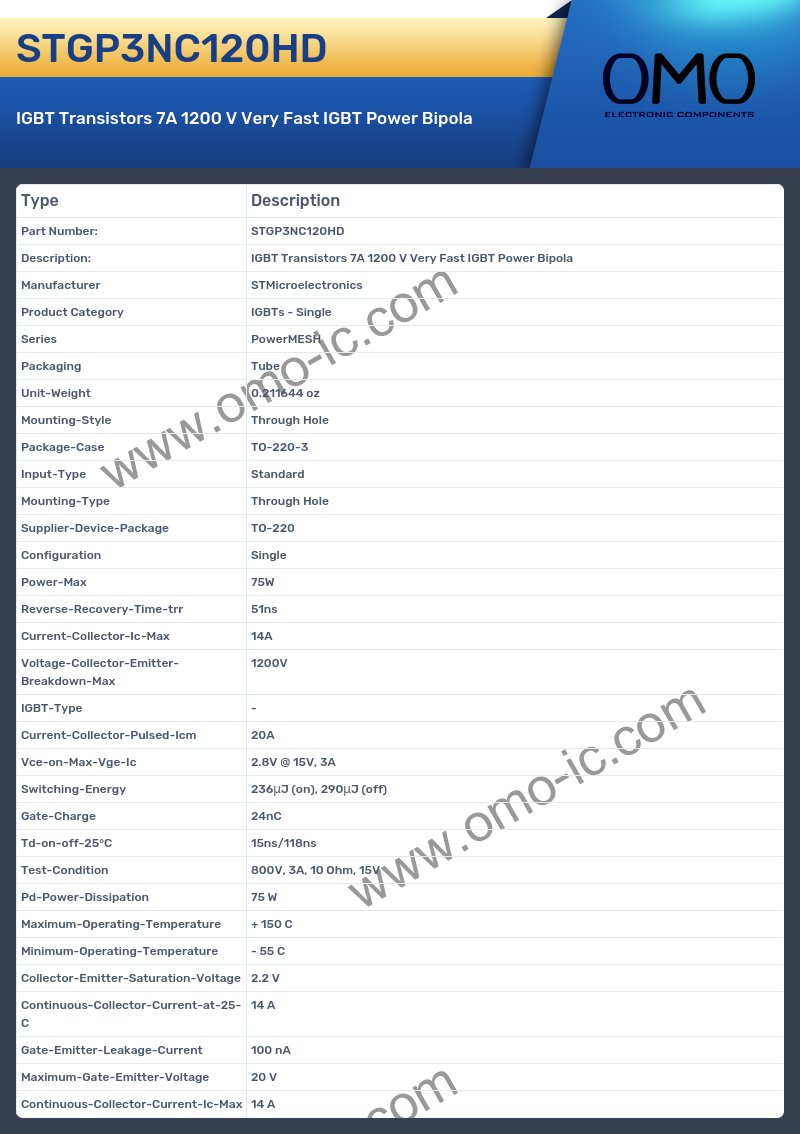

STGP3NC120HD Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed PowerMESH
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.211644 oz
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-220-3
A: Is the cutoff frequency of the product Input-Type?
Q: Yes, the product's Input-Type is indeed Standard
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Through Hole.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed TO-220
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 14A.
A: At what frequency does the Voltage-Collector-Emitter-Breakdown-Max?
Q: The product Voltage-Collector-Emitter-Breakdown-Max is 1200V.
A: At what frequency does the Current-Collector-Pulsed-Icm?
Q: The product Current-Collector-Pulsed-Icm is 20A.
A: Is the cutoff frequency of the product Vce-on-Max-Vge-Ic?
Q: Yes, the product's Vce-on-Max-Vge-Ic is indeed 2.8V @ 15V, 3A
A: Is the cutoff frequency of the product Td-on-off-25°C?
Q: Yes, the product's Td-on-off-25°C is indeed 15ns/118ns
A: At what frequency does the Test-Condition?
Q: The product Test-Condition is 800V, 3A, 10 Ohm, 15V.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 75 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 2.2 V.
A: Is the cutoff frequency of the product Continuous-Collector-Current-at-25-C?
Q: Yes, the product's Continuous-Collector-Current-at-25-C is indeed 14 A
A: Is the cutoff frequency of the product Maximum-Gate-Emitter-Voltage?
Q: Yes, the product's Maximum-Gate-Emitter-Voltage is indeed 20 V
A: At what frequency does the Continuous-Collector-Current-Ic-Max?
Q: The product Continuous-Collector-Current-Ic-Max is 14 A.
