STGP5H60DF

STGP5H60DF Overview

Product belongs to the - series. Tube is the packaging method for this product TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220 Maximum current collector Ic is 10A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 20A. The Vce-on-Max-Vge-Ic is rated at 1.95V @ 15V, 5A. 30ns/140ns Td-on-off at 25°C; Operating temperature: 400V, 5A, 47 Ohm, 15V

STGP5H60DF Image

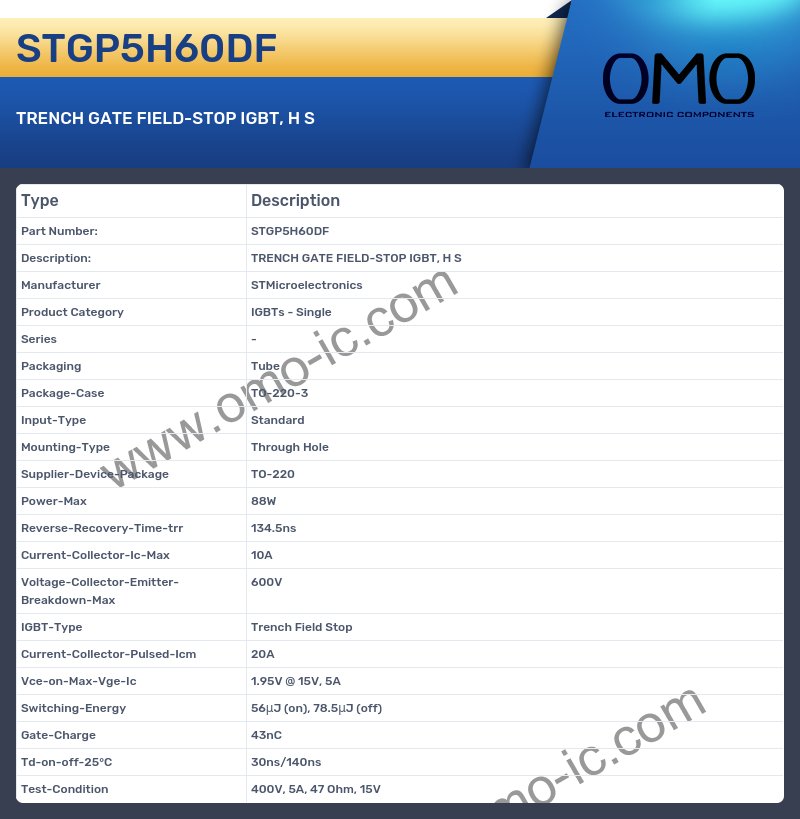

STGP5H60DF Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series -
• Packaging Tube
• Package-Case TO-220-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220
• Power-Max 88W
• Reverse-Recovery-Time-trr 134.5ns
• Current-Collector-Ic-Max 10A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type Trench Field Stop
• Current-Collector-Pulsed-Icm 20A
• Vce-on-Max-Vge-Ic 1.95V @ 15V, 5A
• Switching-Energy 56μJ (on), 78.5μJ (off)
• Gate-Charge 43nC
• Td-on-off-25°C 30ns/140ns
• Test-Condition 400V, 5A, 47 Ohm, 15V
