STGP7NC60H

STGP7NC60H Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220AB Maximum current collector Ic is 25A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 50A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 7A. 18.5ns/72ns Td-on-off at 25°C; Operating temperature: 390V, 7A, 10 Ohm, 15V

STGP7NC60H Image

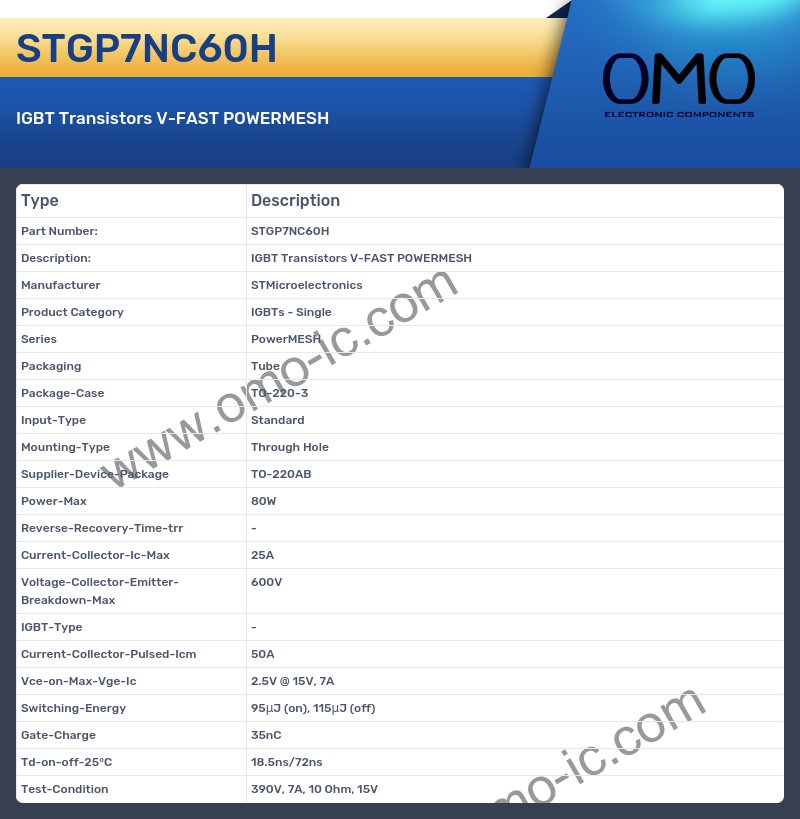

STGP7NC60H Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Package-Case TO-220-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AB
• Power-Max 80W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 25A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 50A
• Vce-on-Max-Vge-Ic 2.5V @ 15V, 7A
• Switching-Energy 95μJ (on), 115μJ (off)
• Gate-Charge 35nC
• Td-on-off-25°C 18.5ns/72ns
• Test-Condition 390V, 7A, 10 Ohm, 15V
