| Mfr. #: | STGW30NC120HD |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | IGBT 1200V 60A 220W TO247 |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STGW30NC120HD Datasheet |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247-3 Configuration Single Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 1200V The Current-Collector-Pulsed-Icm is rated at -. The Vce-on-Max-Vge-Ic is rated at 2.75V @ 15V, 20A. 29ns/275ns Td-on-off at 25°C; Operating temperature: 960V, 20A, 10 Ohm, 15V Power-off control: 220 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 1200 V Saturation voltage between collector and emitter is 2.75 V Maximum-Gate-Emitter-Voltage: +/- 25 V Maximal 60 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

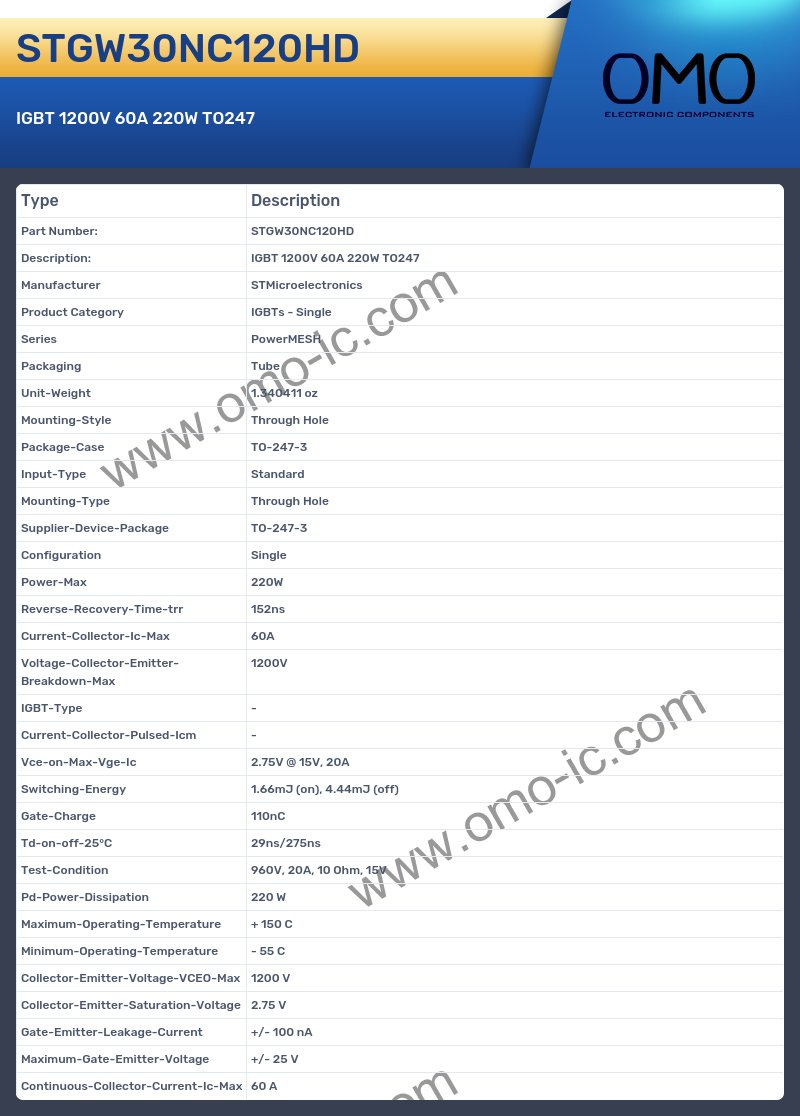

STGW30NC120HD Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed PowerMESH
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 1.340411 oz
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-247-3.
A: Is the cutoff frequency of the product Input-Type?
Q: Yes, the product's Input-Type is indeed Standard
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is TO-247-3.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 60A.
A: At what frequency does the Voltage-Collector-Emitter-Breakdown-Max?
Q: The product Voltage-Collector-Emitter-Breakdown-Max is 1200V.
A: At what frequency does the Current-Collector-Pulsed-Icm?
Q: The product Current-Collector-Pulsed-Icm is -.
A: At what frequency does the Vce-on-Max-Vge-Ic?
Q: The product Vce-on-Max-Vge-Ic is 2.75V @ 15V, 20A.
A: What is the Td-on-off-25°C of the product?
Q: The Td-on-off-25°C of the product is 29ns/275ns.
A: What is the Test-Condition of the product?
Q: The Test-Condition of the product is 960V, 20A, 10 Ohm, 15V.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 220 W
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 1200 V.
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 2.75 V.
A: Is the cutoff frequency of the product Maximum-Gate-Emitter-Voltage?
Q: Yes, the product's Maximum-Gate-Emitter-Voltage is indeed +/- 25 V
A: At what frequency does the Continuous-Collector-Current-Ic-Max?
Q: The product Continuous-Collector-Current-Ic-Max is 60 A.
