| Mfr. #: | STGW38IH130D |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | IGBT Transistors 33A -1300V very fast IGBT |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STGW38IH130D Datasheet |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.229281 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247 Long Leads Configuration Single Maximum current collector Ic is 63A . Maximum collector-emitter breakdown voltage of 1300V The Current-Collector-Pulsed-Icm is rated at 125A. The Vce-on-Max-Vge-Ic is rated at 2.8V @ 15V, 20A. -/284ns Td-on-off at 25°C; Operating temperature: 960V, 20A, 10 Ohm, 15V Power-off control: 180 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 1300 V Saturation voltage between collector and emitter is 2.1 V 55 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 25 V
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

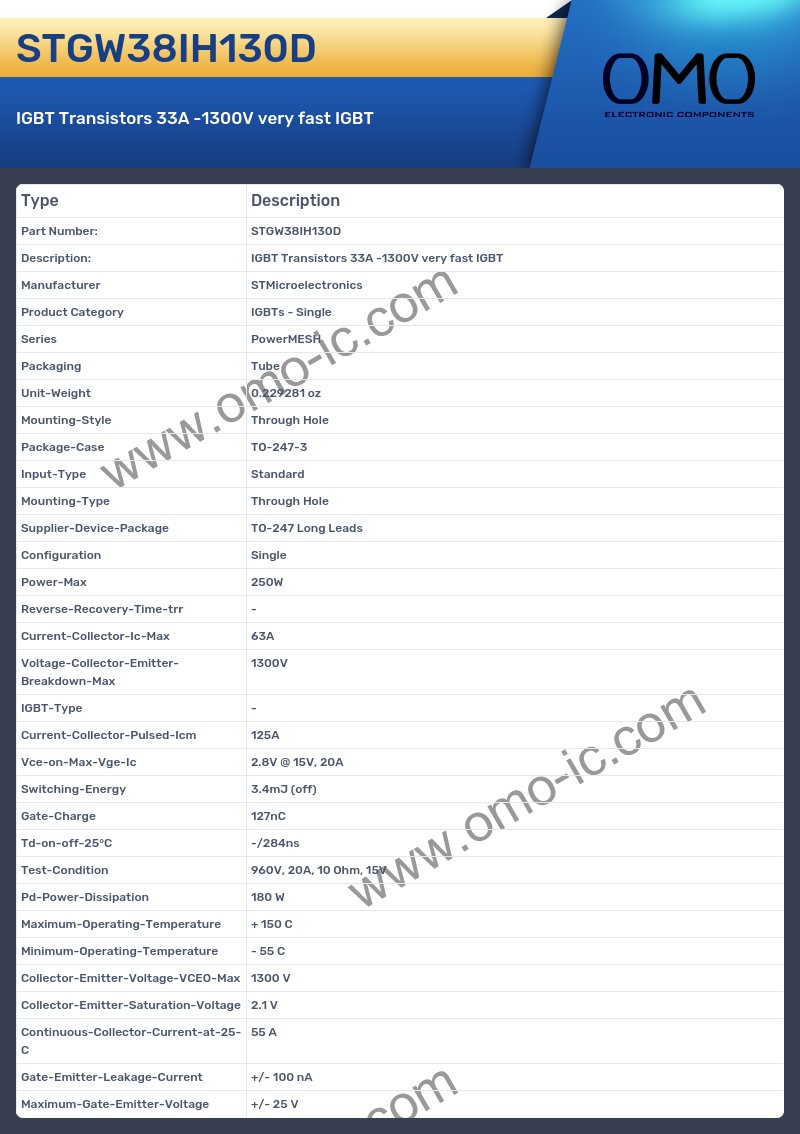

STGW38IH130D Specifications
A: At what frequency does the Series?
Q: The product Series is PowerMESH.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.229281 oz
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-247-3.
A: What is the Input-Type of the product?
Q: The Input-Type of the product is Standard.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is TO-247 Long Leads.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 63A.
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 1300V.
A: At what frequency does the Current-Collector-Pulsed-Icm?
Q: The product Current-Collector-Pulsed-Icm is 125A.
A: What is the Vce-on-Max-Vge-Ic of the product?
Q: The Vce-on-Max-Vge-Ic of the product is 2.8V @ 15V, 20A.
A: Is the cutoff frequency of the product Td-on-off-25°C?
Q: Yes, the product's Td-on-off-25°C is indeed -/284ns
A: Is the cutoff frequency of the product Test-Condition?
Q: Yes, the product's Test-Condition is indeed 960V, 20A, 10 Ohm, 15V
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 180 W
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 1300 V.
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 2.1 V.
A: What is the Continuous-Collector-Current-at-25-C of the product?
Q: The Continuous-Collector-Current-at-25-C of the product is 55 A.
A: What is the Maximum-Gate-Emitter-Voltage of the product?
Q: The Maximum-Gate-Emitter-Voltage of the product is +/- 25 V.
