| Mfr. #: | STGW39NC60VD |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | IGBT 600V 80A 250W TO247 |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STGW39NC60VD Datasheet |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247-3 Configuration Single Maximum current collector Ic is 80A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 220A. The Vce-on-Max-Vge-Ic is rated at 2.4V @ 15V, 30A. 33ns/178ns Td-on-off at 25°C; Operating temperature: 390V, 30A, 10 Ohm, 15V Power-off control: 250 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 1.8 V/1.7 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 80 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

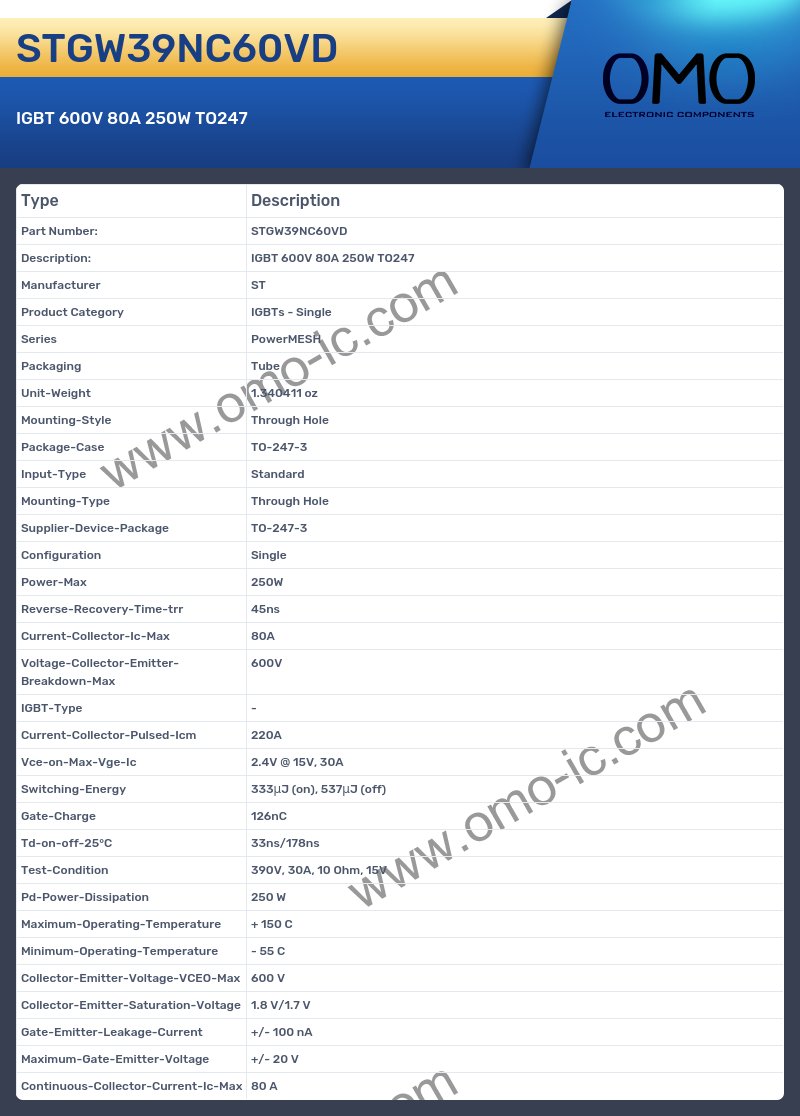

STGW39NC60VD Specifications
A: What is the Series of the product?
Q: The Series of the product is PowerMESH.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 1.340411 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-247-3
A: At what frequency does the Input-Type?
Q: The product Input-Type is Standard.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Through Hole.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is TO-247-3.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 80A.
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 600V
A: At what frequency does the Current-Collector-Pulsed-Icm?
Q: The product Current-Collector-Pulsed-Icm is 220A.
A: What is the Vce-on-Max-Vge-Ic of the product?
Q: The Vce-on-Max-Vge-Ic of the product is 2.4V @ 15V, 30A.
A: Is the cutoff frequency of the product Td-on-off-25°C?
Q: Yes, the product's Td-on-off-25°C is indeed 33ns/178ns
A: At what frequency does the Test-Condition?
Q: The product Test-Condition is 390V, 30A, 10 Ohm, 15V.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 250 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 600 V
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 1.8 V/1.7 V.
A: What is the Maximum-Gate-Emitter-Voltage of the product?
Q: The Maximum-Gate-Emitter-Voltage of the product is +/- 20 V.
A: Is the cutoff frequency of the product Continuous-Collector-Current-Ic-Max?
Q: Yes, the product's Continuous-Collector-Current-Ic-Max is indeed 80 A
