STGW40H120DF2

STGW40H120DF2 Overview

Product belongs to the 900-1300V IGBTs series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247 Configuration Single Maximum current collector Ic is 80A . Maximum collector-emitter breakdown voltage of 1200V The Current-Collector-Pulsed-Icm is rated at 160A. The Vce-on-Max-Vge-Ic is rated at 2.6V @ 15V, 40A. 18ns/152ns Td-on-off at 25°C; Operating temperature: 600V, 40A, 10 Ohm, 15V Power-off control: 468 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 1200 V Saturation voltage between collector and emitter is 2.1 V 80 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V Maximal 40 A Collector Current of Continuity;

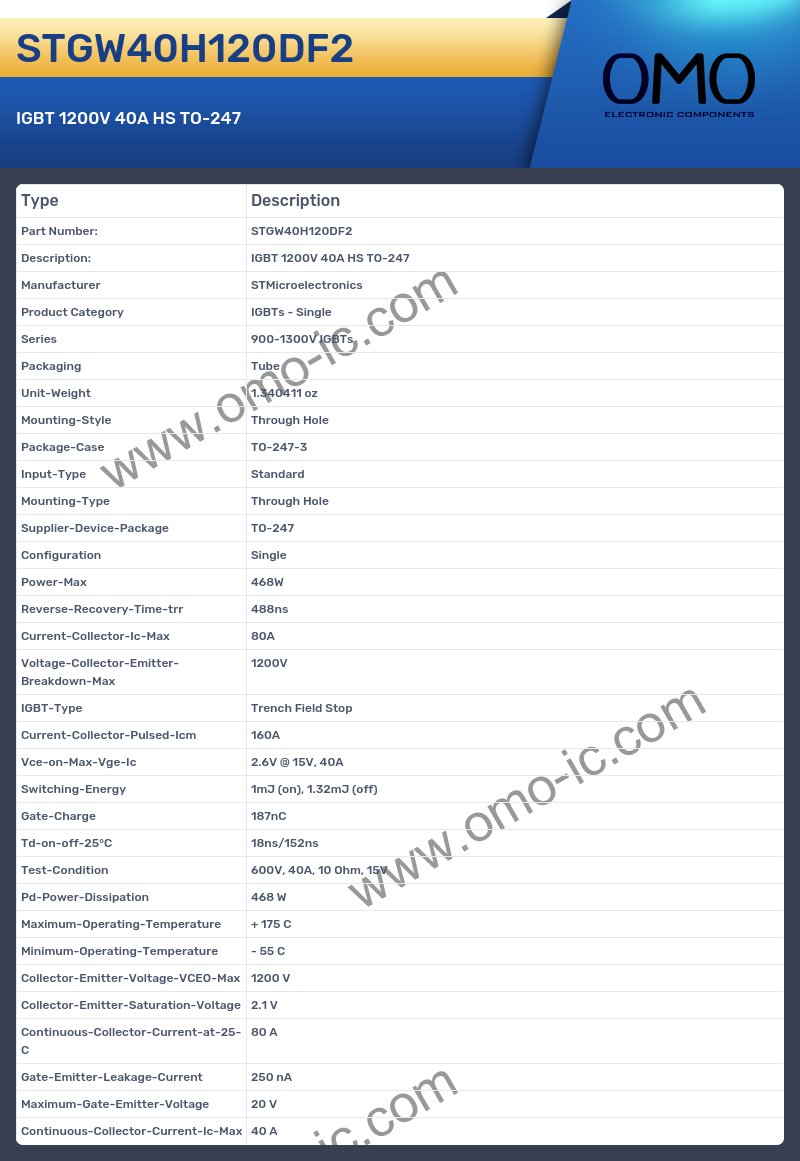

STGW40H120DF2 Image

STGW40H120DF2 Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series 900-1300V IGBTs
• Packaging Tube
• Unit-Weight 1.340411 oz
• Mounting-Style Through Hole
• Package-Case TO-247-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-247
• Configuration Single
• Power-Max 468W
• Reverse-Recovery-Time-trr 488ns
• Current-Collector-Ic-Max 80A
• Voltage-Collector-Emitter-Breakdown-Max 1200V
• IGBT-Type Trench Field Stop
• Current-Collector-Pulsed-Icm 160A
• Vce-on-Max-Vge-Ic 2.6V @ 15V, 40A
• Switching-Energy 1mJ (on), 1.32mJ (off)
• Gate-Charge 187nC
• Td-on-off-25°C 18ns/152ns
• Test-Condition 600V, 40A, 10 Ohm, 15V
• Pd-Power-Dissipation 468 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 1200 V
• Collector-Emitter-Saturation-Voltage 2.1 V
• Continuous-Collector-Current-at-25-C 80 A
• Gate-Emitter-Leakage-Current 250 nA
• Maximum-Gate-Emitter-Voltage 20 V
• Continuous-Collector-Current-Ic-Max 40 A
