STGW40NC60W

STGW40NC60W Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247 Long Leads Maximum current collector Ic is 70A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 230A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 30A. 33ns/168ns Td-on-off at 25°C; Operating temperature: 390V, 30A, 10 Ohm, 15V

STGW40NC60W Image

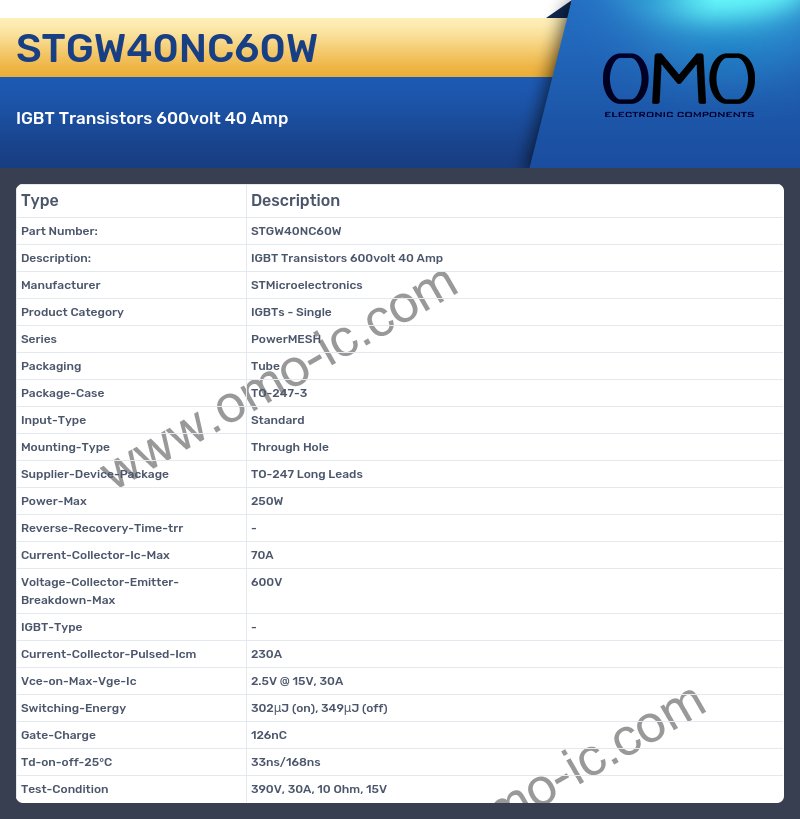

STGW40NC60W Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Package-Case TO-247-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-247 Long Leads
• Power-Max 250W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 70A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 230A
• Vce-on-Max-Vge-Ic 2.5V @ 15V, 30A
• Switching-Energy 302μJ (on), 349μJ (off)
• Gate-Charge 126nC
• Td-on-off-25°C 33ns/168ns
• Test-Condition 390V, 30A, 10 Ohm, 15V
