| Mfr. #: | STH260N6F6-6 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | IGBT Transistors MOSFET POWER MOSFET |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STH260N6F6-6 Datasheet |
Product belongs to the N-channel STripFET series. Reel is the packaging method for this product Weight of 0.056438 oz SMD/SMT Mounting-Style TO-263-7 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 300 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 62.6 ns of 16 ns. This product has a 165 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 180 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 60 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 2.4 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 144.4 ns This product has a 31.4 ns. Qg-Gate-Charge is 183 nC. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

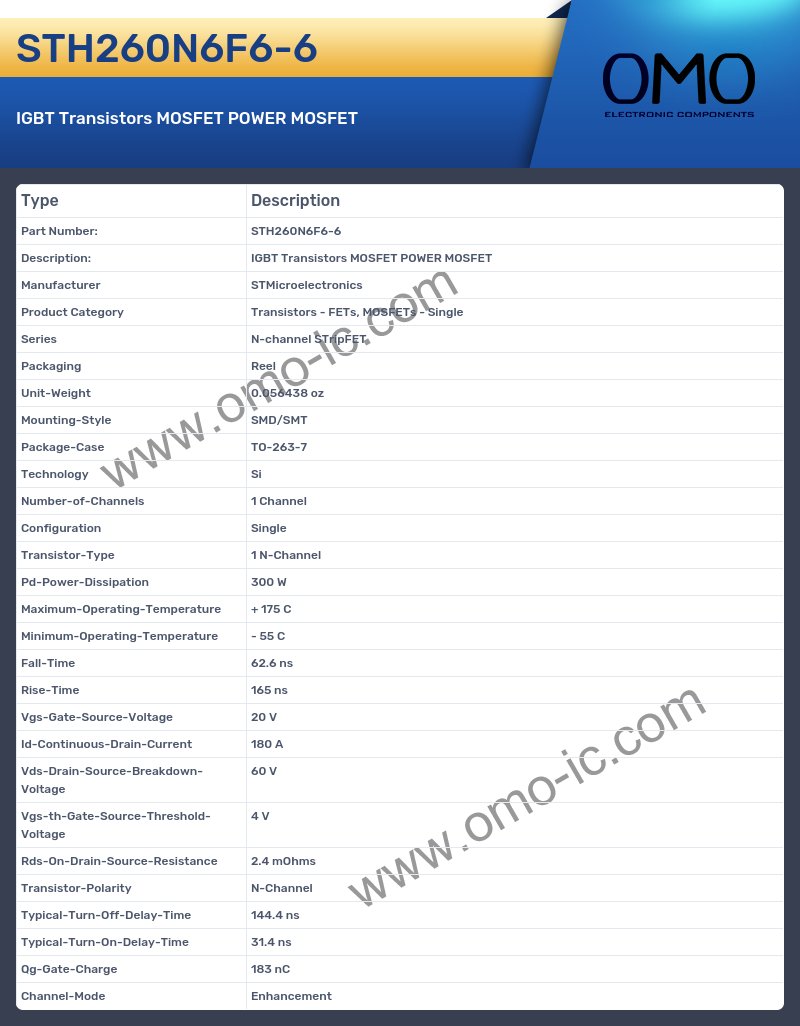

STH260N6F6-6 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed N-channel STripFET
A: What is the Packaging of the product?
Q: The Packaging of the product is Reel.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.056438 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-263-7.
A: At what frequency does the Technology?
Q: The product Technology is Si.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 1 Channel.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is 1 N-Channel.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 300 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 175 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: At what frequency does the Fall-Time?
Q: The product Fall-Time is 62.6 ns.
A: At what frequency does the Rise-Time?
Q: The product Rise-Time is 165 ns.
A: What is the Vgs-Gate-Source-Voltage of the product?
Q: The Vgs-Gate-Source-Voltage of the product is 20 V.
A: What is the Id-Continuous-Drain-Current of the product?
Q: The Id-Continuous-Drain-Current of the product is 180 A.
A: What is the Vds-Drain-Source-Breakdown-Voltage of the product?
Q: The Vds-Drain-Source-Breakdown-Voltage of the product is 60 V.
A: At what frequency does the Vgs-th-Gate-Source-Threshold-Voltage?
Q: The product Vgs-th-Gate-Source-Threshold-Voltage is 4 V.
A: What is the Rds-On-Drain-Source-Resistance of the product?
Q: The Rds-On-Drain-Source-Resistance of the product is 2.4 mOhms.
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is N-Channel.
A: At what frequency does the Typical-Turn-Off-Delay-Time?
Q: The product Typical-Turn-Off-Delay-Time is 144.4 ns.
A: Is the cutoff frequency of the product Typical-Turn-On-Delay-Time?
Q: Yes, the product's Typical-Turn-On-Delay-Time is indeed 31.4 ns
A: At what frequency does the Qg-Gate-Charge?
Q: The product Qg-Gate-Charge is 183 nC.
A: At what frequency does the Channel-Mode?
Q: The product Channel-Mode is Enhancement.
