STL20DN10F7

STL20DN10F7 Overview

Product belongs to the DeepGATE, STripFET VII series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 8-PowerVDFN Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 2 Channel Supplier device package: PowerFlat (5x6) Configuration Dual This product uses an 2 N-Channel (Dual) FET-Type transistor. Transistor type: 2 N-Channel 100V This product has an 408pF @ 50V value of 300pF @ 25V. This product's Standard. 20A continuous drain-ID current at 25°C; This product has an 67 mOhm @ 2.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 4 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 4 ns of 16 ns. This product has a 3 ns of 16 ns. This product's +/- 20 V. The ID of continuous drain current is 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. This product has a 4.5 V Vgs-th gate-source threshold voltage for efficient power management. The 67 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 11 ns This product has a 6.3 ns. Qg-Gate-Charge is 7.8 nC. This product operates in Enhancement channel mode for optimal performance.

STL20DN10F7 Image

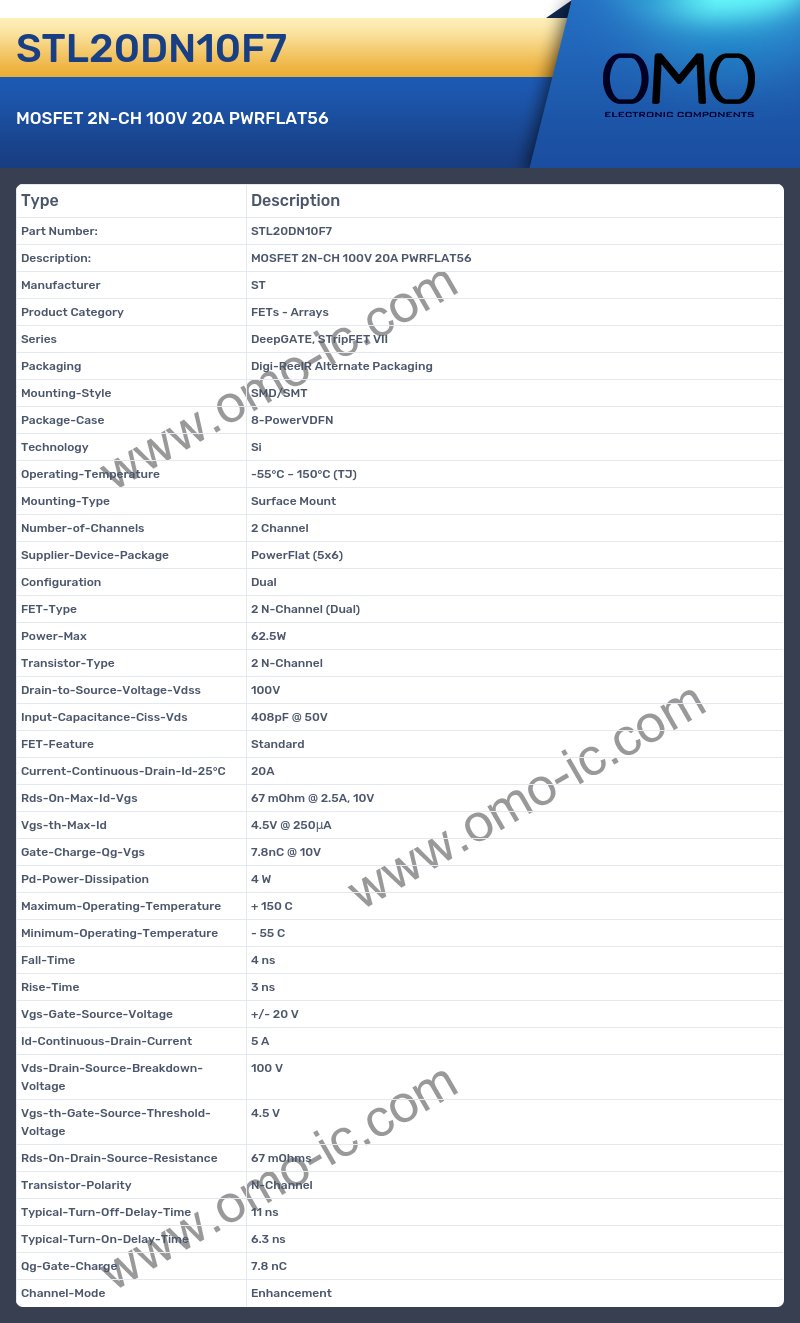

STL20DN10F7 Specifications

• Manufacturer ST
• Product Category FETs - Arrays
• Series DeepGATE, STripFET VII
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 8-PowerVDFN
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 2 Channel
• Supplier-Device-Package PowerFlat (5x6)
• Configuration Dual
• FET-Type 2 N-Channel (Dual)
• Power-Max 62.5W
• Transistor-Type 2 N-Channel
• Drain-to-Source-Voltage-Vdss 100V
• Input-Capacitance-Ciss-Vds 408pF @ 50V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 20A
• Rds-On-Max-Id-Vgs 67 mOhm @ 2.5A, 10V
• Vgs-th-Max-Id 4.5V @ 250μA
• Gate-Charge-Qg-Vgs 7.8nC @ 10V
• Pd-Power-Dissipation 4 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 4 ns
• Rise-Time 3 ns
• Vgs-Gate-Source-Voltage +/- 20 V
• Id-Continuous-Drain-Current 5 A
• Vds-Drain-Source-Breakdown-Voltage 100 V
• Vgs-th-Gate-Source-Threshold-Voltage 4.5 V
• Rds-On-Drain-Source-Resistance 67 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 11 ns
• Typical-Turn-On-Delay-Time 6.3 ns
• Qg-Gate-Charge 7.8 nC
• Channel-Mode Enhancement
