| Mfr. #: | STL3N10F7 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | IGBT Transistors MOSFET POWER MOSFET |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STL3N10F7 Datasheet |
Product belongs to the N-channel STripFET series. Reel is the packaging method for this product SMD/SMT Mounting-Style PowerFLAT-6 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 2.4 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 4 ns of 16 ns. This product has a 3 ns of 16 ns. This product's +/- 20 V. The ID of continuous drain current is 4 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. This product has a 4.5 V Vgs-th gate-source threshold voltage for efficient power management. The 70 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 11 ns This product has a 6.3 ns. Qg-Gate-Charge is 7.8 nC. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

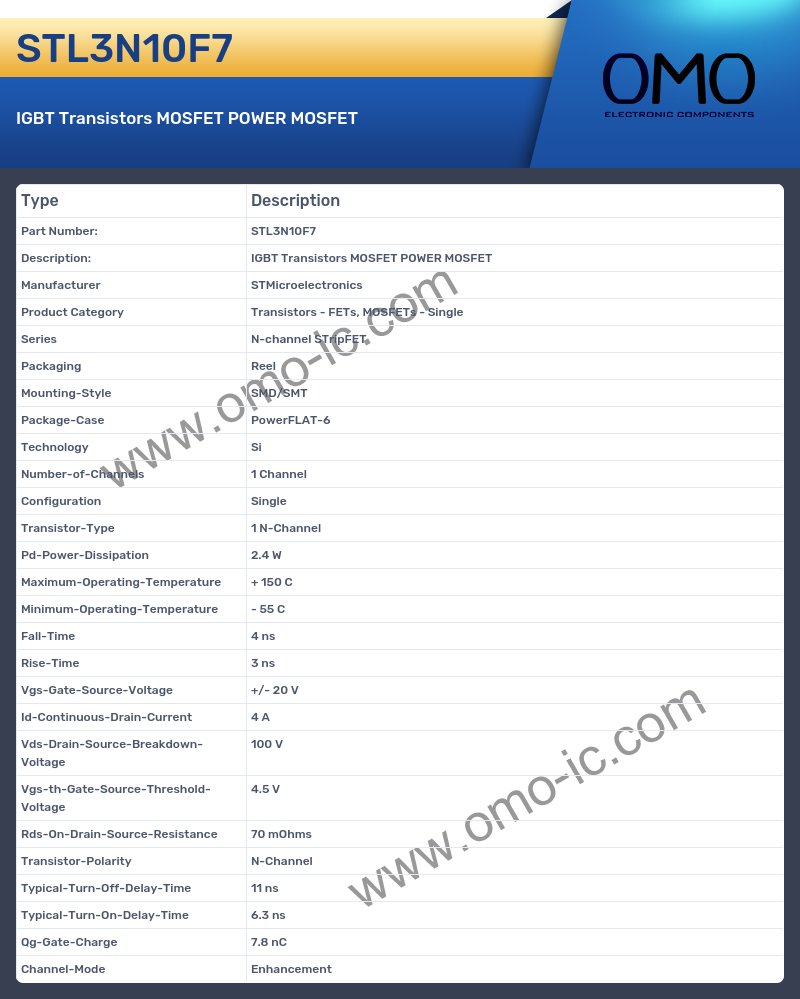

STL3N10F7 Specifications
