STL60N3LLH5

STL60N3LLH5 Overview

Product belongs to the N-channel STripFET series. Reel is the packaging method for this product SMD/SMT Mounting-Style PowerFlat-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 60 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product's +/- 22 V. The ID of continuous drain current is 60 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. This product has a 1 V Vgs-th gate-source threshold voltage for efficient power management. The 6.3 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. Qg-Gate-Charge is 8 nC.

STL60N3LLH5 Image

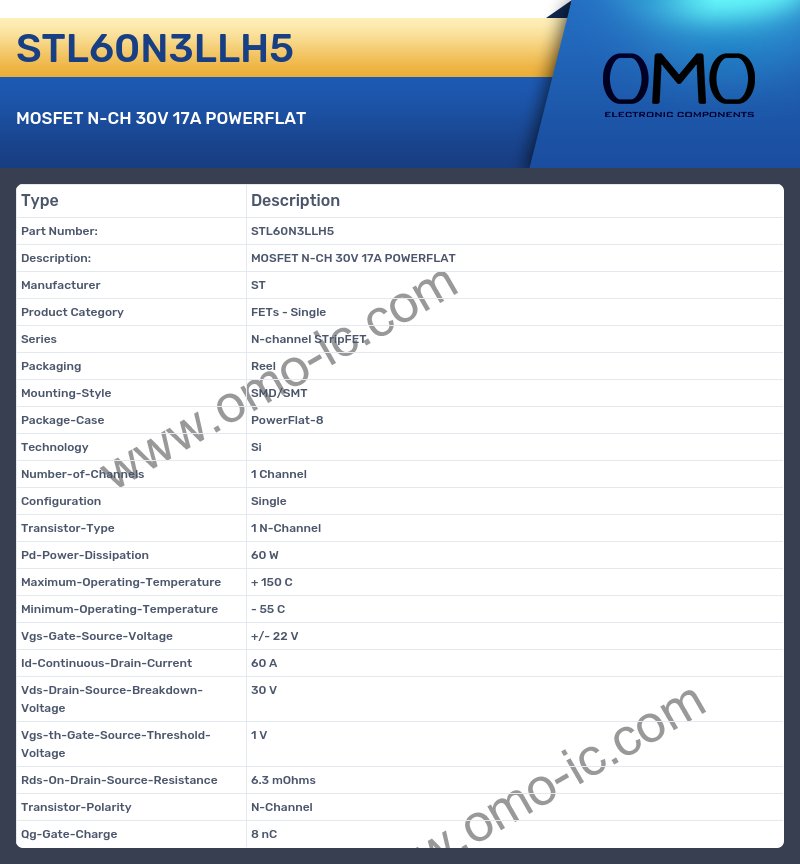

STL60N3LLH5 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series N-channel STripFET
• Packaging Reel
• Mounting-Style SMD/SMT
• Package-Case PowerFlat-8
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 60 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Vgs-Gate-Source-Voltage +/- 22 V
• Id-Continuous-Drain-Current 60 A
• Vds-Drain-Source-Breakdown-Voltage 30 V
• Vgs-th-Gate-Source-Threshold-Voltage 1 V
• Rds-On-Drain-Source-Resistance 6.3 mOhms
• Transistor-Polarity N-Channel
• Qg-Gate-Charge 8 nC
