| Mfr. #: | STL8N10LF3 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | MOSFET N CH 100V 20A PWRFLT5X6 |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STL8N10LF3 Datasheet |
Product belongs to the STripFET III series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 8-PowerSMD, Flat Leads Si is the technology used. Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: PowerFlat (5x6) Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 100V This product has an 970pF @ 25V value of 300pF @ 25V. This product's Logic Level Gate. 20A (Tc) continuous drain-ID current at 25°C; This product has an 35 mOhm @ 4A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 70 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 5.2 ns of 16 ns. This product has a 9.6 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 7.8 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. This product has a 1 V to 3 V Vgs-th gate-source threshold voltage for efficient power management. The 35 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 50.6 ns This product has a 8.7 ns. Qg-Gate-Charge is 20.5 nC.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

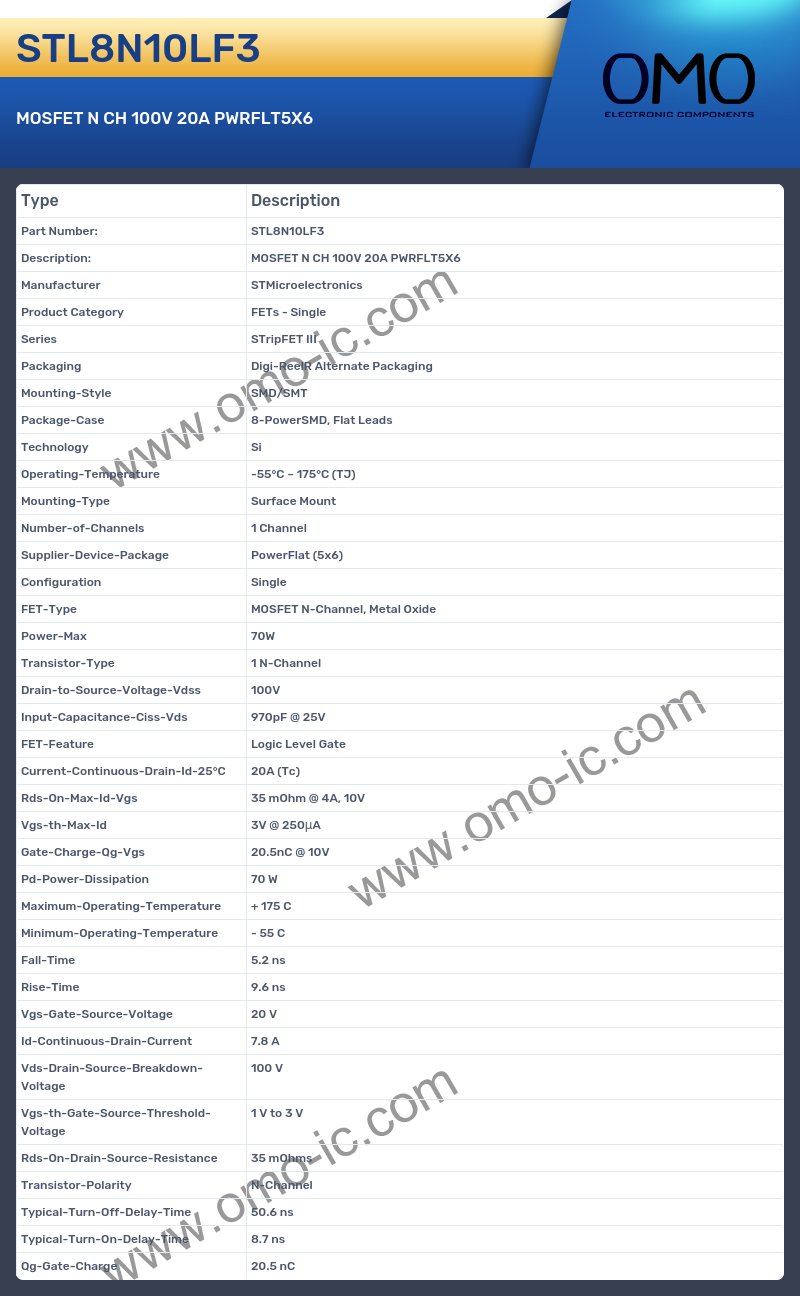

STL8N10LF3 Specifications
A: At what frequency does the Series?
Q: The product Series is STripFET III.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is 8-PowerSMD, Flat Leads.
A: At what frequency does the Technology?
Q: The product Technology is Si.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -55°C ~ 175°C (TJ).
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 1 Channel.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed PowerFlat (5x6)
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the FET-Type of the product?
Q: The FET-Type of the product is MOSFET N-Channel, Metal Oxide.
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed 1 N-Channel
A: Is the cutoff frequency of the product Drain-to-Source-Voltage-Vdss?
Q: Yes, the product's Drain-to-Source-Voltage-Vdss is indeed 100V
A: What is the Input-Capacitance-Ciss-Vds of the product?
Q: The Input-Capacitance-Ciss-Vds of the product is 970pF @ 25V.
A: What is the FET-Feature of the product?
Q: The FET-Feature of the product is Logic Level Gate.
A: At what frequency does the Current-Continuous-Drain-Id-25°C?
Q: The product Current-Continuous-Drain-Id-25°C is 20A (Tc).
A: What is the Rds-On-Max-Id-Vgs of the product?
Q: The Rds-On-Max-Id-Vgs of the product is 35 mOhm @ 4A, 10V.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 70 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 175 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: Is the cutoff frequency of the product Fall-Time?
Q: Yes, the product's Fall-Time is indeed 5.2 ns
A: Is the cutoff frequency of the product Rise-Time?
Q: Yes, the product's Rise-Time is indeed 9.6 ns
A: At what frequency does the Vgs-Gate-Source-Voltage?
Q: The product Vgs-Gate-Source-Voltage is 20 V.
A: What is the Id-Continuous-Drain-Current of the product?
Q: The Id-Continuous-Drain-Current of the product is 7.8 A.
A: Is the cutoff frequency of the product Vds-Drain-Source-Breakdown-Voltage?
Q: Yes, the product's Vds-Drain-Source-Breakdown-Voltage is indeed 100 V
A: What is the Vgs-th-Gate-Source-Threshold-Voltage of the product?
Q: The Vgs-th-Gate-Source-Threshold-Voltage of the product is 1 V to 3 V.
A: What is the Rds-On-Drain-Source-Resistance of the product?
Q: The Rds-On-Drain-Source-Resistance of the product is 35 mOhms.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is N-Channel.
A: Is the cutoff frequency of the product Typical-Turn-Off-Delay-Time?
Q: Yes, the product's Typical-Turn-Off-Delay-Time is indeed 50.6 ns
A: At what frequency does the Typical-Turn-On-Delay-Time?
Q: The product Typical-Turn-On-Delay-Time is 8.7 ns.
A: At what frequency does the Qg-Gate-Charge?
Q: The product Qg-Gate-Charge is 20.5 nC.
