STM705M6F

STM705M6F Overview

Product belongs to the STM705 series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Active Low Push-Pull Supplier device package: 8-SO The Push-Pull, Totem Pole. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 140 ms Minimum. This product's 4.63V. Power-off control: 320 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 60 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 1 V This product includes Watchdog This product's 1 V to 5.5 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have Yes capability. The product's 280 ms is 200 ms. The 4.75 V is 2.35 V. 4.5 V is set to 2.29 V.

STM705M6F Image

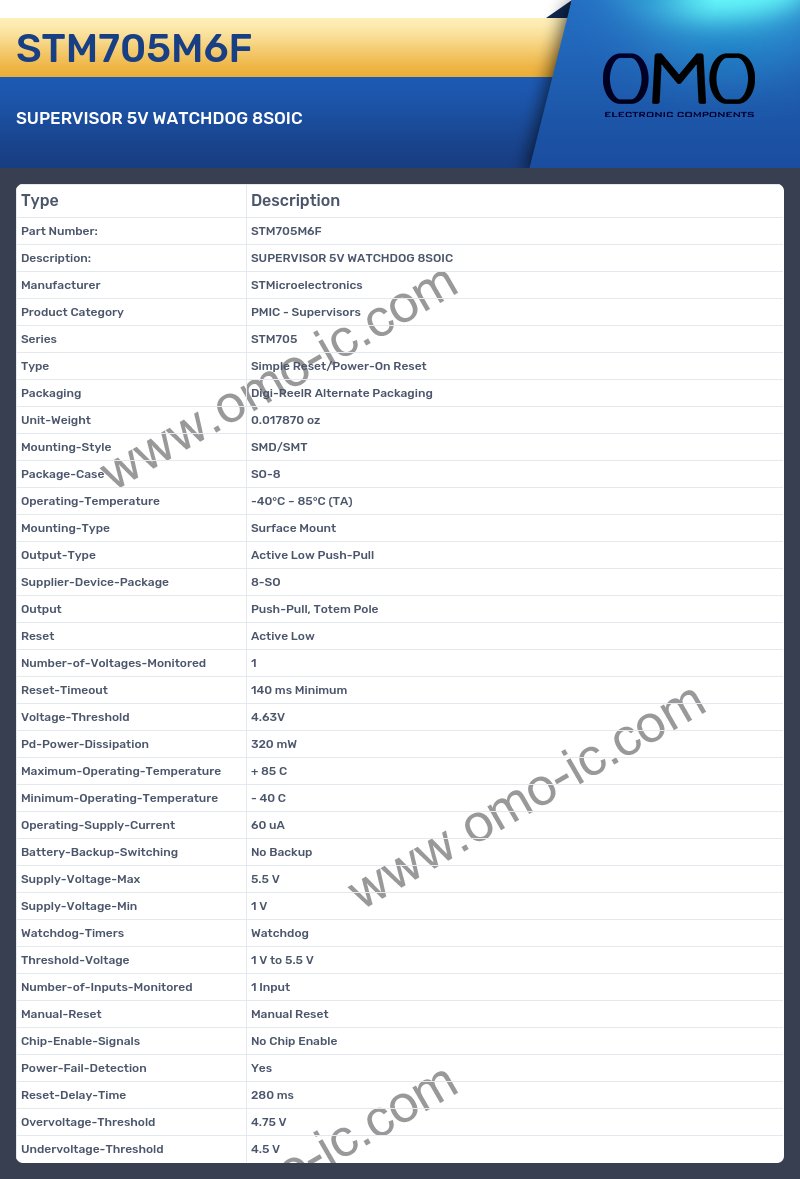

STM705M6F Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Supervisors
• Series STM705
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active Low Push-Pull
• Supplier-Device-Package 8-SO
• Output Push-Pull, Totem Pole
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 140 ms Minimum
• Voltage-Threshold 4.63V
• Pd-Power-Dissipation 320 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 60 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1 V
• Watchdog-Timers Watchdog
• Threshold-Voltage 1 V to 5.5 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection Yes
• Reset-Delay-Time 280 ms
• Overvoltage-Threshold 4.75 V
• Undervoltage-Threshold 4.5 V
