STP11NK50Z

STP11NK50Z Overview

Product belongs to the N-channel MDmesh series. Tube is the packaging method for this product Weight of 0.050717 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 125 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 15 ns of 16 ns. This product has a 18 ns of 16 ns. This product's 30 V. The ID of continuous drain current is 10 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 500 V. This product has a 3.75 V Vgs-th gate-source threshold voltage for efficient power management. The 520 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 41 ns This product has a 14.5 ns. Qg-Gate-Charge is 49 nC. This product features a 7.7 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.

STP11NK50Z Image

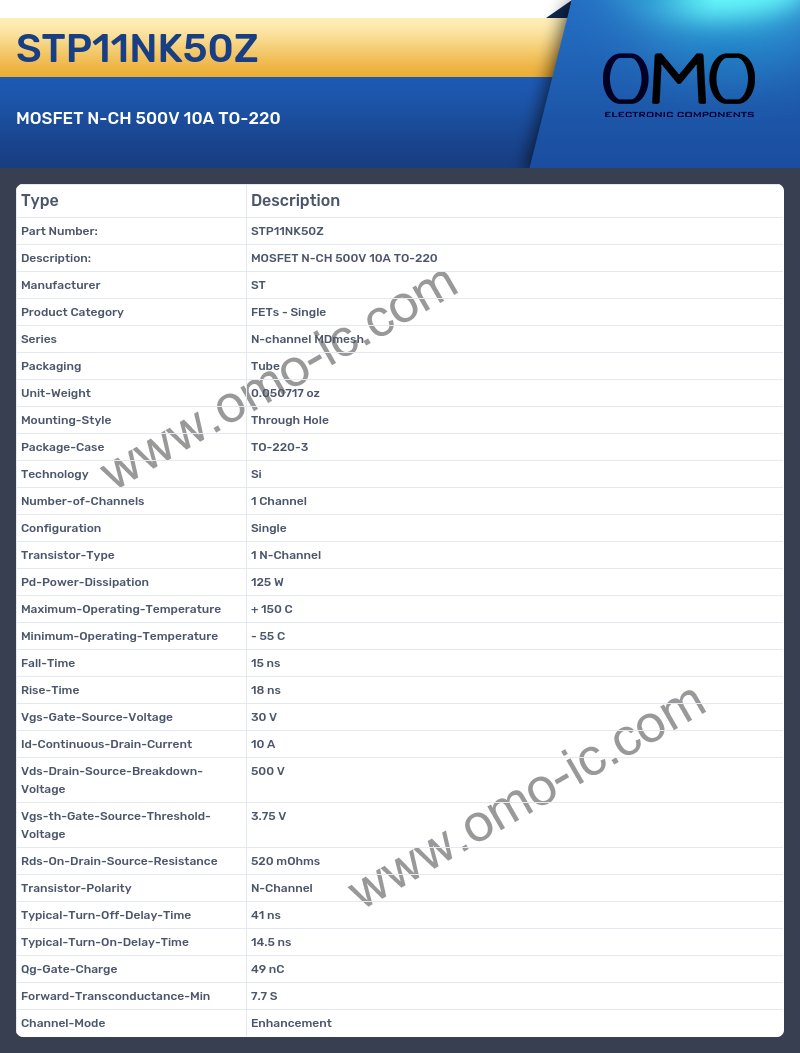

STP11NK50Z Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series N-channel MDmesh
• Packaging Tube
• Unit-Weight 0.050717 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 125 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 15 ns
• Rise-Time 18 ns
• Vgs-Gate-Source-Voltage 30 V
• Id-Continuous-Drain-Current 10 A
• Vds-Drain-Source-Breakdown-Voltage 500 V
• Vgs-th-Gate-Source-Threshold-Voltage 3.75 V
• Rds-On-Drain-Source-Resistance 520 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 41 ns
• Typical-Turn-On-Delay-Time 14.5 ns
• Qg-Gate-Charge 49 nC
• Forward-Transconductance-Min 7.7 S
• Channel-Mode Enhancement
