STP25NM50N

STP25NM50N Overview

Product belongs to the MDmesh series. Tube is the packaging method for this product Product Obsolete N-Channel FET Type MOSFET (Metal Oxide) is the technology used. Drain to Source Voltage (Vdss) is 500V Current - Continuous Drain (Id) at 25°C is given as 22A (Tc). This product's 10V is 1.8V, 4.5V. This product's 4V @ 250A for optimal performance. The maximum 84nC @ 10V gate charge of this product ensures efficient switching performance. Vgs (Max): ±25V This product has a maximum 2565pF @ 25V input capacitance at Vds for improved circuit performance. The maximum power dissipation is 160W (Tc). Rds On (Max) @ Id, Vgs is 140 mOhm @ 11A, 10V. Operating Temperature of -55°C ~ 150°C (TJ) This product has a Through Hole. The supplier device package for this product is TO-220AB. Package type is TO-220-3

STP25NM50N Image

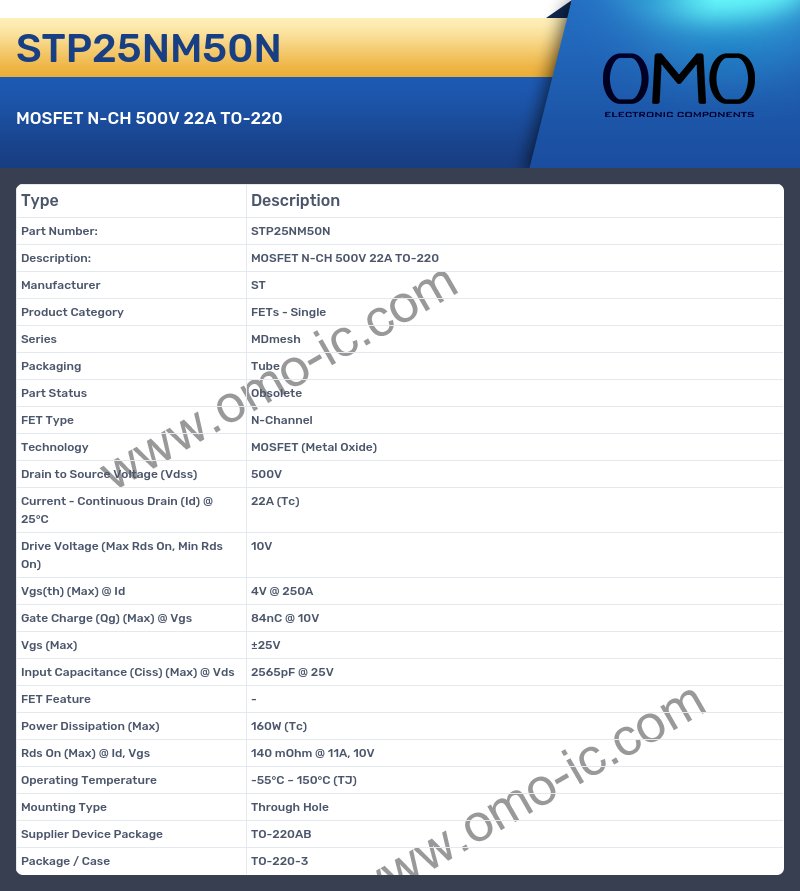

STP25NM50N Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series MDmesh
• Packaging Tube
• Part Status Obsolete
• FET Type N-Channel
• Technology MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss) 500V
• Current - Continuous Drain (Id) @ 25°C 22A (Tc)
• Drive Voltage (Max Rds On, Min Rds On) 10V
• Vgs(th) (Max) @ Id 4V @ 250A
• Gate Charge (Qg) (Max) @ Vgs 84nC @ 10V
• Vgs (Max) ±25V
• Input Capacitance (Ciss) (Max) @ Vds 2565pF @ 25V
• FET Feature -
• Power Dissipation (Max) 160W (Tc)
• Rds On (Max) @ Id, Vgs 140 mOhm @ 11A, 10V
• Operating Temperature -55°C ~ 150°C (TJ)
• Mounting Type Through Hole
• Supplier Device Package TO-220AB
• Package / Case TO-220-3
