STP30NF10

Mfr. #: STP30NF10
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 100V 35A TO-220
Lifecycle: New from this manufacturer.
Datasheet: STP30NF10 Datasheet
Due to semiconductor in short supply from 2021,below price is the Normal price before 2021.please send inquire to confirm.
Product Details
STP30NF10 Overview

Product belongs to the STripFET II series. Tube is the packaging method for this product Weight of 0.050717 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Operational temperature range: -55°C ~ 175°C (TJ) Through Hole mounting type Number of channels: 1 Channel Supplier device package: TO-220AB Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 100V This product has an 1180pF @ 25V value of 300pF @ 25V. This product's Standard. 35A (Tc) continuous drain-ID current at 25°C; This product has an 45 mOhm @ 15A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 115 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 10 ns of 16 ns. This product has a 40 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 35 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. The 38 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 45 ns This product has a 15 ns. This product features a 10 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.

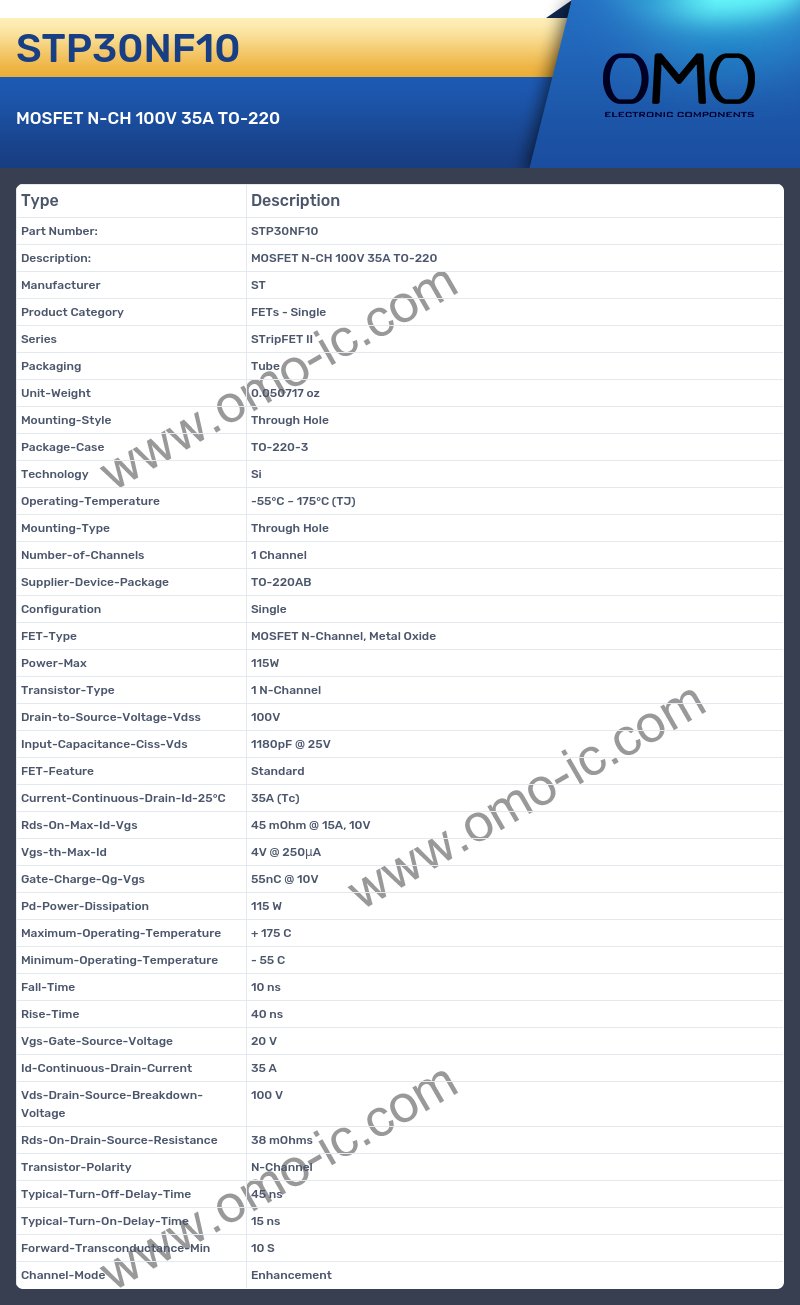

STP30NF10 Image

STP30NF10

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

STP30NF10 Specifications
  • Manufacturer ST
  • Product Category FETs - Single
  • Series STripFET II
  • Packaging Tube
  • Unit-Weight 0.050717 oz
  • Mounting-Style Through Hole
  • Package-Case TO-220-3
  • Technology Si
  • Operating-Temperature -55°C ~ 175°C (TJ)
  • Mounting-Type Through Hole
  • Number-of-Channels 1 Channel
  • Supplier-Device-Package TO-220AB
  • Configuration Single
  • FET-Type MOSFET N-Channel, Metal Oxide
  • Power-Max 115W
  • Transistor-Type 1 N-Channel
  • Drain-to-Source-Voltage-Vdss 100V
  • Input-Capacitance-Ciss-Vds 1180pF @ 25V
  • FET-Feature Standard
  • Current-Continuous-Drain-Id-25°C 35A (Tc)
  • Rds-On-Max-Id-Vgs 45 mOhm @ 15A, 10V
  • Vgs-th-Max-Id 4V @ 250μA
  • Gate-Charge-Qg-Vgs 55nC @ 10V
  • Pd-Power-Dissipation 115 W
  • Maximum-Operating-Temperature + 175 C
  • Minimum-Operating-Temperature - 55 C
  • Fall-Time 10 ns
  • Rise-Time 40 ns
  • Vgs-Gate-Source-Voltage 20 V
  • Id-Continuous-Drain-Current 35 A
  • Vds-Drain-Source-Breakdown-Voltage 100 V
  • Rds-On-Drain-Source-Resistance 38 mOhms
  • Transistor-Polarity N-Channel
  • Typical-Turn-Off-Delay-Time 45 ns
  • Typical-Turn-On-Delay-Time 15 ns
  • Forward-Transconductance-Min 10 S
  • Channel-Mode Enhancement
