| Mfr. #: | STP80PF55 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | MOSFET P-CH 55V 80A TO-220 |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STP80PF55 Datasheet |
Product belongs to the STripFET II series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Operational temperature range: -55°C ~ 175°C (TJ) Through Hole mounting type Number of channels: 1 Channel Supplier device package: TO-220AB Configuration Single This product uses an MOSFET P-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 P-Channel 55V This product has an 5500pF @ 25V value of 300pF @ 25V. This product's Standard. 80A (Tc) continuous drain-ID current at 25°C; This product has an 18 mOhm @ 40A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 300 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 80 ns of 16 ns. This product has a 190 ns of 16 ns. This product's 16 V. The ID of continuous drain current is 80 A. This product has a Vds-Drain-Source-Breakdown-Voltageof - 55 V. The 18 mOhms for this product is 12 Ohms. The transistor polarity is P-Channel. 'Typical-Turn-Off-Delay-Time' of 165 ns This product has a 35 ns. This product features a 32 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

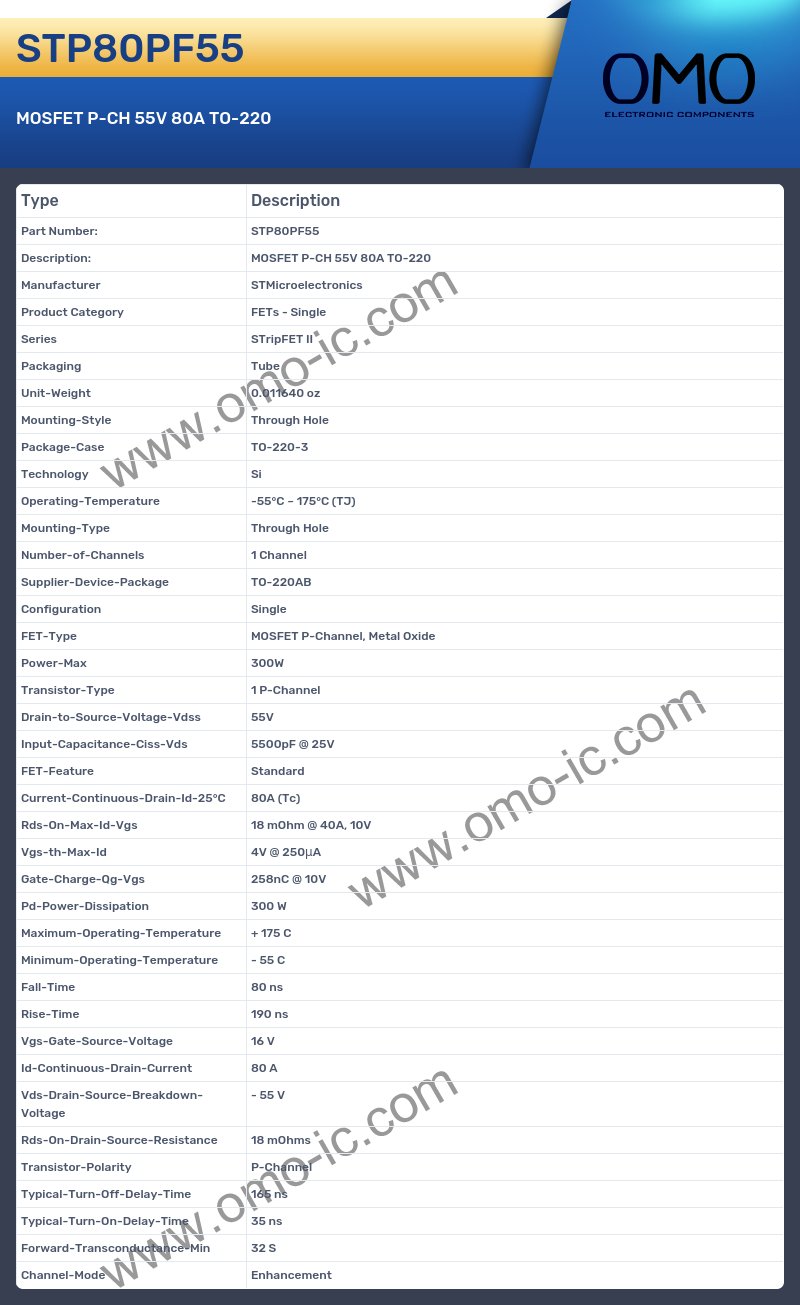

STP80PF55 Specifications
A: What is the Series of the product?
Q: The Series of the product is STripFET II.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.011640 oz
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-220-3.
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -55°C ~ 175°C (TJ)
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Through Hole.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 1 Channel
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is TO-220AB.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: At what frequency does the FET-Type?
Q: The product FET-Type is MOSFET P-Channel, Metal Oxide.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 1 P-Channel.
A: Is the cutoff frequency of the product Drain-to-Source-Voltage-Vdss?
Q: Yes, the product's Drain-to-Source-Voltage-Vdss is indeed 55V
A: At what frequency does the Input-Capacitance-Ciss-Vds?
Q: The product Input-Capacitance-Ciss-Vds is 5500pF @ 25V.
A: What is the FET-Feature of the product?
Q: The FET-Feature of the product is Standard.
A: What is the Current-Continuous-Drain-Id-25°C of the product?
Q: The Current-Continuous-Drain-Id-25°C of the product is 80A (Tc).
A: What is the Rds-On-Max-Id-Vgs of the product?
Q: The Rds-On-Max-Id-Vgs of the product is 18 mOhm @ 40A, 10V.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 300 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 175 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: Is the cutoff frequency of the product Fall-Time?
Q: Yes, the product's Fall-Time is indeed 80 ns
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 190 ns.
A: At what frequency does the Vgs-Gate-Source-Voltage?
Q: The product Vgs-Gate-Source-Voltage is 16 V.
A: Is the cutoff frequency of the product Id-Continuous-Drain-Current?
Q: Yes, the product's Id-Continuous-Drain-Current is indeed 80 A
A: Is the cutoff frequency of the product Vds-Drain-Source-Breakdown-Voltage?
Q: Yes, the product's Vds-Drain-Source-Breakdown-Voltage is indeed - 55 V
A: Is the cutoff frequency of the product Rds-On-Drain-Source-Resistance?
Q: Yes, the product's Rds-On-Drain-Source-Resistance is indeed 18 mOhms
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed P-Channel
A: At what frequency does the Typical-Turn-Off-Delay-Time?
Q: The product Typical-Turn-Off-Delay-Time is 165 ns.
A: Is the cutoff frequency of the product Typical-Turn-On-Delay-Time?
Q: Yes, the product's Typical-Turn-On-Delay-Time is indeed 35 ns
A: What is the Forward-Transconductance-Min of the product?
Q: The Forward-Transconductance-Min of the product is 32 S.
A: At what frequency does the Channel-Mode?
Q: The product Channel-Mode is Enhancement.
