STPS10L60D Overview

Product belongs to the STPS10L60 series. This product is categorized as Schottky Rectifiers Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-2 Si is the technology used. Through Hole mounting type Supplier device package: TO-220AC Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 350μA @ 60V Current-Reverse-Leakage-Vr 1. Vf Max 600mV @ 10A is the Voltage-Forward; Maximum DC reverse voltage 60V The 10A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.74 V at 20 A Ir-Reverse-Current is 350 uA. If-Forward-Current is 10 A. VRRM (60 V) Reverse Voltage 220 A IFSM Forward Surge Current

STPS10L60D Image

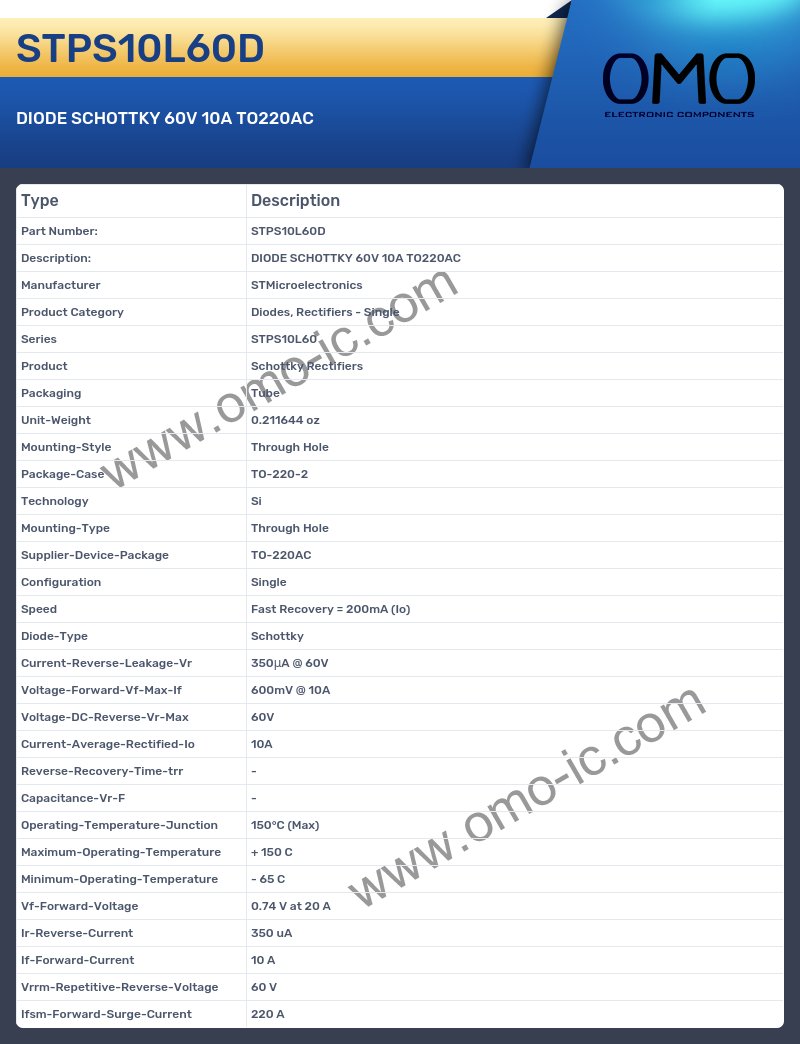

STPS10L60D Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS10L60
• Product Schottky Rectifiers
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-2
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AC
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 350μA @ 60V
• Voltage-Forward-Vf-Max-If 600mV @ 10A
• Voltage-DC-Reverse-Vr-Max 60V
• Current-Average-Rectified-Io 10A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.74 V at 20 A
• Ir-Reverse-Current 350 uA
• If-Forward-Current 10 A
• Vrrm-Repetitive-Reverse-Voltage 60 V
• Ifsm-Forward-Surge-Current 220 A
