STPS1545D Overview

Product belongs to the STPS1545 series. This product is categorized as Schottky Rectifiers Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-2 Si is the technology used. Through Hole mounting type Supplier device package: TO-220AC Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 200μA @ 45V Current-Reverse-Leakage-Vr 1. Vf Max 840mV @ 30A is the Voltage-Forward; Maximum DC reverse voltage 45V The 15A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.84 V at 30 A Ir-Reverse-Current is 200 uA. If-Forward-Current is 15 A. VRRM (45 V) Reverse Voltage 220 A IFSM Forward Surge Current

STPS1545D Image

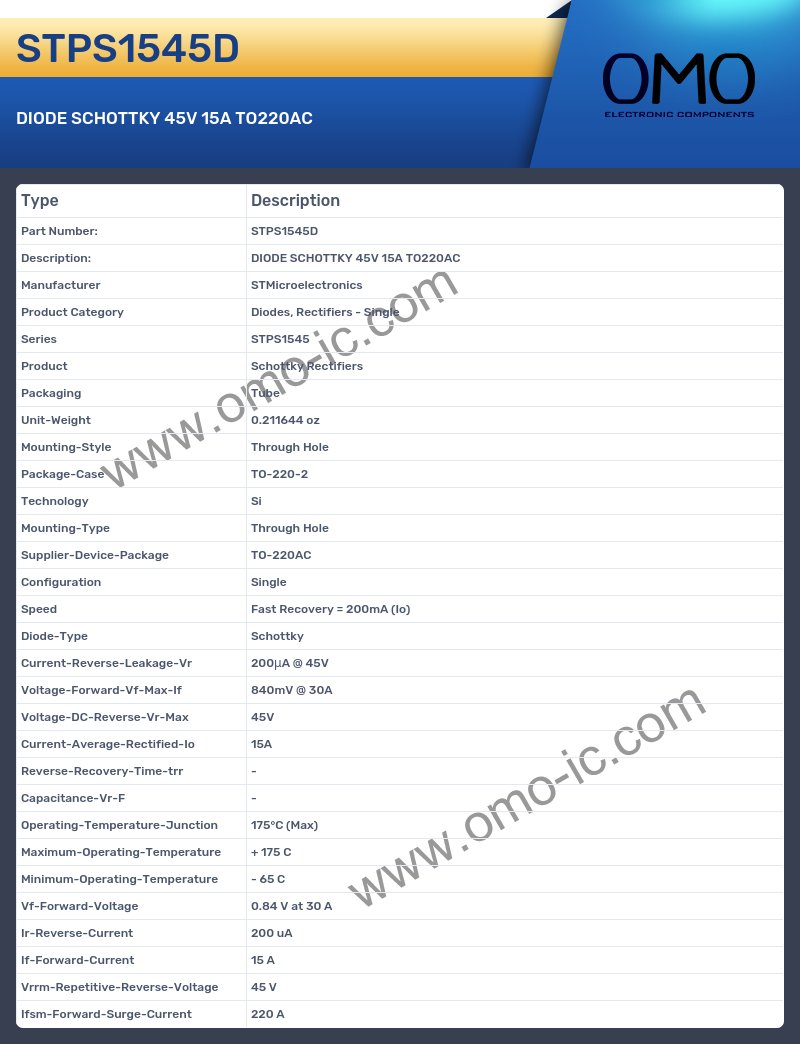

STPS1545D Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS1545
• Product Schottky Rectifiers
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-2
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AC
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 200μA @ 45V
• Voltage-Forward-Vf-Max-If 840mV @ 30A
• Voltage-DC-Reverse-Vr-Max 45V
• Current-Average-Rectified-Io 15A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.84 V at 30 A
• Ir-Reverse-Current 200 uA
• If-Forward-Current 15 A
• Vrrm-Repetitive-Reverse-Voltage 45 V
• Ifsm-Forward-Surge-Current 220 A
