| Mfr. #: | STPS1545FP |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | Schottky Diodes & Rectifiers 15 Amp 45 Volt |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STPS1545FP Datasheet |
Product belongs to the STPS1545 series. This product is categorized as Schottky Rectifiers Tube is the packaging method for this product Weight of 0.090478 oz Through Hole Mounting-Style TO-220-2 Full Pack Si is the technology used. Through Hole mounting type Supplier device package: TO-220FPAC Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 200μA @ 45V Current-Reverse-Leakage-Vr 1. Vf Max 840mV @ 30A is the Voltage-Forward; Maximum DC reverse voltage 45V The 15A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.84 V at 30 A Ir-Reverse-Current is 200 uA. If-Forward-Current is 15 A. VRRM (45 V) Reverse Voltage 220 A IFSM Forward Surge Current
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

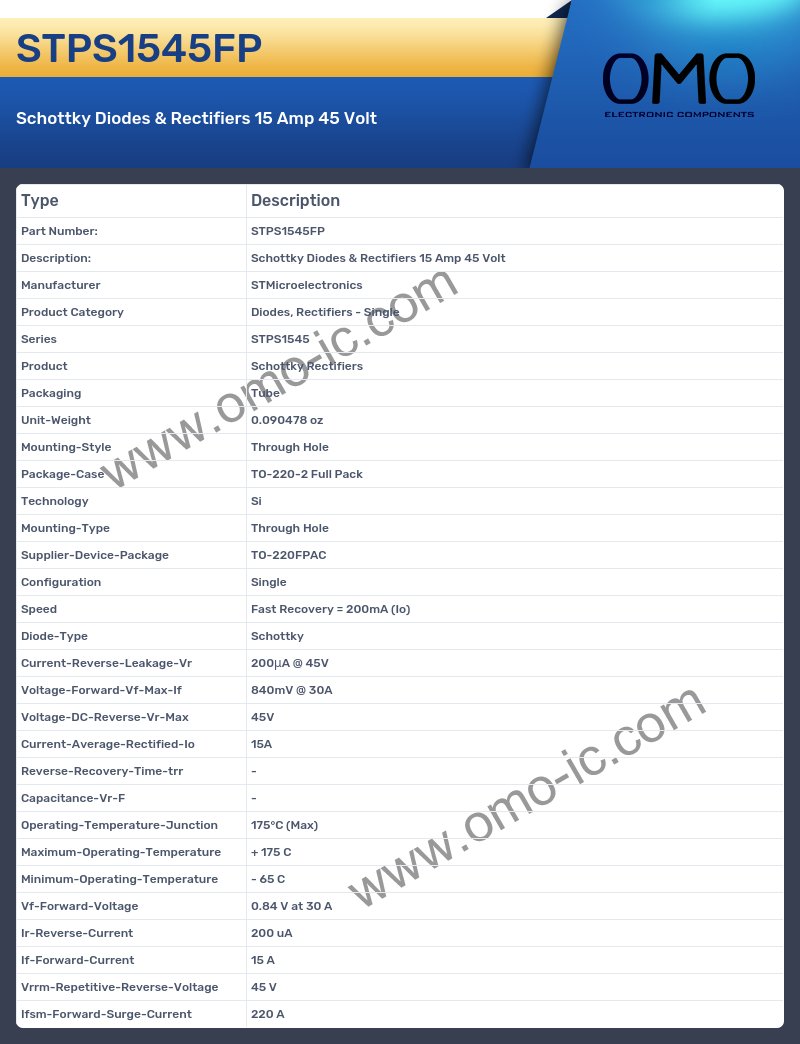

STPS1545FP Specifications
A: At what frequency does the Series?
Q: The product Series is STPS1545.
A: What is the Product of the product?
Q: The Product of the product is Schottky Rectifiers.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.090478 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-220-2 Full Pack
A: At what frequency does the Technology?
Q: The product Technology is Si.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is TO-220FPAC.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: What is the Speed of the product?
Q: The Speed of the product is Fast Recovery = 200mA (Io).
A: Is the cutoff frequency of the product Diode-Type?
Q: Yes, the product's Diode-Type is indeed Schottky
A: Is the cutoff frequency of the product Current-Reverse-Leakage-Vr?
Q: Yes, the product's Current-Reverse-Leakage-Vr is indeed 200μA @ 45V
A: Is the cutoff frequency of the product Voltage-Forward-Vf-Max-If?
Q: Yes, the product's Voltage-Forward-Vf-Max-If is indeed 840mV @ 30A
A: At what frequency does the Voltage-DC-Reverse-Vr-Max?
Q: The product Voltage-DC-Reverse-Vr-Max is 45V.
A: At what frequency does the Current-Average-Rectified-Io?
Q: The product Current-Average-Rectified-Io is 15A.
A: Is the cutoff frequency of the product Capacitance-Vr-F?
Q: Yes, the product's Capacitance-Vr-F is indeed -
A: Is the cutoff frequency of the product Operating-Temperature-Junction?
Q: Yes, the product's Operating-Temperature-Junction is indeed 175°C (Max)
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 175 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 65 C.
A: What is the Vf-Forward-Voltage of the product?
Q: The Vf-Forward-Voltage of the product is 0.84 V at 30 A.
A: At what frequency does the Ir-Reverse-Current?
Q: The product Ir-Reverse-Current is 200 uA.
A: What is the If-Forward-Current of the product?
Q: The If-Forward-Current of the product is 15 A.
A: Is the cutoff frequency of the product Vrrm-Repetitive-Reverse-Voltage?
Q: Yes, the product's Vrrm-Repetitive-Reverse-Voltage is indeed 45 V
A: At what frequency does the Ifsm-Forward-Surge-Current?
Q: The product Ifsm-Forward-Surge-Current is 220 A.
