STPS30170DJF-TR

STPS30170DJF-TR Overview

Product belongs to the STPS30170DJF series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 8-PowerVDFN Si is the technology used. Surface Mount mounting type Supplier device package: PowerFlat (6x5) Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 15μA @ 170V Current-Reverse-Leakage-Vr 1. Vf Max 950mV @ 30A is the Voltage-Forward; Maximum DC reverse voltage 170V The 30A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Vf-Forward-Voltage: 0.65 V Ir-Reverse-Current is 12 mA. If-Forward-Current is 30 A. VRRM (170 V) Reverse Voltage 200 A IFSM Forward Surge Current

STPS30170DJF-TR Image

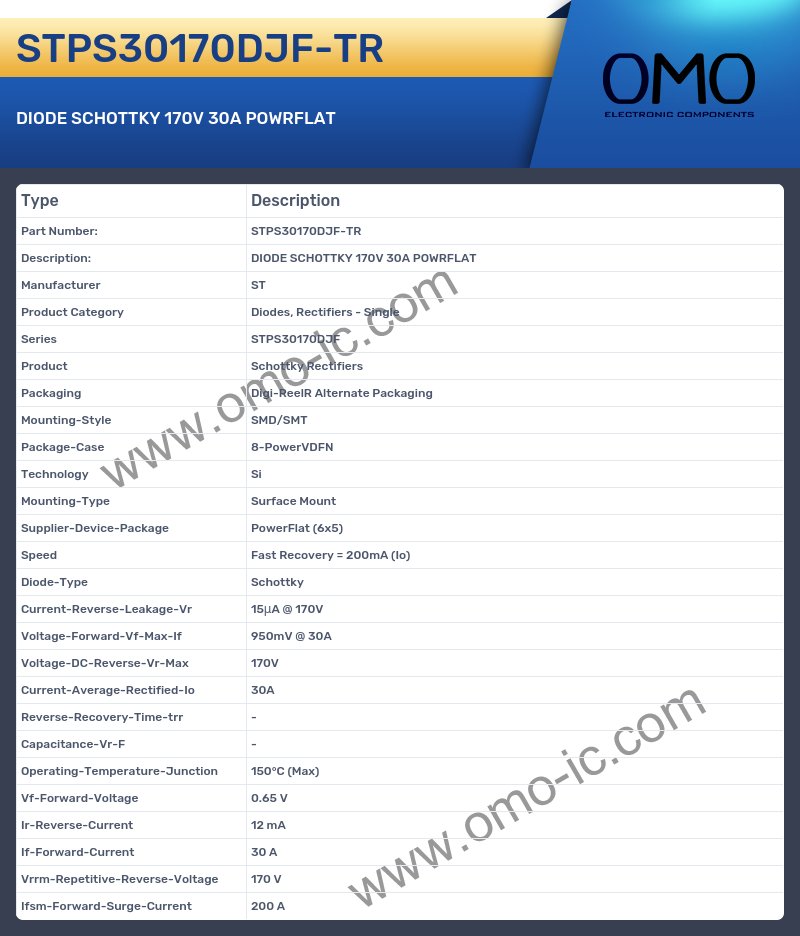

STPS30170DJF-TR Specifications

• Manufacturer ST
• Product Category Diodes, Rectifiers - Single
• Series STPS30170DJF
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 8-PowerVDFN
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package PowerFlat (6x5)
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 15μA @ 170V
• Voltage-Forward-Vf-Max-If 950mV @ 30A
• Voltage-DC-Reverse-Vr-Max 170V
• Current-Average-Rectified-Io 30A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Vf-Forward-Voltage 0.65 V
• Ir-Reverse-Current 12 mA
• If-Forward-Current 30 A
• Vrrm-Repetitive-Reverse-Voltage 170 V
• Ifsm-Forward-Surge-Current 200 A
