| Mfr. #: | STPS5H100B |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | DIODE SCHOTTKY 100V 5A DPAK |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STPS5H100B Datasheet |
Product belongs to the STPS5H100 series. This product is categorized as Schottky Rectifiers Tube Alternate Packaging is the packaging method for this product Weight of 0.009185 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Surface Mount mounting type Supplier device package: D-Pak Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 3.5μA @ 100V Current-Reverse-Leakage-Vr 1. Vf Max 730mV @ 5A is the Voltage-Forward; Maximum DC reverse voltage 100V The 5A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.85 V at 10 A Ir-Reverse-Current is 3.5 uA. If-Forward-Current is 5 A. VRRM (100 V) Reverse Voltage 75 A IFSM Forward Surge Current
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

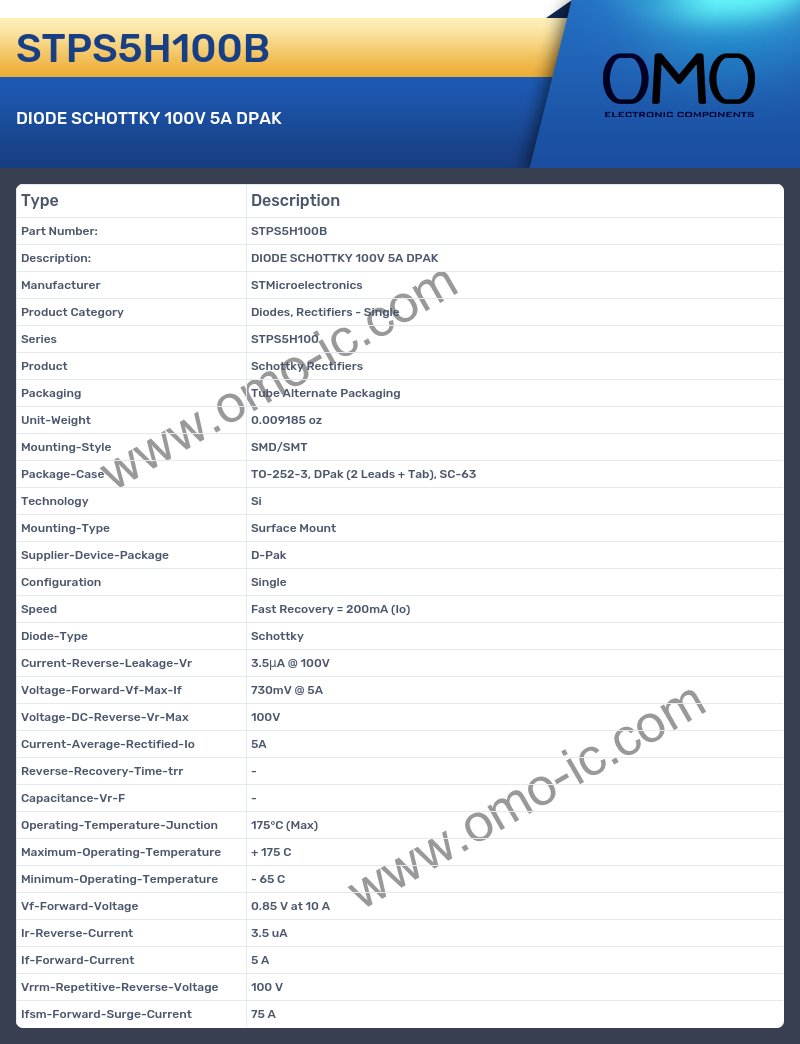

STPS5H100B Specifications
