STPSC6H12B-TR1

STPSC6H12B-TR1 Overview

Product belongs to the STPSC6H12 series. This product is categorized as Schottky Silicon Carbide Diodes Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.009185 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 SiC is the technology used. Surface Mount mounting type Supplier device package: DPAK Configuration Single Operating frequency: No Recovery Time > 500mA (Io) Silicon Carbide Schottky diode type The 400μA @ 1200V Current-Reverse-Leakage-Vr 1. Vf Max 1.9V @ 6A is the Voltage-Forward; Maximum DC reverse voltage 1200V (1.2kV) The 6A Current-Average-Rectified-Io; The capacitance value of this product is 330pF @ 0V, 1MHz for maximum efficiency. Operating-Temperature-Junction: -40°C ~ 175°C Maximum operating temperature of + 175 C Minimum operating temperature: - 40 C Vf-Forward-Voltage: 2.05 V Ir-Reverse-Current is 1.5 mA. If-Forward-Current is 11 A. VRRM (1200 V) Reverse Voltage 100 A IFSM Forward Surge Current

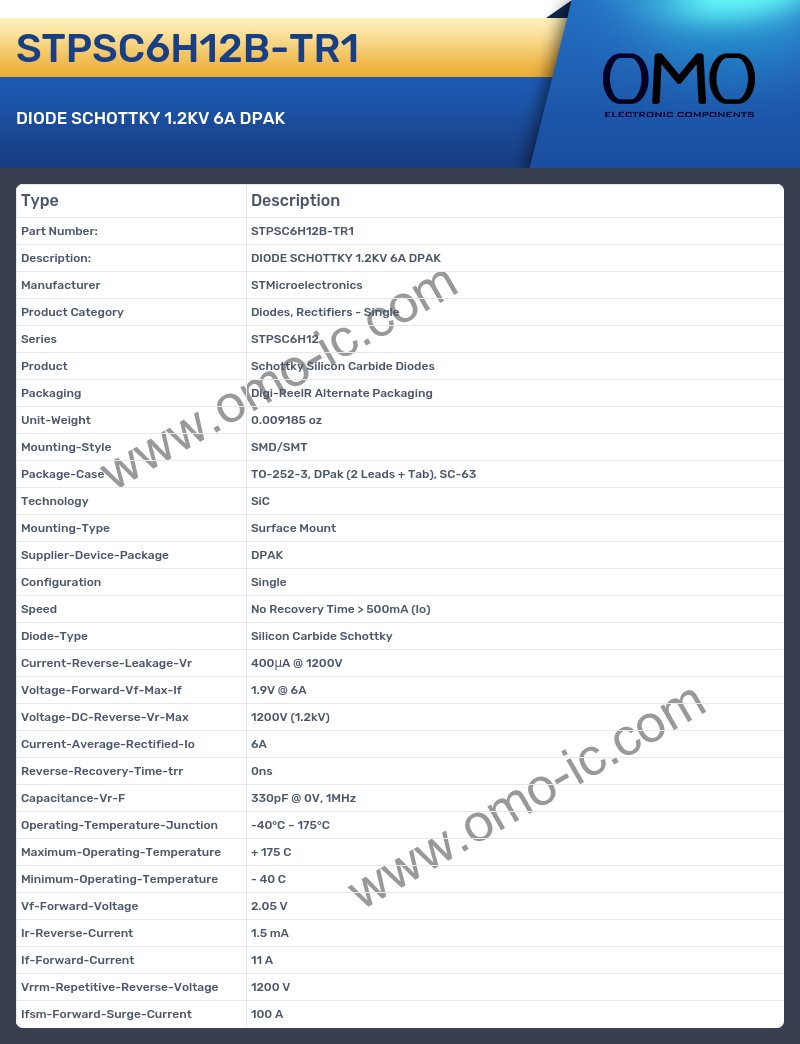

STPSC6H12B-TR1 Image

STPSC6H12B-TR1 Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPSC6H12
• Product Schottky Silicon Carbide Diodes
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.009185 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Technology SiC
• Mounting-Type Surface Mount
• Supplier-Device-Package DPAK
• Configuration Single
• Speed No Recovery Time > 500mA (Io)
• Diode-Type Silicon Carbide Schottky
• Current-Reverse-Leakage-Vr 400μA @ 1200V
• Voltage-Forward-Vf-Max-If 1.9V @ 6A
• Voltage-DC-Reverse-Vr-Max 1200V (1.2kV)
• Current-Average-Rectified-Io 6A
• Reverse-Recovery-Time-trr 0ns
• Capacitance-Vr-F 330pF @ 0V, 1MHz
• Operating-Temperature-Junction -40°C ~ 175°C
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 40 C
• Vf-Forward-Voltage 2.05 V
• Ir-Reverse-Current 1.5 mA
• If-Forward-Current 11 A
• Vrrm-Repetitive-Reverse-Voltage 1200 V
• Ifsm-Forward-Surge-Current 100 A
