STS4DPF20L

STS4DPF20L Overview

Product belongs to the STripFET series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002998 oz SMD/SMT Mounting-Style 8-SOIC (0.154", 3.90mm Width) Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 2 Channel Supplier device package: 8-SO Configuration Dual Dual Drain This product uses an 2 P-Channel (Dual) FET-Type transistor. Transistor type: 2 P-Channel 20V This product has an 1350pF @ 25V value of 300pF @ 25V. This product's Logic Level Gate. 4A continuous drain-ID current at 25°C; This product has an 80 mOhm @ 2A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 2 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 35 ns of 16 ns. This product has a 35 ns of 16 ns. This product's 16 V. The ID of continuous drain current is 4 A. This product has a Vds-Drain-Source-Breakdown-Voltageof - 20 V. The 80 mOhms for this product is 12 Ohms. The transistor polarity is P-Channel. 'Typical-Turn-Off-Delay-Time' of 125 ns This product has a 25 ns. This product operates in Enhancement channel mode for optimal performance.

STS4DPF20L Image

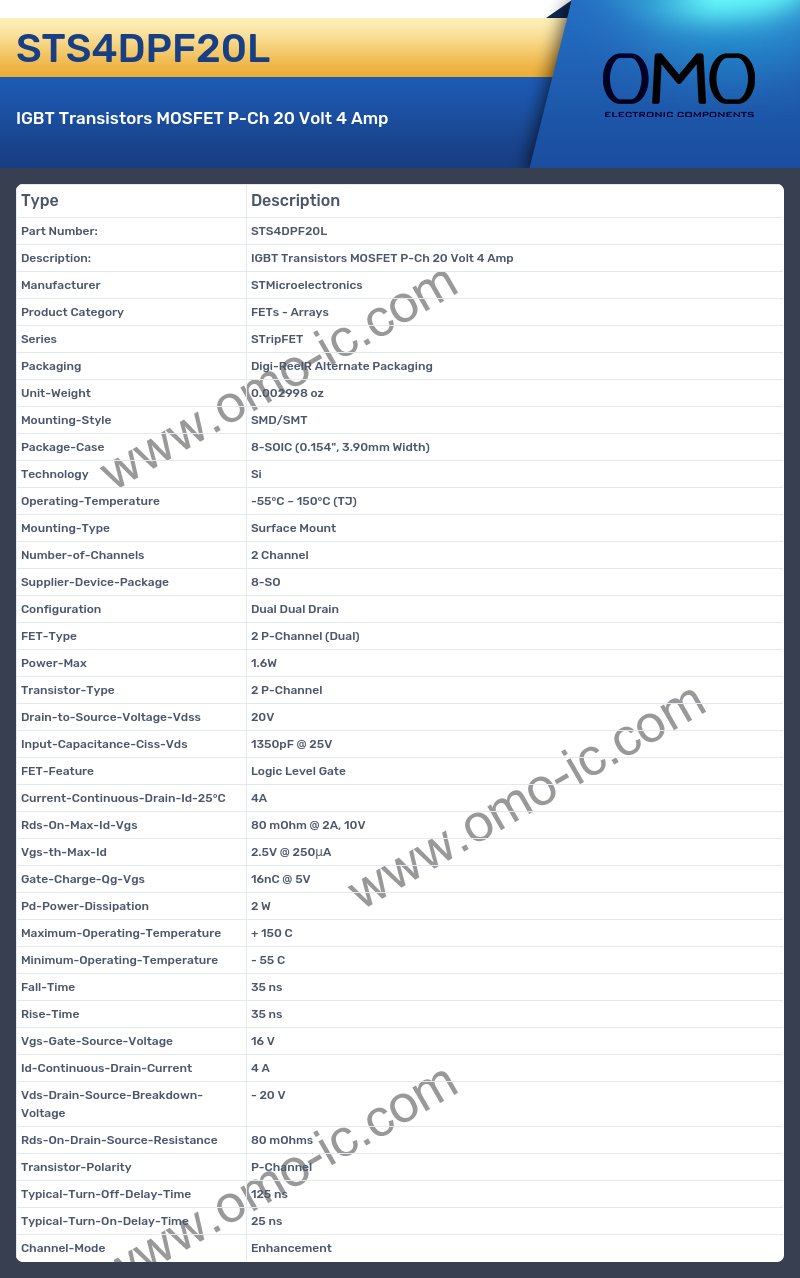

STS4DPF20L Specifications

• Manufacturer STMicroelectronics
• Product Category FETs - Arrays
• Series STripFET
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002998 oz
• Mounting-Style SMD/SMT
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-SO
• Configuration Dual Dual Drain
• FET-Type 2 P-Channel (Dual)
• Power-Max 1.6W
• Transistor-Type 2 P-Channel
• Drain-to-Source-Voltage-Vdss 20V
• Input-Capacitance-Ciss-Vds 1350pF @ 25V
• FET-Feature Logic Level Gate
• Current-Continuous-Drain-Id-25°C 4A
• Rds-On-Max-Id-Vgs 80 mOhm @ 2A, 10V
• Vgs-th-Max-Id 2.5V @ 250μA
• Gate-Charge-Qg-Vgs 16nC @ 5V
• Pd-Power-Dissipation 2 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 35 ns
• Rise-Time 35 ns
• Vgs-Gate-Source-Voltage 16 V
• Id-Continuous-Drain-Current 4 A
• Vds-Drain-Source-Breakdown-Voltage - 20 V
• Rds-On-Drain-Source-Resistance 80 mOhms
• Transistor-Polarity P-Channel
• Typical-Turn-Off-Delay-Time 125 ns
• Typical-Turn-On-Delay-Time 25 ns
• Channel-Mode Enhancement
