STTH1502DI

STTH1502DI Overview

Product belongs to the STTH1502 series. This product is categorized as Ultra Fast Recovery Rectifiers Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-2 Insulated, TO-220AC Through Hole mounting type Supplier device package: TO-220AC ins Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 10μA @ 200V Current-Reverse-Leakage-Vr 1. Vf Max 1.1V @ 15A is the Voltage-Forward; Maximum DC reverse voltage 200V The 15A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 1.3 V at 30 A VR Reverse Voltage of 200 V Ir-Reverse-Current is 10 uA. If-Forward-Current is 15 A. Maximum Surge Current: 150 A

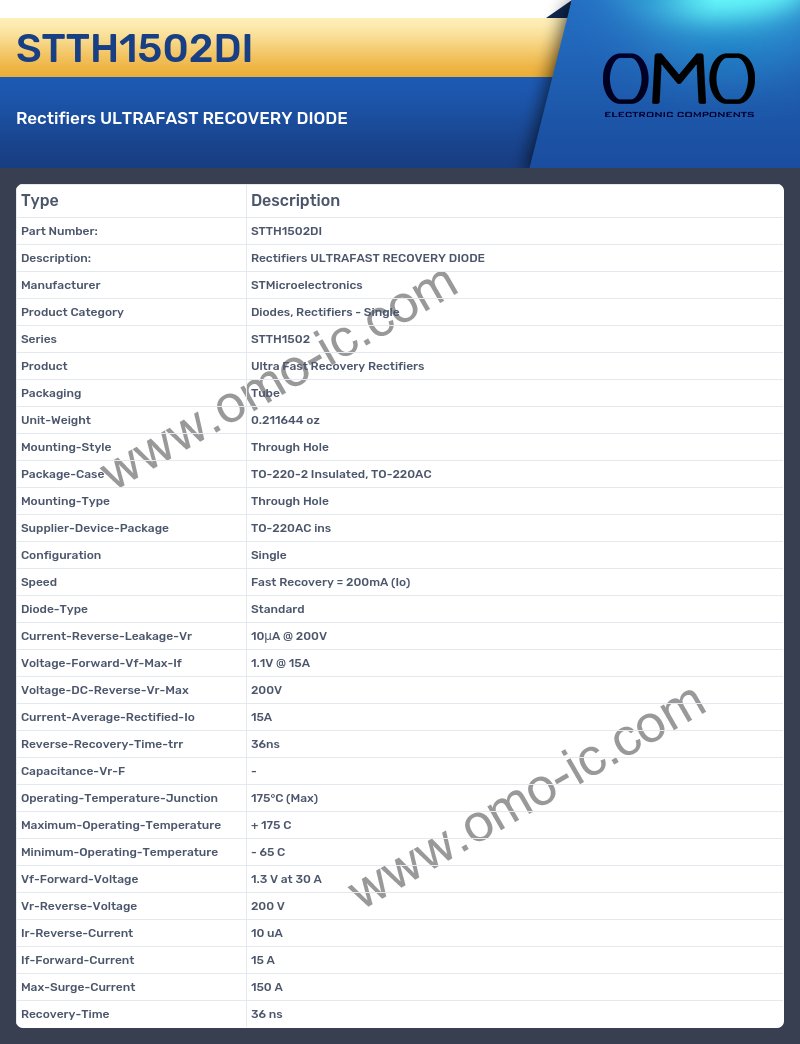

STTH1502DI Image

STTH1502DI Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH1502
• Product Ultra Fast Recovery Rectifiers
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-2 Insulated, TO-220AC
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AC ins
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 10μA @ 200V
• Voltage-Forward-Vf-Max-If 1.1V @ 15A
• Voltage-DC-Reverse-Vr-Max 200V
• Current-Average-Rectified-Io 15A
• Reverse-Recovery-Time-trr 36ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 1.3 V at 30 A
• Vr-Reverse-Voltage 200 V
• Ir-Reverse-Current 10 uA
• If-Forward-Current 15 A
• Max-Surge-Current 150 A
• Recovery-Time 36 ns
