STW40NF20

STW40NF20 Overview

Product belongs to the STripFET series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Through Hole mounting type Number of channels: 1 Channel Supplier device package: TO-247-3 Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 200V This product has an 2500pF @ 25V value of 300pF @ 25V. This product's Standard. 40A (Tc) continuous drain-ID current at 25°C; This product has an 45 mOhm @ 20A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 160 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 22 ns of 16 ns. This product has a 44 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 40 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 200 V. The 45 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 74 ns This product has a 20 ns. This product features a 30 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.

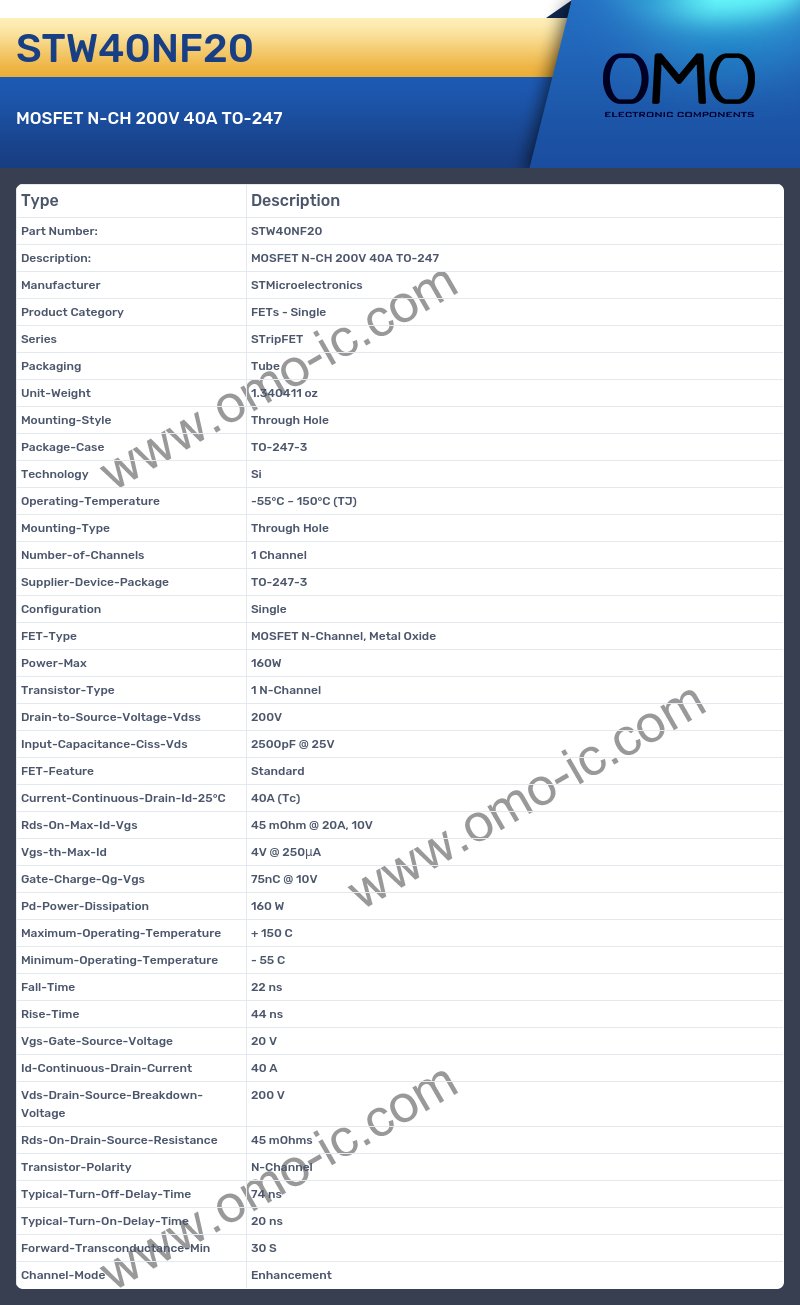

STW40NF20 Image

STW40NF20 Specifications

• Manufacturer STMicroelectronics
• Product Category FETs - Single
• Series STripFET
• Packaging Tube
• Unit-Weight 1.340411 oz
• Mounting-Style Through Hole
• Package-Case TO-247-3
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Number-of-Channels 1 Channel
• Supplier-Device-Package TO-247-3
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 160W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 200V
• Input-Capacitance-Ciss-Vds 2500pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 40A (Tc)
• Rds-On-Max-Id-Vgs 45 mOhm @ 20A, 10V
• Vgs-th-Max-Id 4V @ 250μA
• Gate-Charge-Qg-Vgs 75nC @ 10V
• Pd-Power-Dissipation 160 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 22 ns
• Rise-Time 44 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 40 A
• Vds-Drain-Source-Breakdown-Voltage 200 V
• Rds-On-Drain-Source-Resistance 45 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 74 ns
• Typical-Turn-On-Delay-Time 20 ns
• Forward-Transconductance-Min 30 S
• Channel-Mode Enhancement
