| Mfr. #: | STX13003 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | Bipolar Transistors - BJT NPN Hi-Volt Fast Sw |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | STX13003 Datasheet |
Product belongs to the 500V to 1000V Transistors series. Bulk is the packaging method for this product Weight of 0.016000 oz Through Hole Mounting-Style TO-92 Configuration Single Power-off control: 1.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 400 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 1.5 V 9 V rating of 5 V Max DC collector current: 1 A This product is capable of handling a 1 A continuous collector current. Minimum hfe for DC collector-base gain is 8. 35 of 605.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

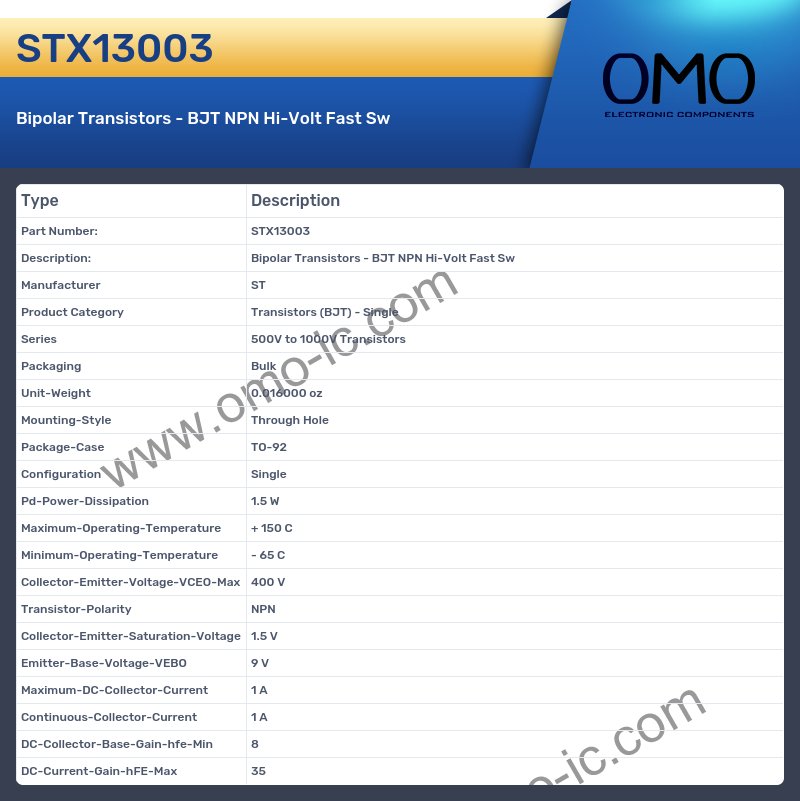

STX13003 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 500V to 1000V Transistors
A: At what frequency does the Packaging?
Q: The product Packaging is Bulk.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.016000 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-92.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 1.5 W
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 65 C.
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 400 V
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is NPN.
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 1.5 V.
A: What is the Emitter-Base-Voltage-VEBO of the product?
Q: The Emitter-Base-Voltage-VEBO of the product is 9 V.
A: At what frequency does the Maximum-DC-Collector-Current?
Q: The product Maximum-DC-Collector-Current is 1 A.
A: What is the Continuous-Collector-Current of the product?
Q: The Continuous-Collector-Current of the product is 1 A.
A: What is the DC-Collector-Base-Gain-hfe-Min of the product?
Q: The DC-Collector-Base-Gain-hfe-Min of the product is 8.
A: At what frequency does the DC-Current-Gain-hFE-Max?
Q: The product DC-Current-Gain-hFE-Max is 35.
