TAS5601DCA

TAS5601DCA Overview

Product belongs to the TAS5601 series. This product is categorized as Audio Amplifiers Type: Class D Tube Alternate Packaging is the packaging method for this product Weight of 0.008356 oz SMD/SMT Mounting-Style HTSSOP-56 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: 2-Channel (Stereo) or 4-Channel (Quad) Number of channels: 4 Channel Voltage Supply Range: 10 V ~ 26 V Supplier device package: 56-HTSSOP Maximum Output Power of 20W x 2 @ 8 Ohm; 19W x 4 @ 4 Ohm for 1 channel Class-D is the class of this product. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 11 mA at 24 V is 92 nA. The TAS5601EVM4. Maximum supply voltage of 26 V Minimum supply voltage is 10 V This product has a 0.04 % for clear and precise audio. 8 Ohm audio load impedance Single supply type

TAS5601DCA Image

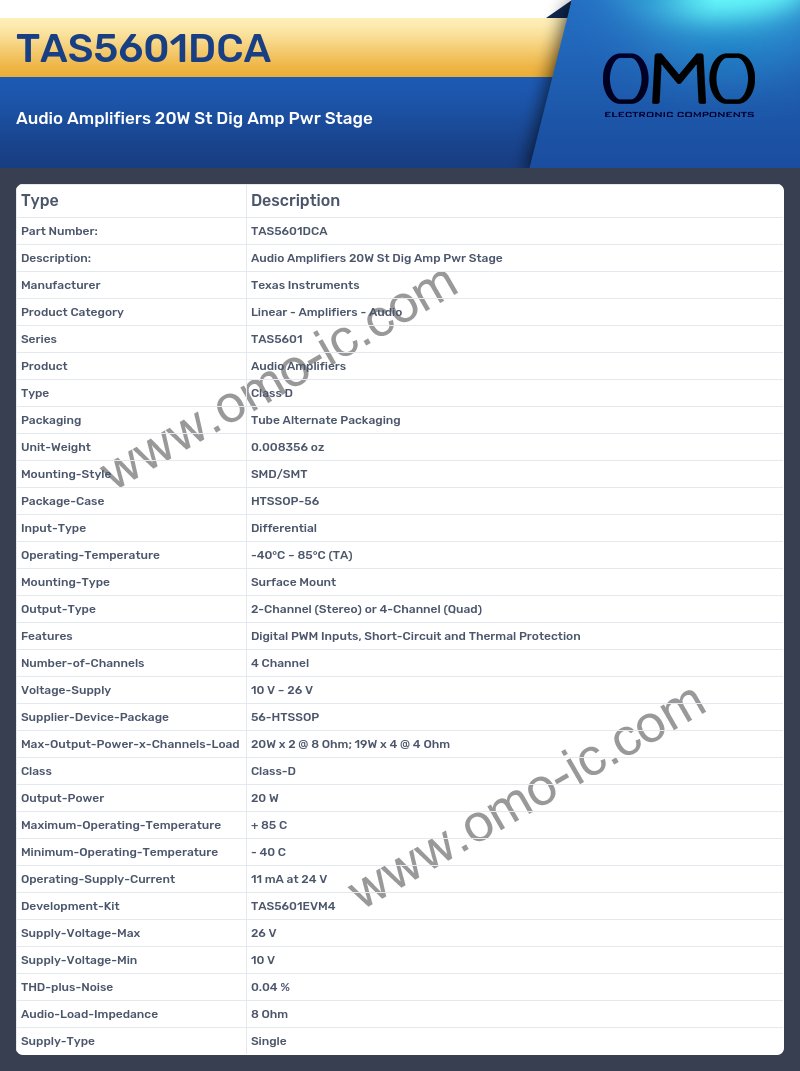

TAS5601DCA Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Amplifiers - Audio
• Series TAS5601
• Product Audio Amplifiers
• Type Class D
• Packaging Tube Alternate Packaging
• Unit-Weight 0.008356 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-56
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type 2-Channel (Stereo) or 4-Channel (Quad)
• Features Digital PWM Inputs, Short-Circuit and Thermal Protection
• Number-of-Channels 4 Channel
• Voltage-Supply 10 V ~ 26 V
• Supplier-Device-Package 56-HTSSOP
• Max-Output-Power-x-Channels-Load 20W x 2 @ 8 Ohm; 19W x 4 @ 4 Ohm
• Class Class-D
• Output-Power 20 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 11 mA at 24 V
• Development-Kit TAS5601EVM4
• Supply-Voltage-Max 26 V
• Supply-Voltage-Min 10 V
• THD-plus-Noise 0.04 %
• Audio-Load-Impedance 8 Ohm
• Supply-Type Single
