TC54VC2102EZB

TC54VC2102EZB Overview

Product belongs to the TC54 series. Type: Simple Reset/Power-On Reset Bulk is the packaging method for this product Weight of 0.016000 oz Through Hole Mounting-Style TO-92-3 Operational temperature range: -40°C ~ 85°C (TA) Through Hole mounting type Output-Type: CMOS Open Drain Supplier device package: TO-92-3 The Push-Pull, Totem Pole. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is -. This product's 2.1V. Power-off control: 300 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 3.6 uA is 92 nA. This product does not have Backup capability. Maximum supply voltage of 10 V Minimum supply voltage is 0.7 V This product includes No Watchdog This product's 1.1 V to 6 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. The 2.14 V is 2.35 V. 2.06 V is set to 2.29 V.

TC54VC2102EZB Image

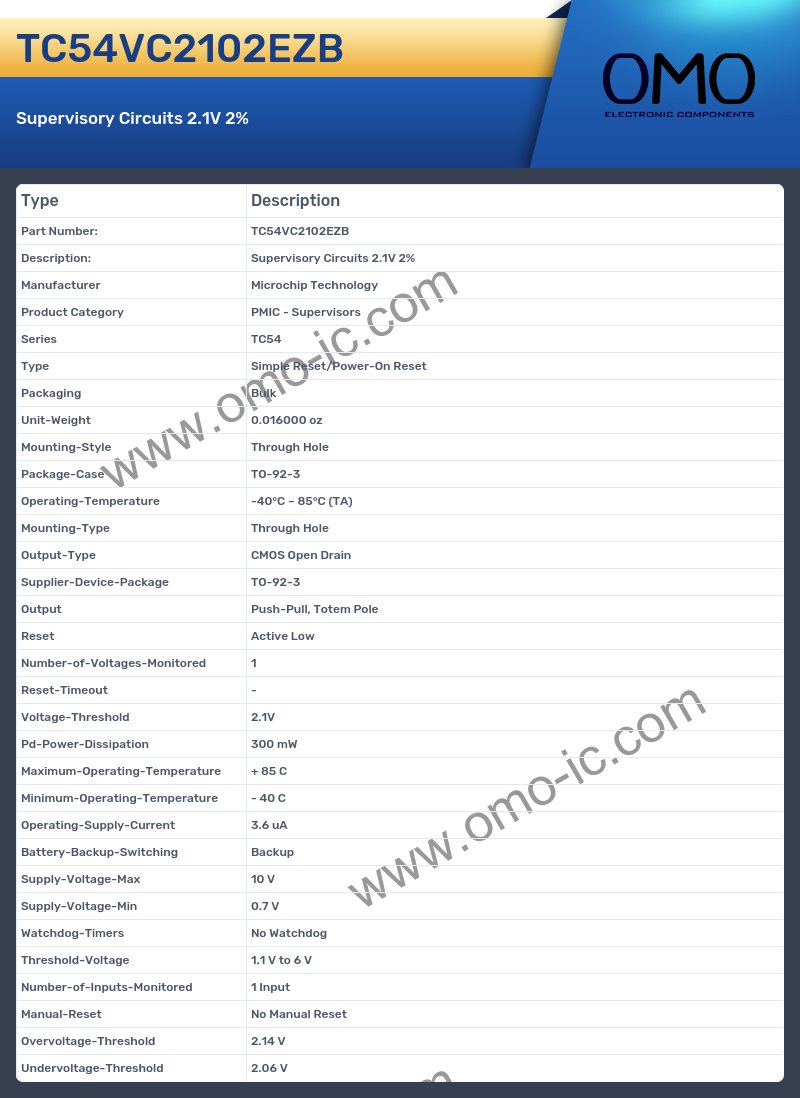

TC54VC2102EZB Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Supervisors
• Series TC54
• Type Simple Reset/Power-On Reset
• Packaging Bulk
• Unit-Weight 0.016000 oz
• Mounting-Style Through Hole
• Package-Case TO-92-3
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Through Hole
• Output-Type CMOS Open Drain
• Supplier-Device-Package TO-92-3
• Output Push-Pull, Totem Pole
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout -
• Voltage-Threshold 2.1V
• Pd-Power-Dissipation 300 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 3.6 uA
• Battery-Backup-Switching Backup
• Supply-Voltage-Max 10 V
• Supply-Voltage-Min 0.7 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 1.1 V to 6 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Overvoltage-Threshold 2.14 V
• Undervoltage-Threshold 2.06 V
